Removal - 4.0L

The IAC motor is located on the throttle body.

1. Remove air duct and air resonator box at throttle body.
2. Disconnect electrical connector from IAC motor (Figure ).
3. Remove two mounting bolts (screws) (Fig 1 ).
4. Remove IAC motor from throttle body.

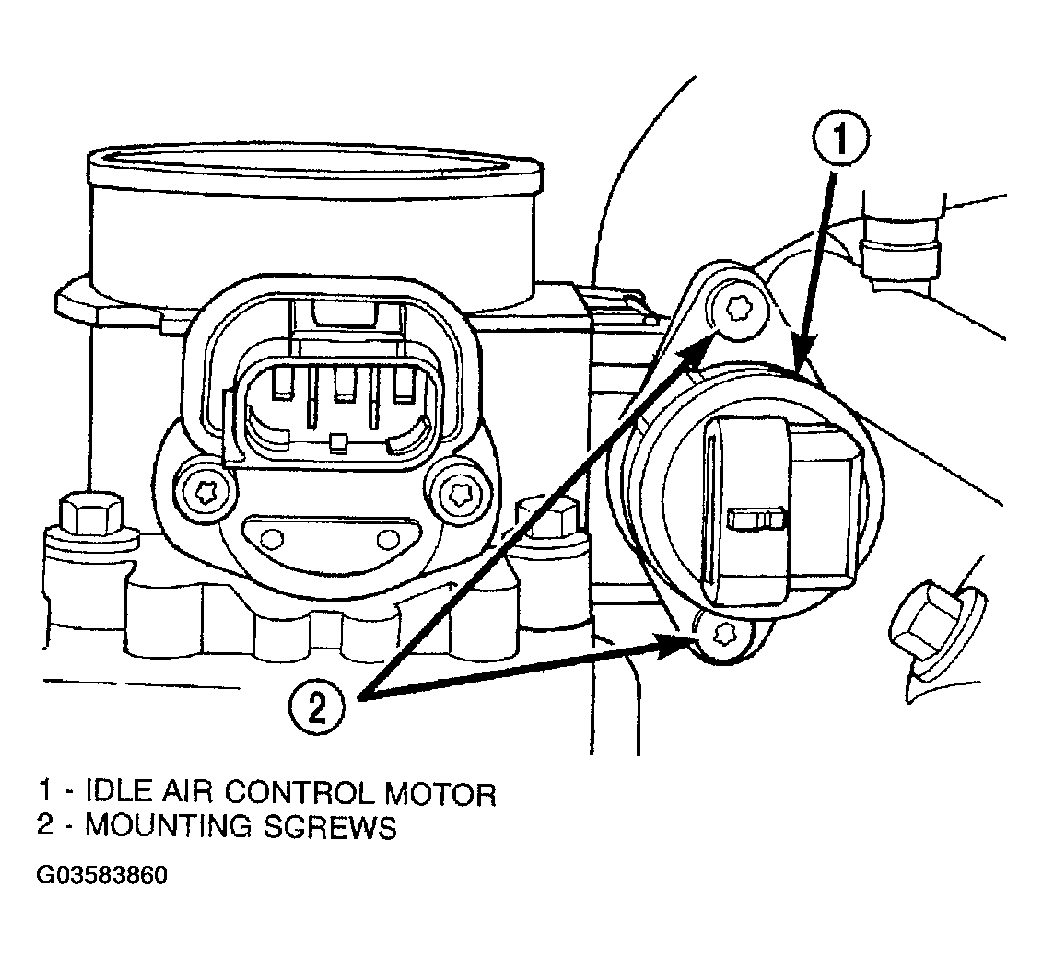

   Fig 1: Mounting Bolts (Screws ) - IAC Motor

   Courtesy of DAIMLERCHRYSLER CORP.
