Fuel Injector: Description

A separate fuel injector (Fig 1 ) is used for each individual cylinder.

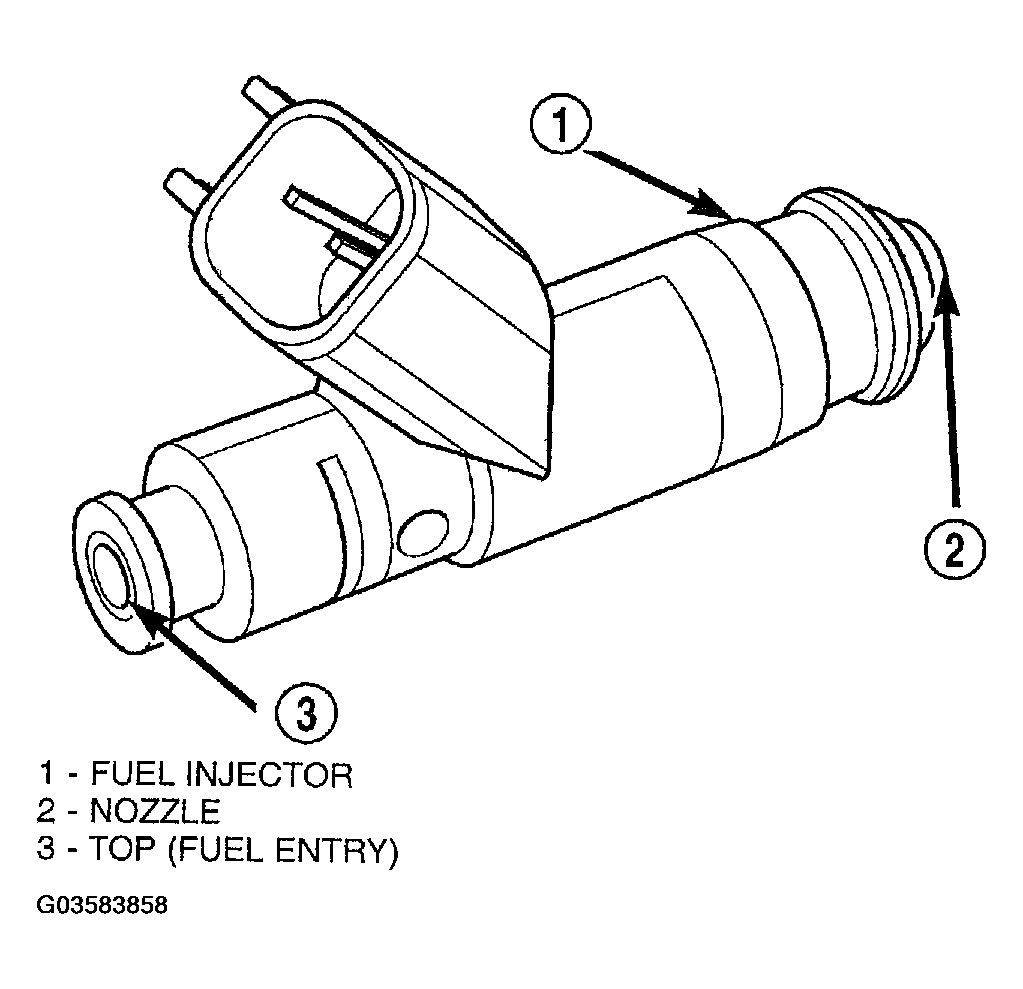

Fig 1: Fuel Injector - 4.0L/4.7L Engines

G03583858

Courtesy of DAIMLERCHRYSLER CORP.
