Powertrain Control Module C2 (Gas) Connector End View

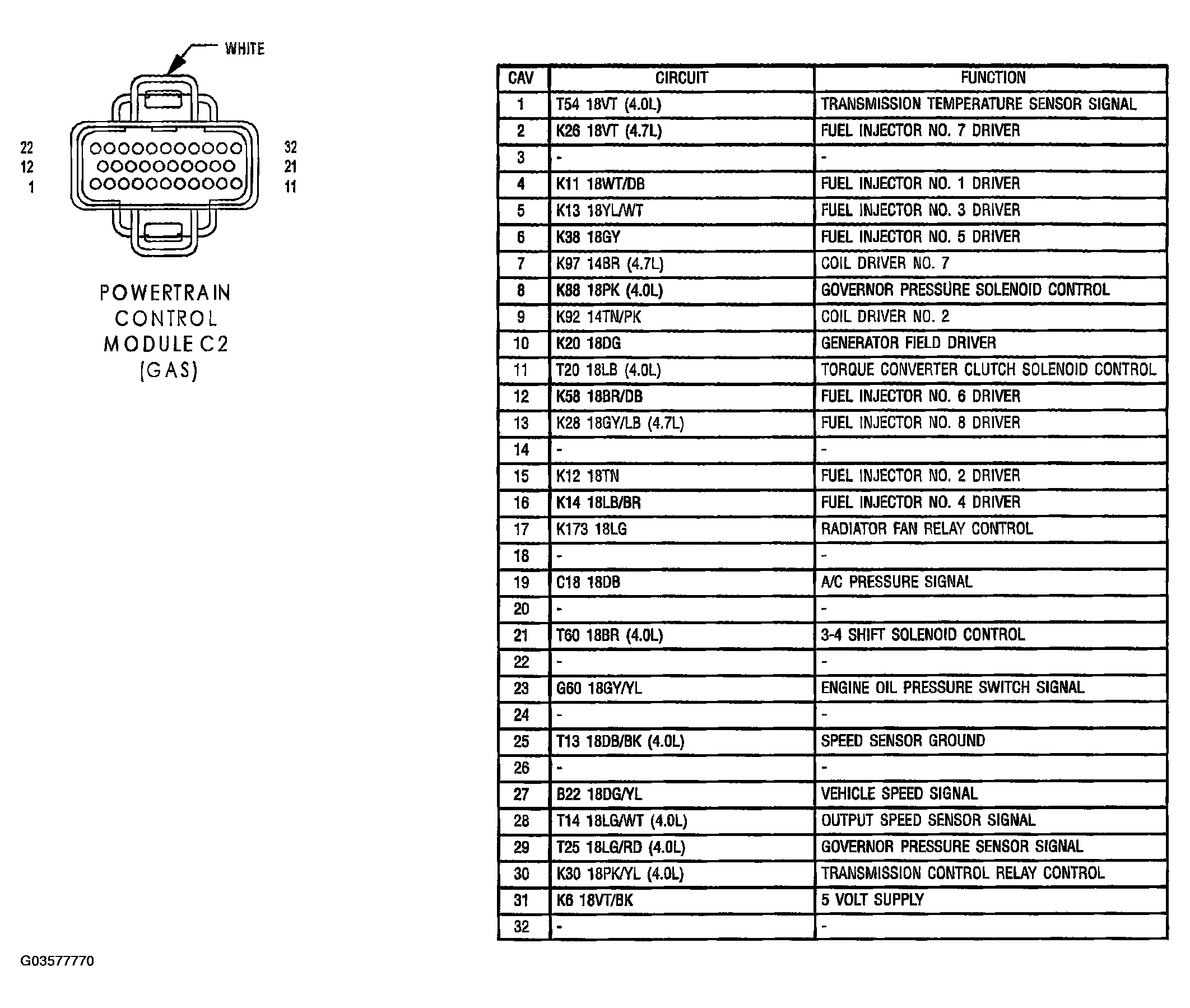

Fig 1: Powertrain Control Module (Gas) Connector End View (C2)

G03577770

Courtesy of DAIMLERCHRYSLER CORP.
