Passenger Door Module C1 Connector End View

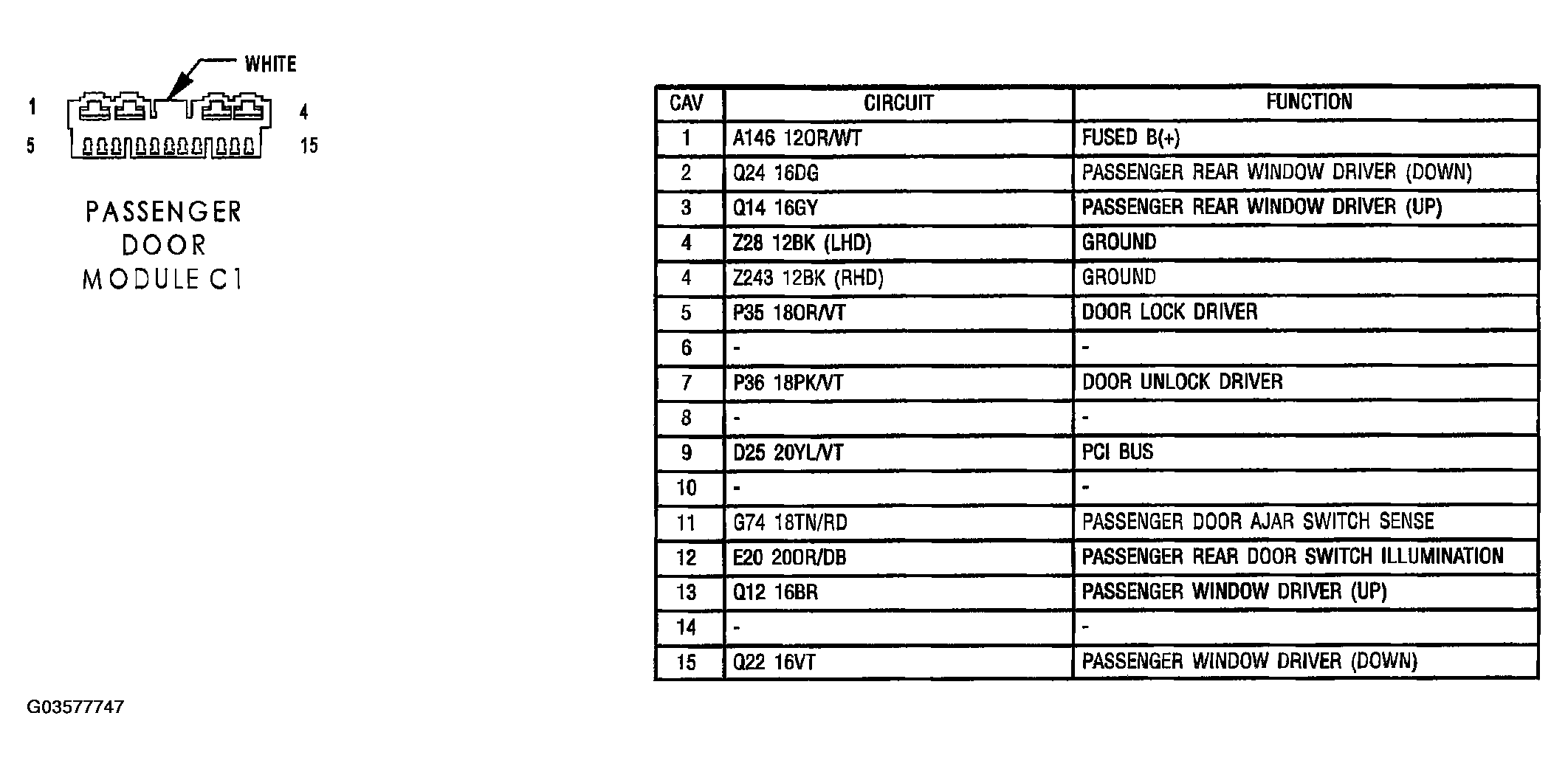

Fig 1: Passenger Door Module Connector End View (C1)
G03577747Courtesy of DAIMLERCHRYSLER CORP.
