Overhead Map/Courtesy Lamp Connector End View

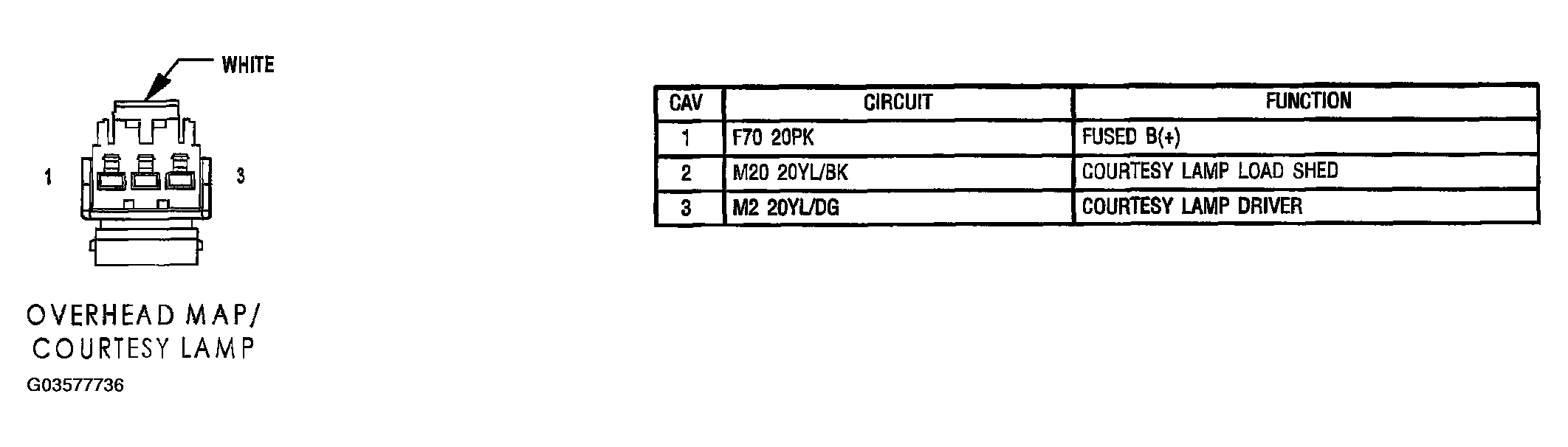

Fig 1: Overhead Map/Courtesy Lamp Connector End View

G03577736

Courtesy of DAIMLERCHRYSLER CORP.
