Junction Block Body Control Module Connector End View

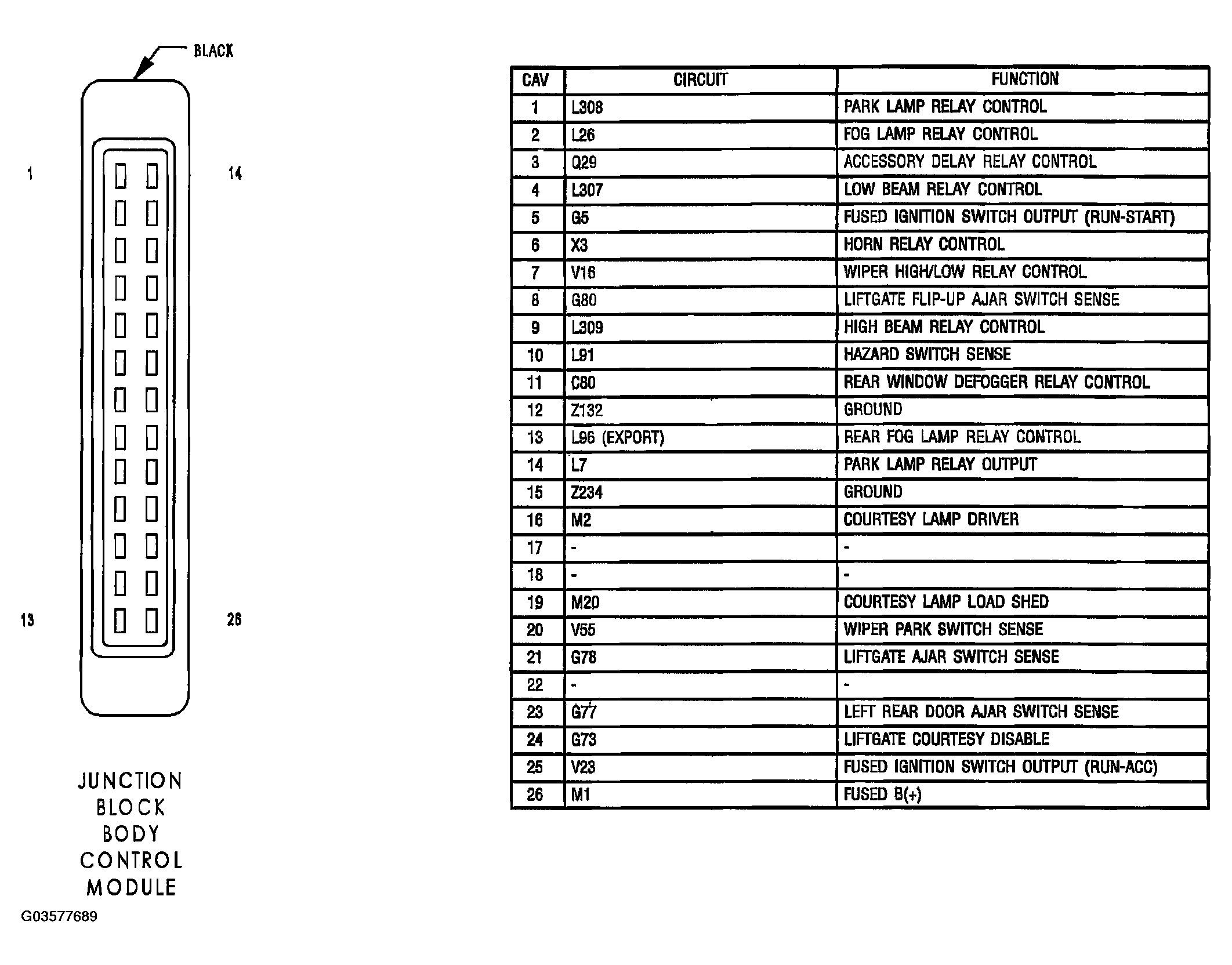

Fig 1: Junction Block Body Control Module Connector End View

G03577689

Courtesy of DAIMLERCHRYSLER CORP.
