Engine Control Module C2 (Diesel) Connector End View

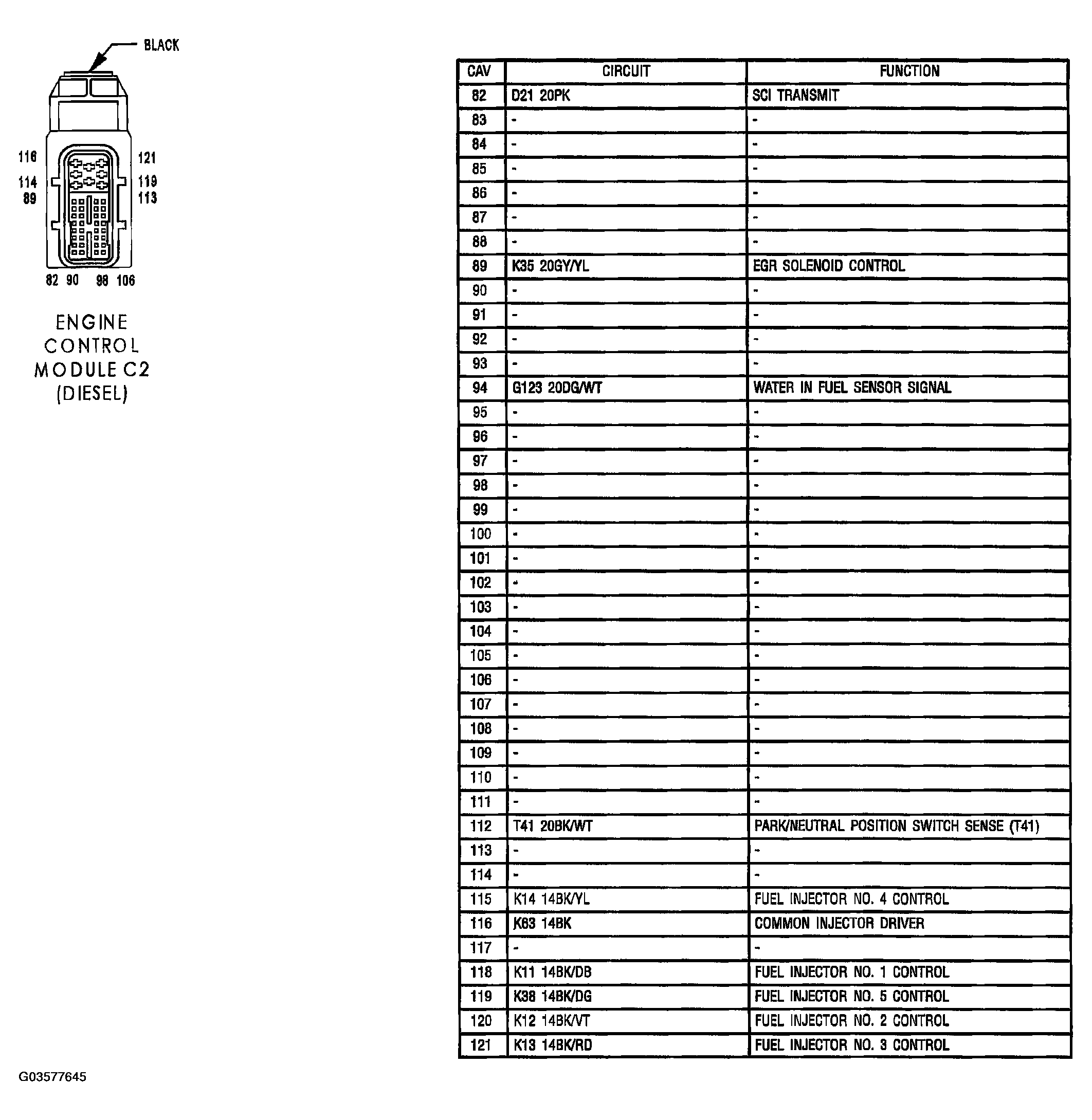

Fig 1: Engine Control Module (Diesel) Connector End View (C2)

G03577645

Courtesy of DAIMLERCHRYSLER CORP.
