Electronic Speed Control Servo Connector End View

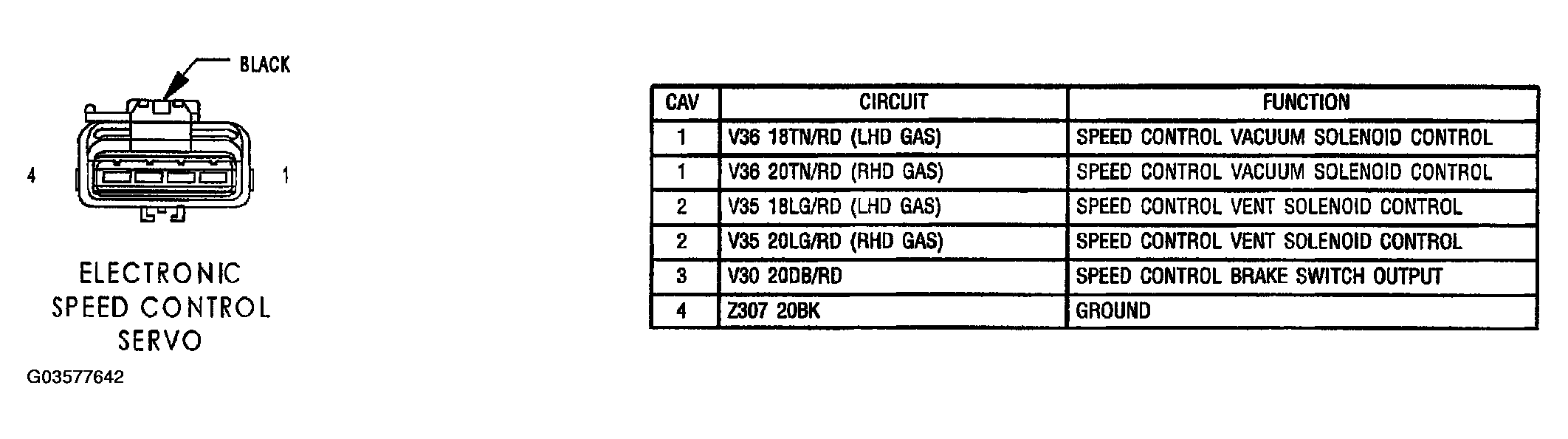

Fig 1: Electronic Speed Control Servo Connector End View

G03577642

Courtesy of DAIMLERCHRYSLER CORP.
