Verification Tests: VTSS

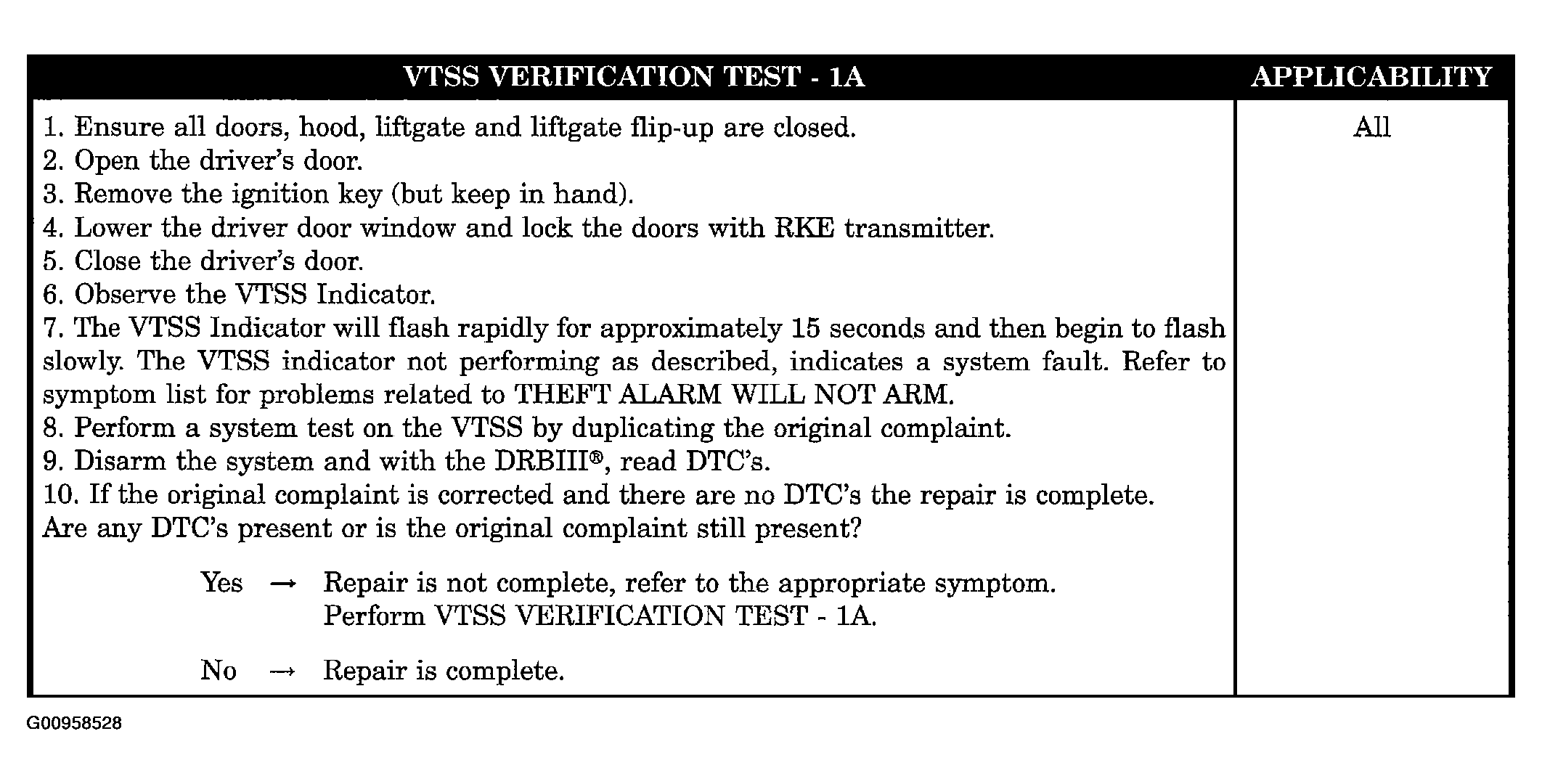

Fig 1: VTSS Verification Test - 1A

G00958528

Courtesy of DAIMLERCHRYSLER CORP.
