Home >> Jeep >> 2004 >> Grand Cherokee Overland, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Body Diagnostic Procedures >> Verification Tests >> Powertrain

Verification Tests: Powertrain

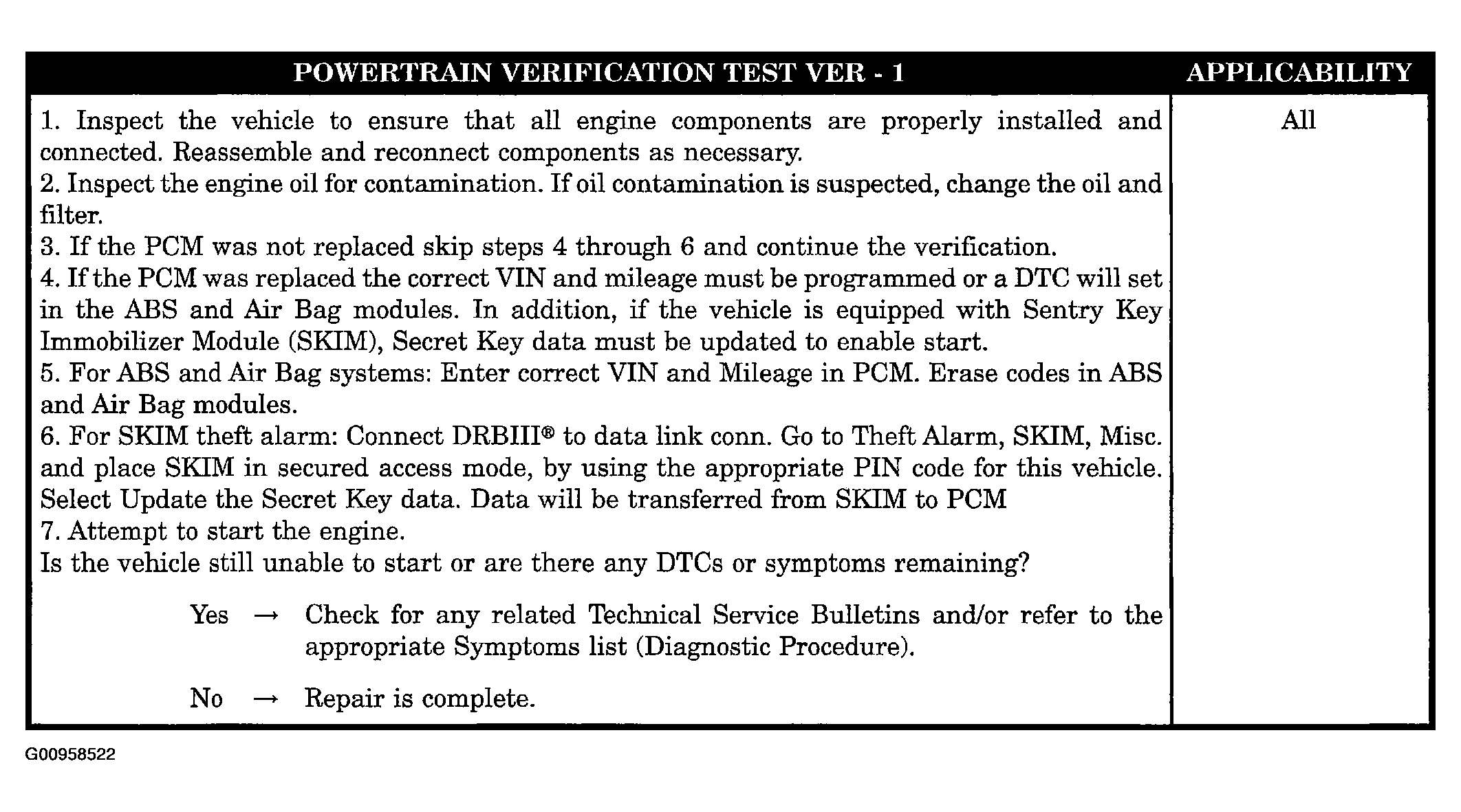

Fig 1: Powertrain Verification Test - VER-1

G00958522

Courtesy of DAIMLERCHRYSLER CORP.

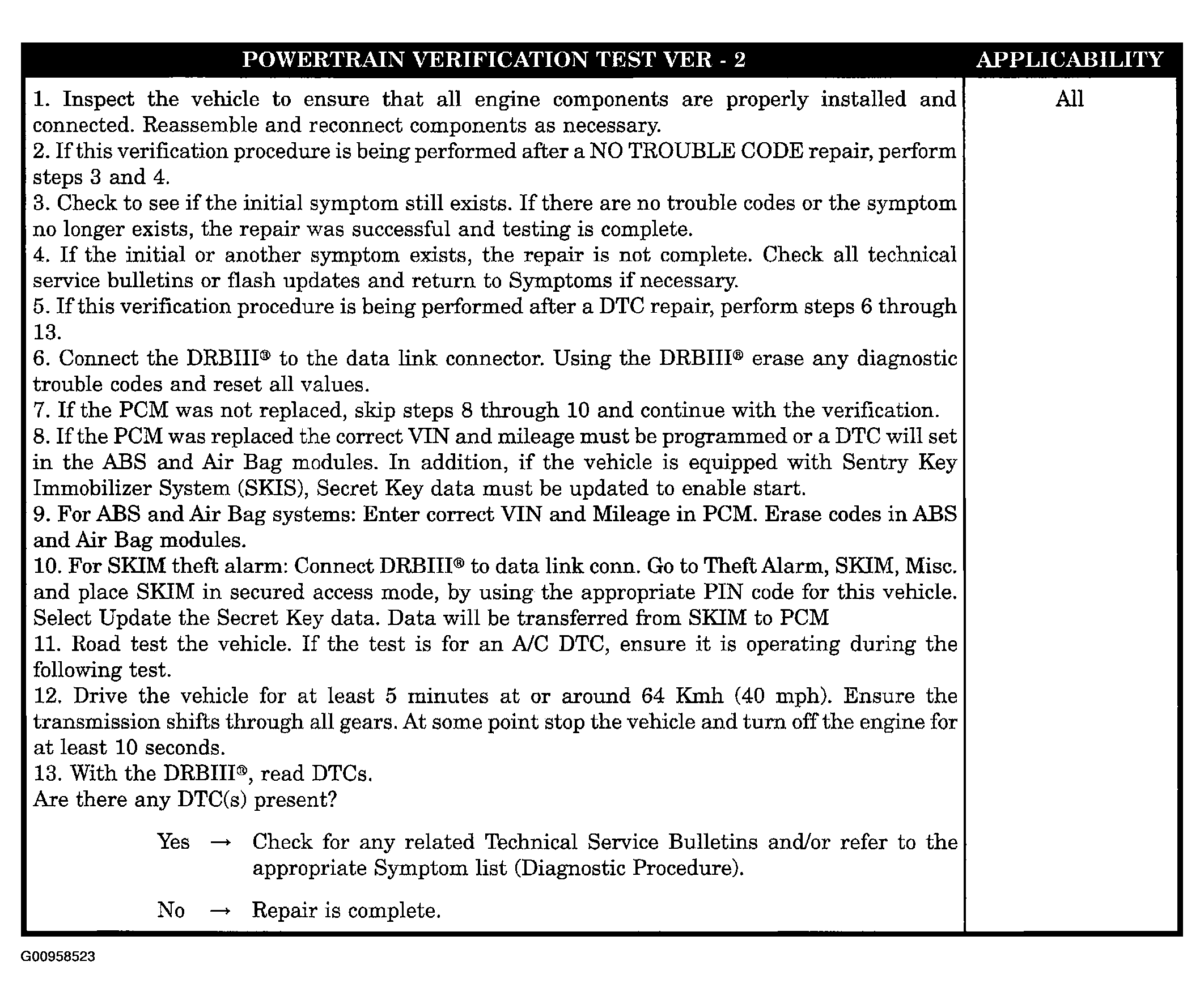

Fig 2: Powertrain Verification Test - VER-2

G00958523

Courtesy of DAIMLERCHRYSLER CORP.
