Memory System
Memory System

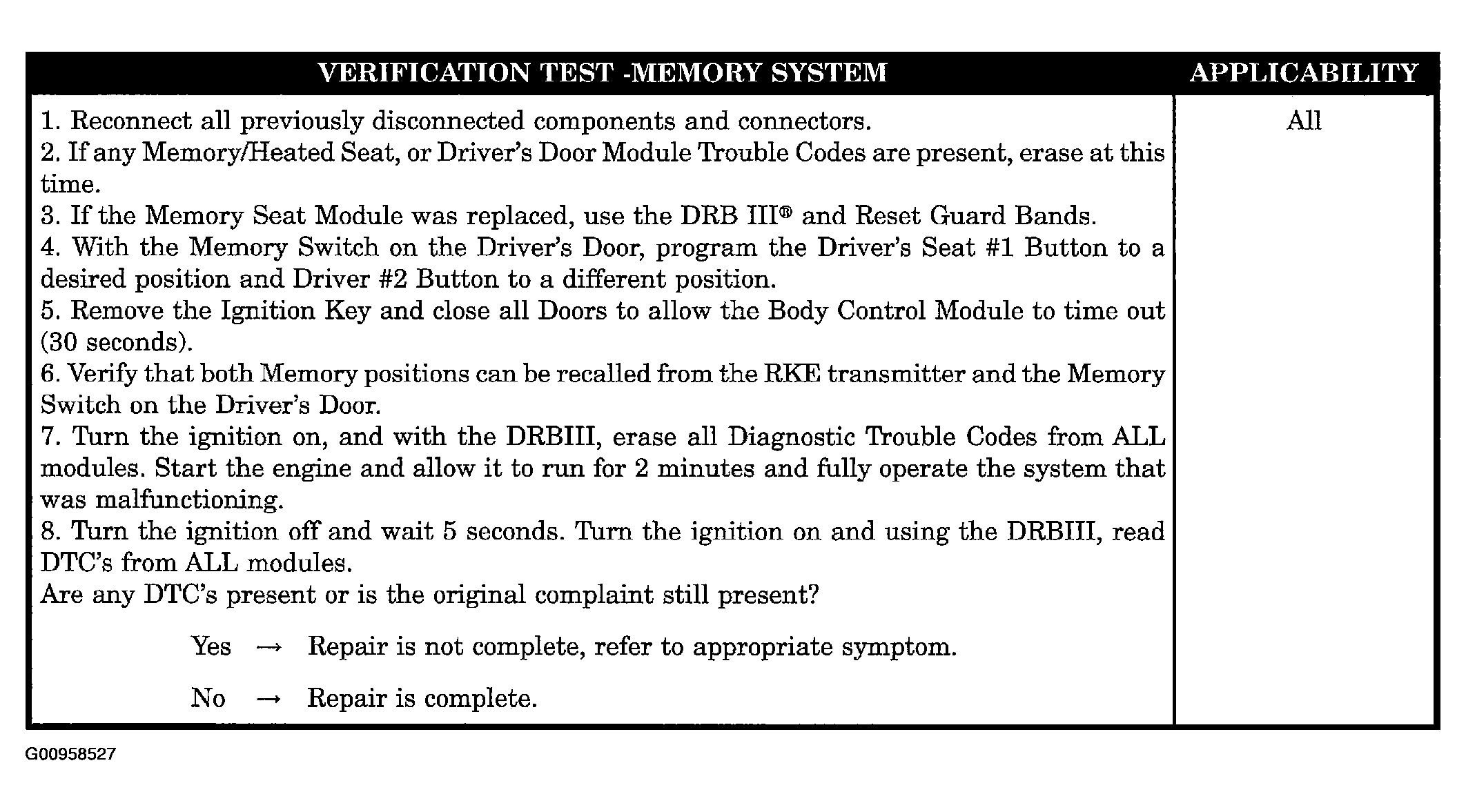

Fig 1: Memory System Verification Test
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
