Power Windows

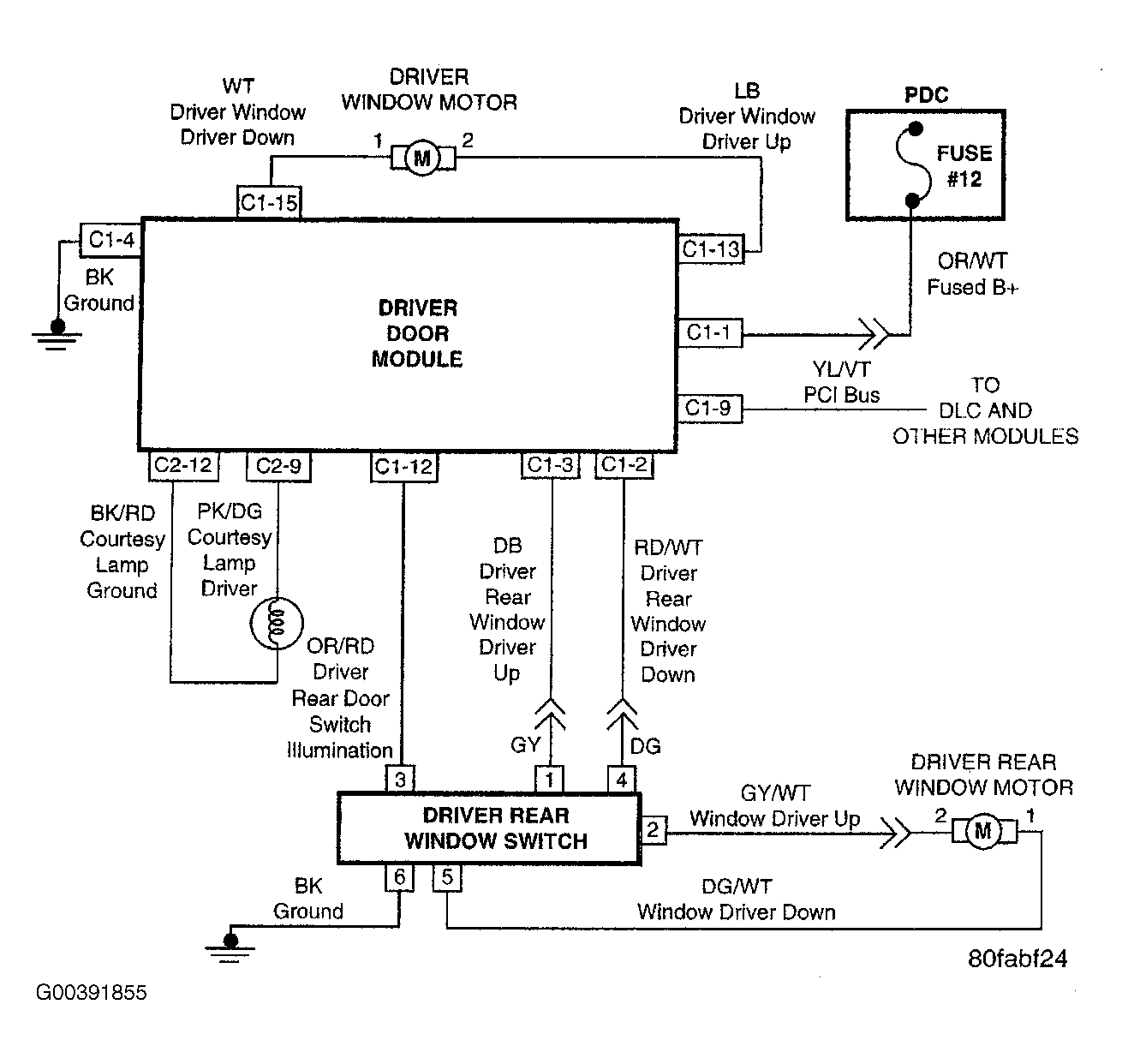

Fig 1: Driver Side Power Windows Schematic Diagram

G00391855

Courtesy of DAIMLERCHRYSLER CORPORATION

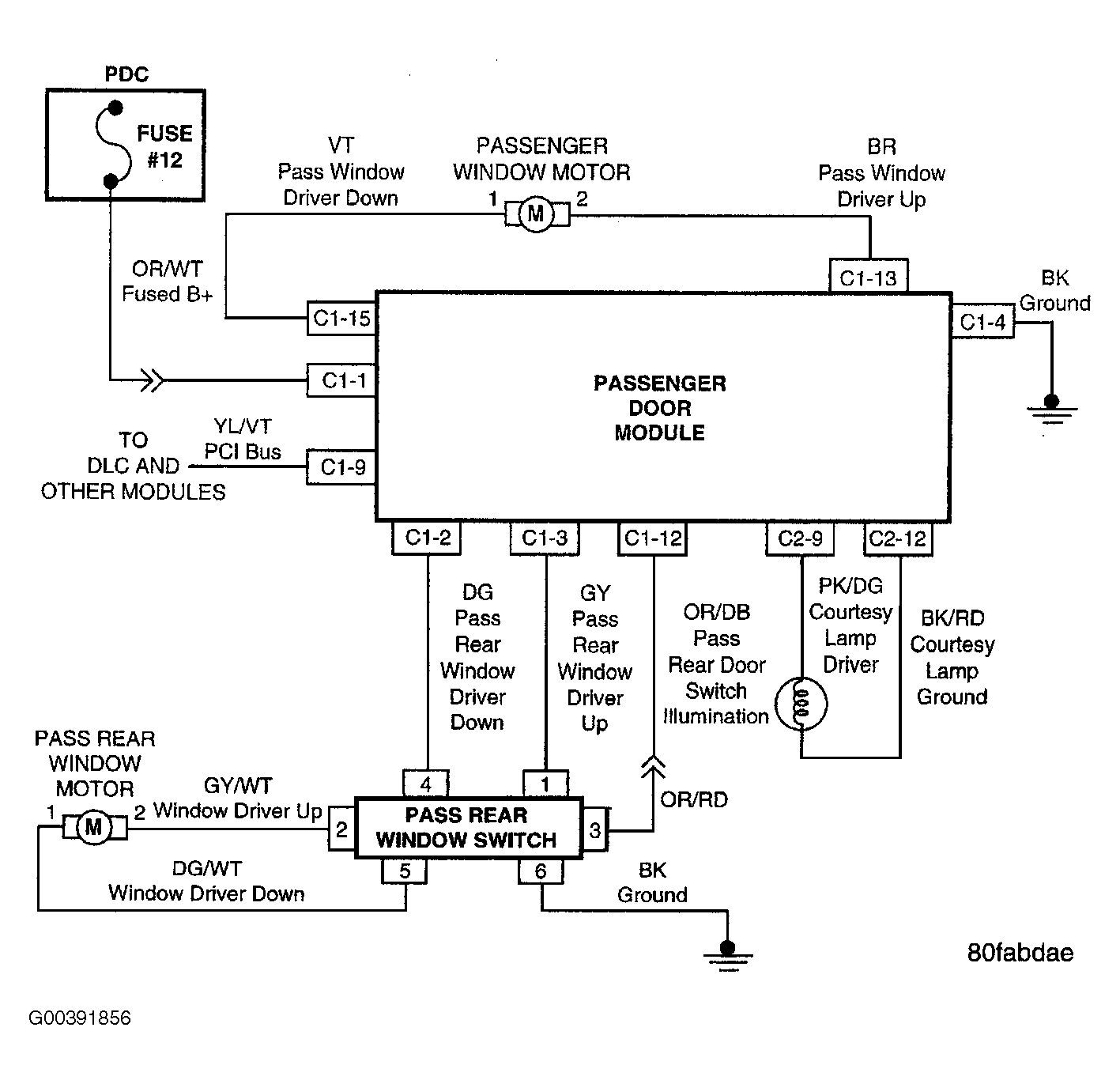

Fig 2: Passenger Side Power Window Schematic Diagram

G00391856

Courtesy of DAIMLERCHRYSLER CORPORATION
