Adjustable Pedals Module (Except Export) - Green 14 Way

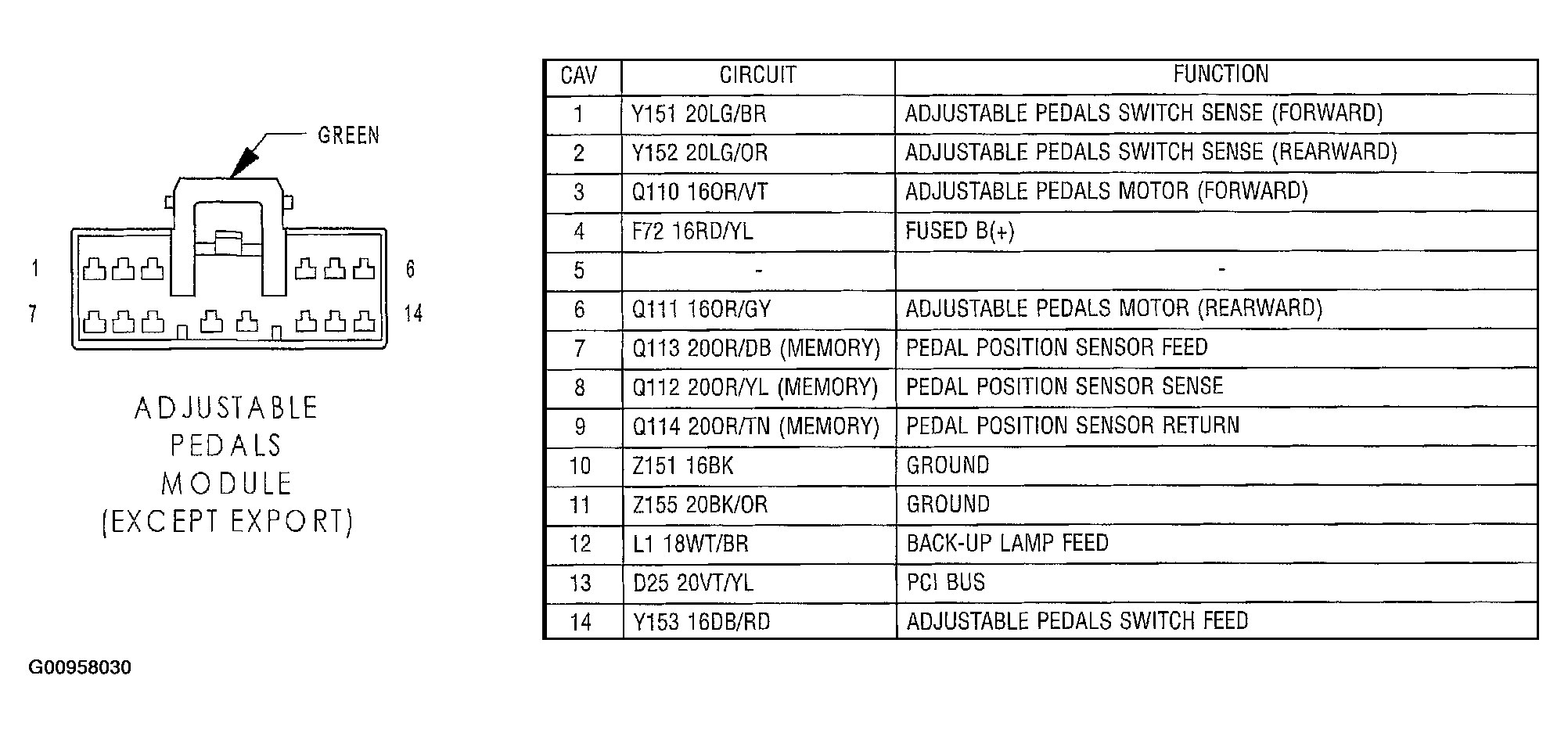

Fig 1: Identifying Adjustable Pedals Module (Except Export) - Green 14 Way Connector Pinouts
G00958030Courtesy of DAIMLERCHRYSLER CORP.
