Transmission Control Module (4.7L) Connector End View

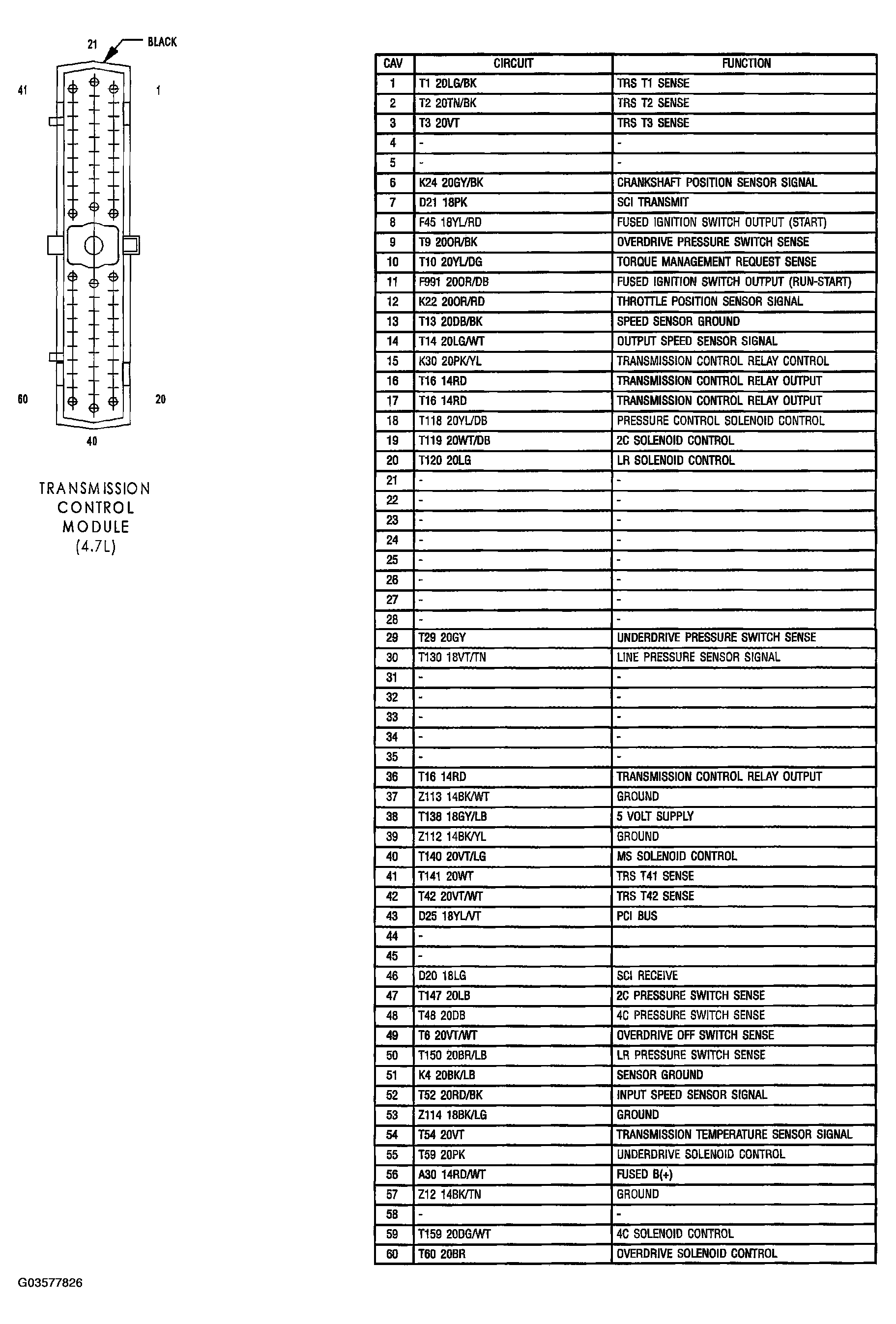

Fig 1: Transmission Control Module (4.7L) Connector End View

G03577826

Courtesy of DAIMLERCHRYSLER CORP.
