Ignition Switch C1 Connector End View

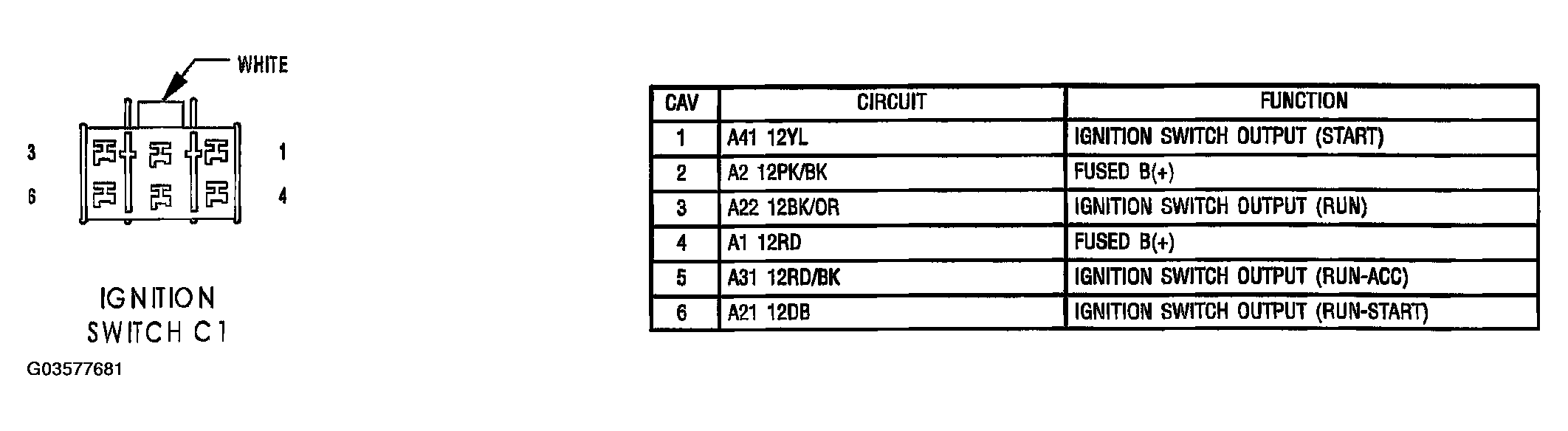

Fig 1: Ignition Switch Connector End View (C1)

G03577681

Courtesy of DAIMLERCHRYSLER CORP.
