C200 Connector End View

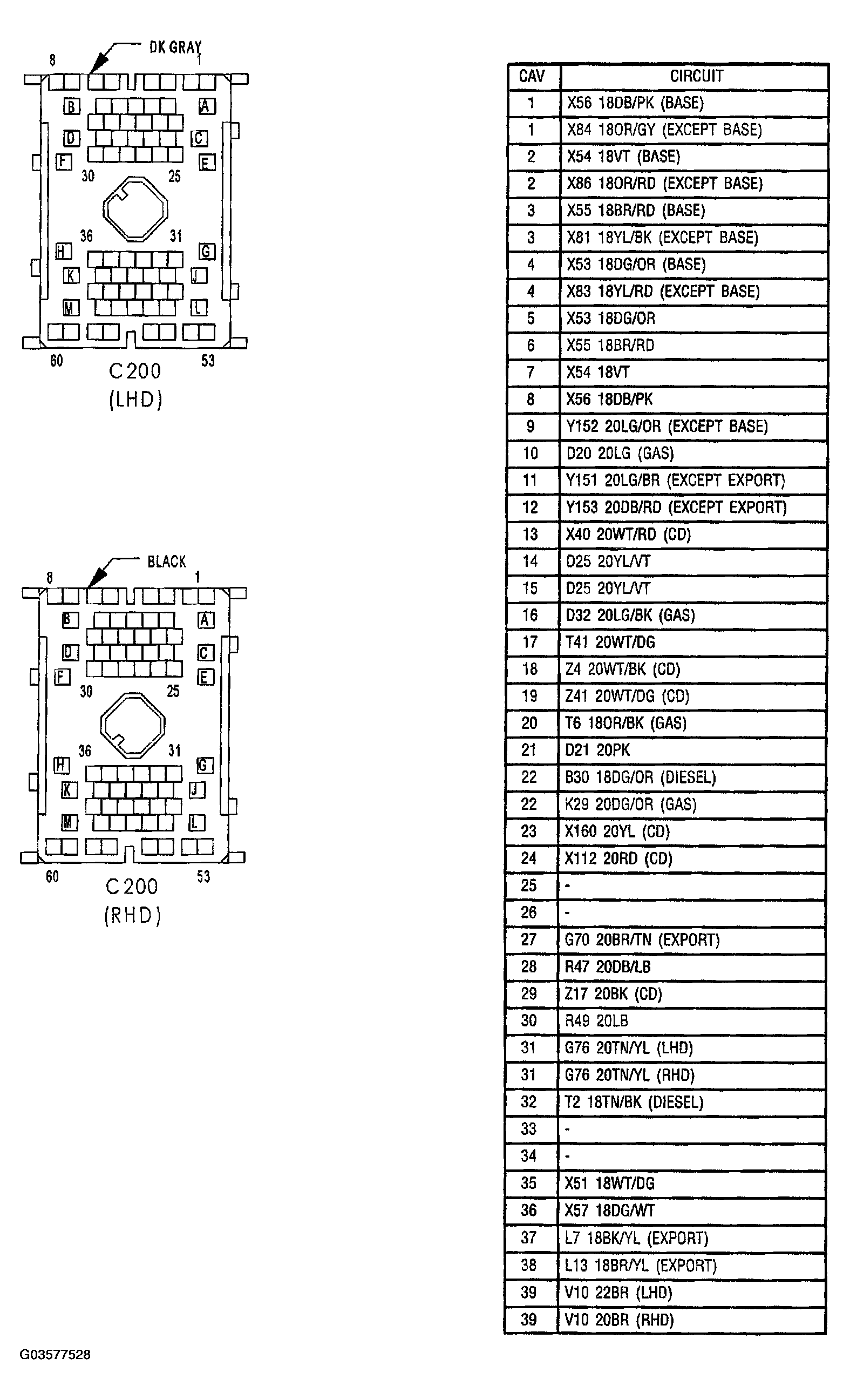

Fig 1: Body Side Inline Connector End View (C200) (1 Of 2)
G03577528Courtesy of DAIMLERCHRYSLER CORP.

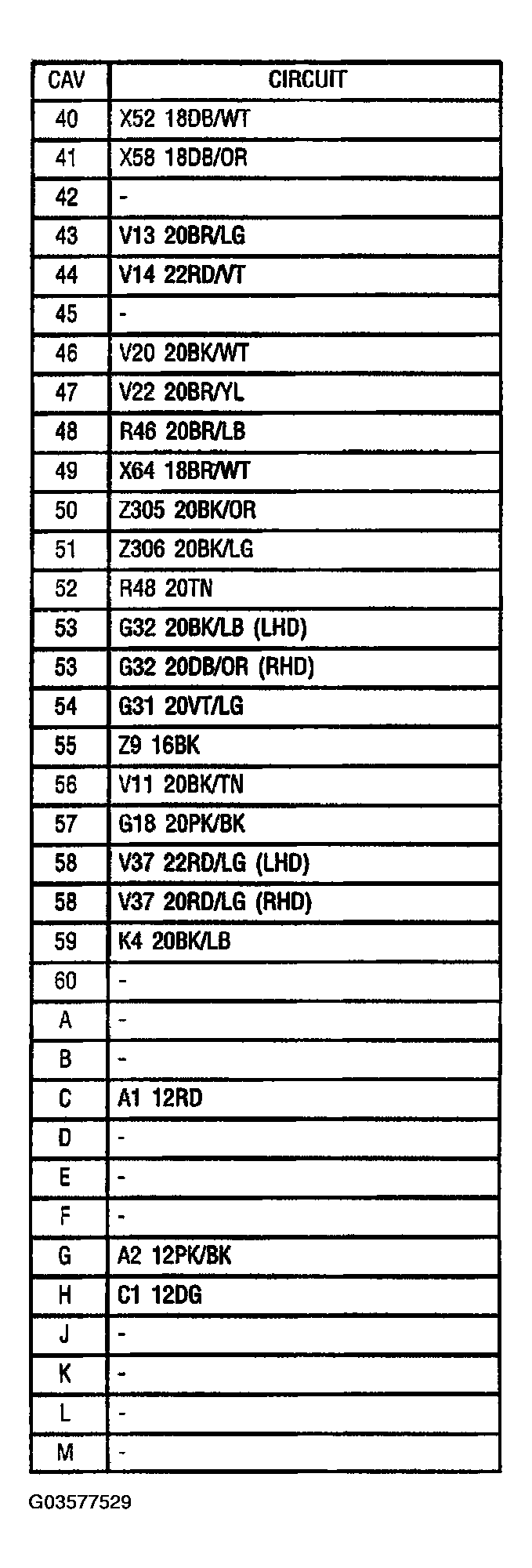

Fig 1: Body Side Inline Connector End View (C200) (2 Of 2)
G03577529Courtesy of DAIMLERCHRYSLER CORP.

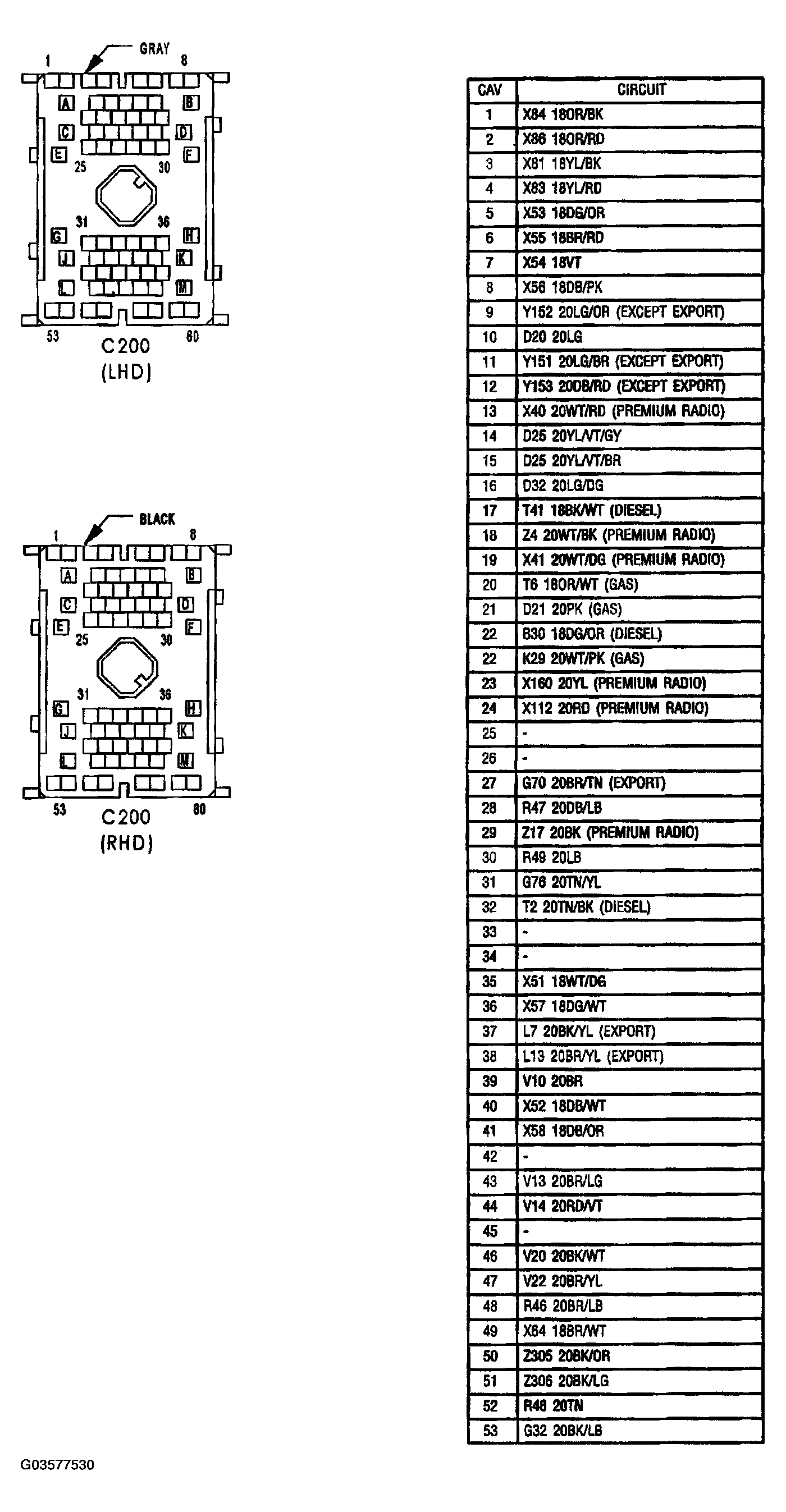

Fig 1: Instrument Panel Side Inline Connector End View (C200) (1 Of 2)
G03577530Courtesy of DAIMLERCHRYSLER CORP.

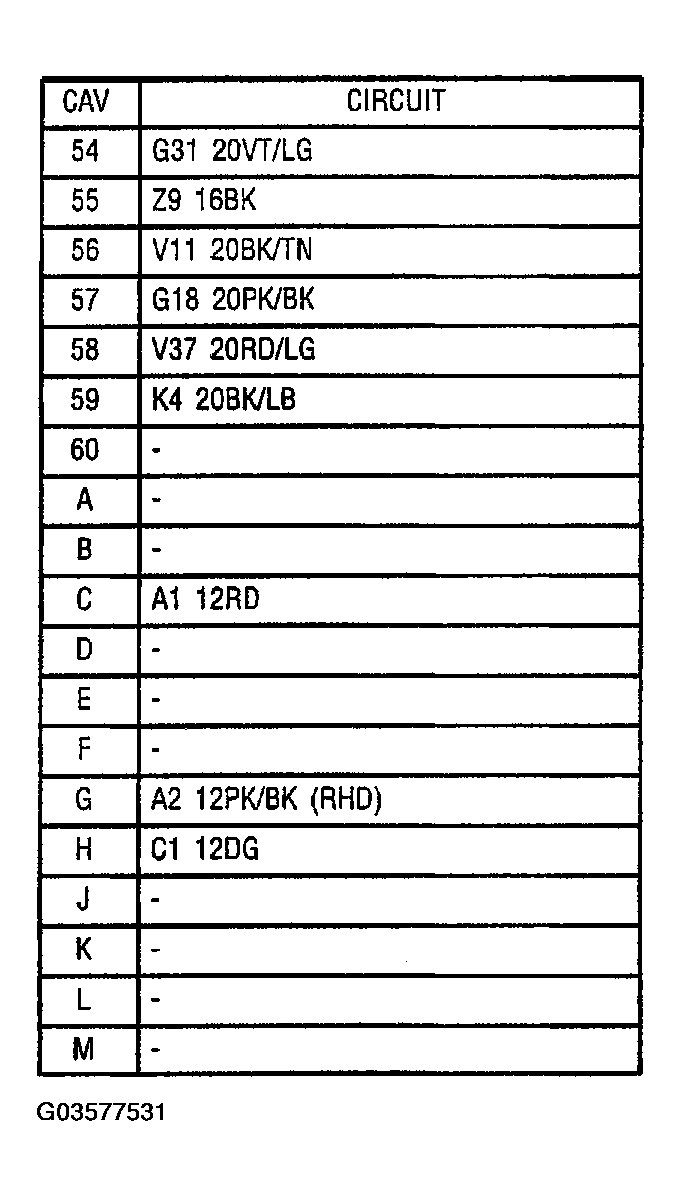

Fig 1: Instrument Panel Side Inline Connector End View (C200) (2 Of 2)
G03577531Courtesy of DAIMLERCHRYSLER CORP.
