C100 Connector End View

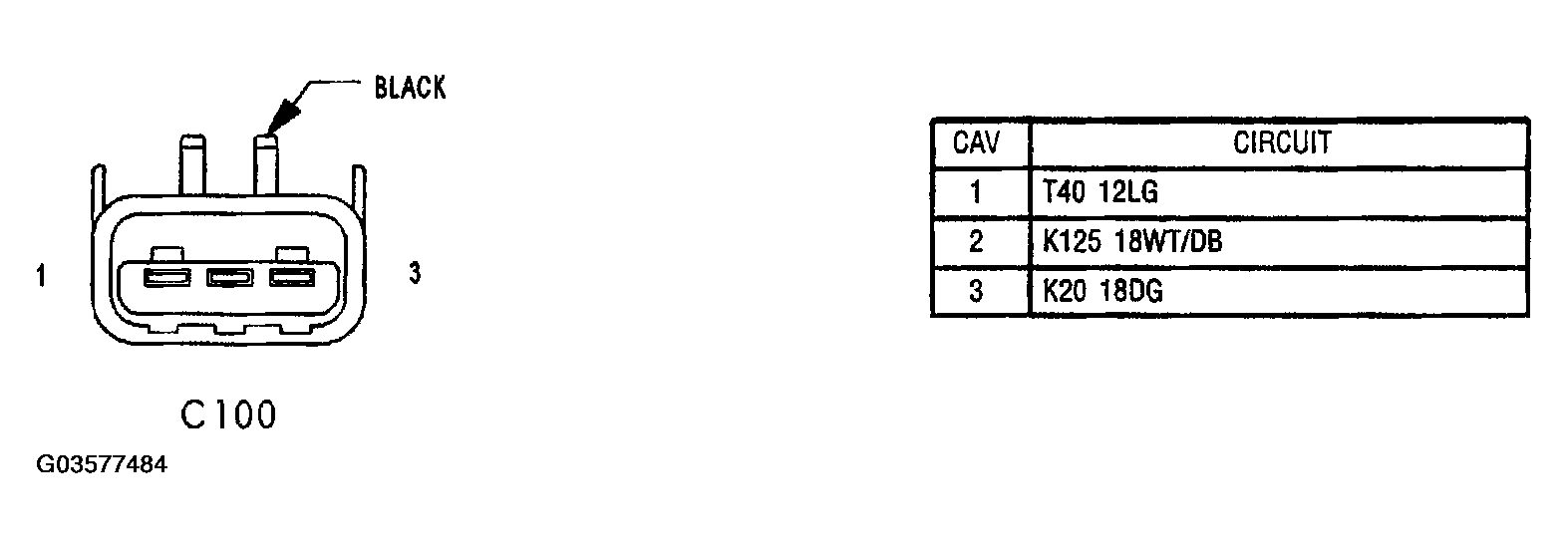

Fig 1: Battery Side Inline Connector End View (C100)
G03577484Courtesy of DAIMLERCHRYSLER CORP.

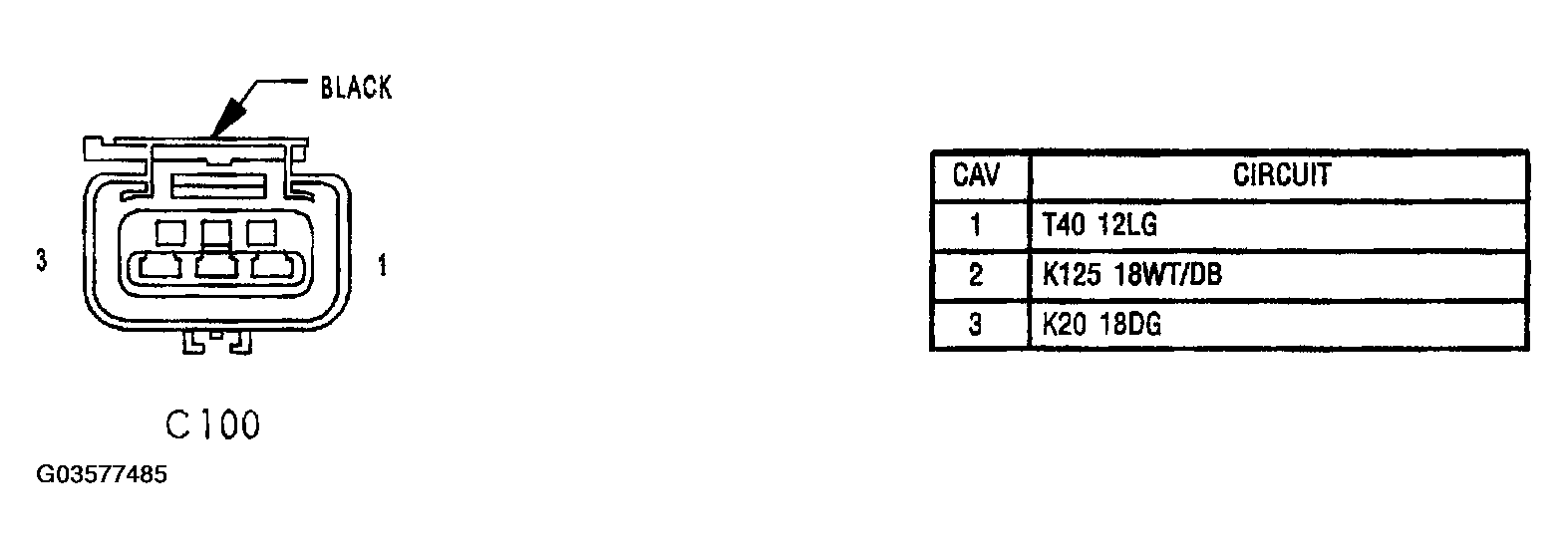

Fig 1: Right Headlamp And Dash Side Inline Connector End View (C100)
G03577485Courtesy of DAIMLERCHRYSLER CORP.
