Powertrain Control Module C1 (Gas) Connector End View

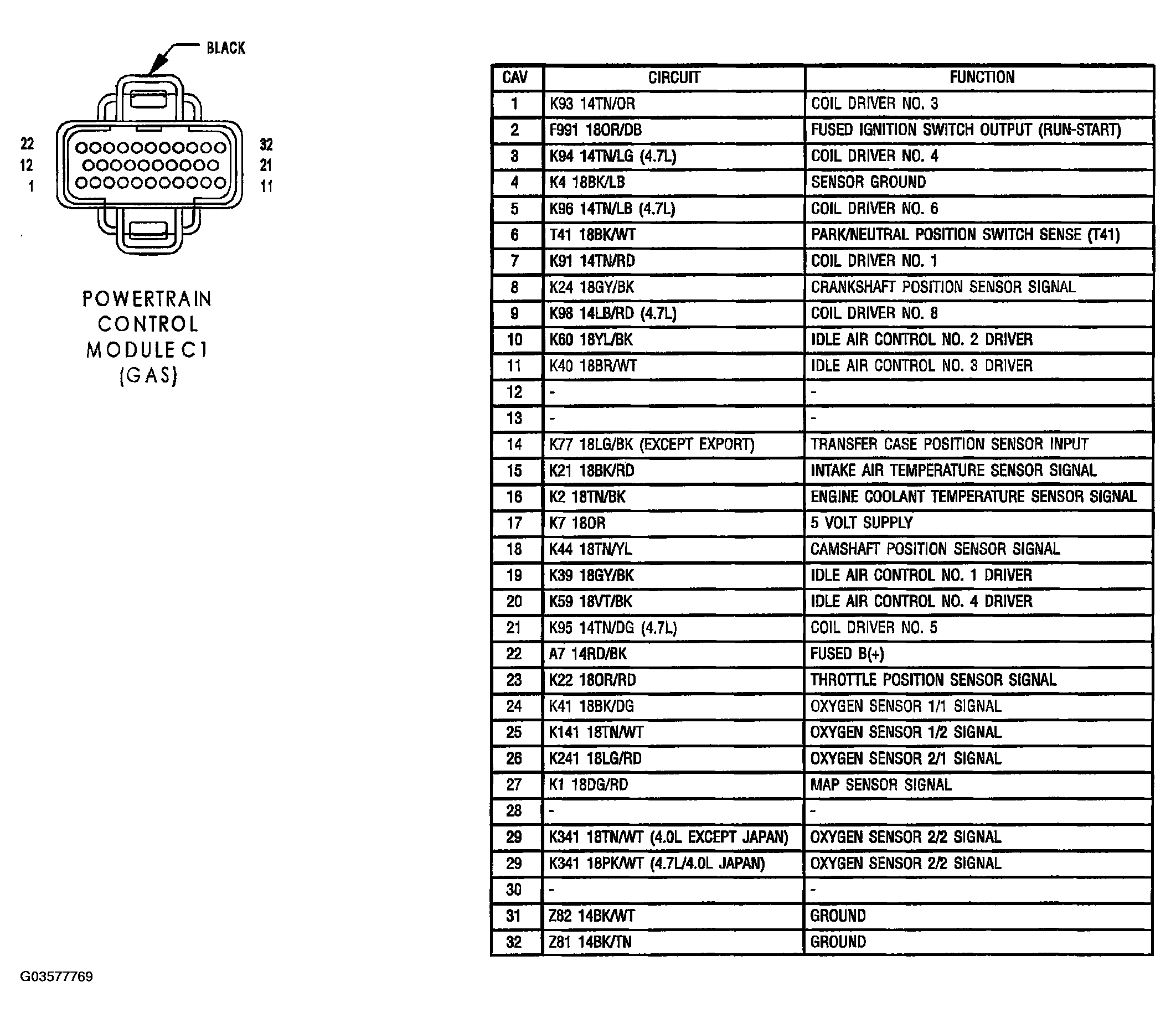

Fig 1: Powertrain Control Module (Gas) Connector End View (C1)

G03577769

Courtesy of DAIMLERCHRYSLER CORP.
