Driver Door Module C3 Connector End View

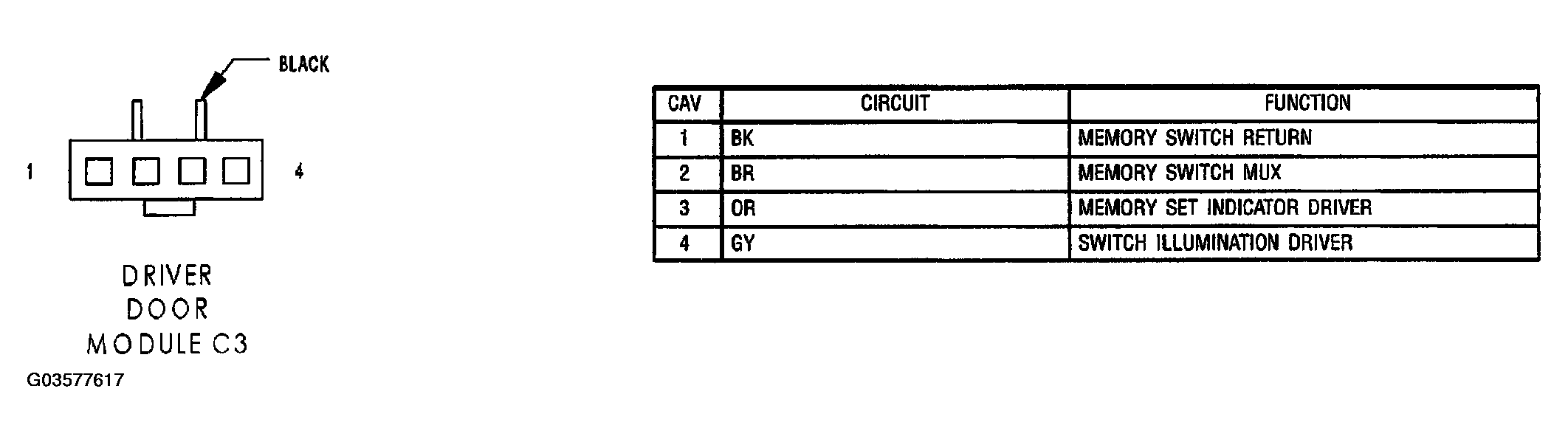

Fig 1: Driver Door Module Connector End View (C3)

G03577617

Courtesy of DAIMLERCHRYSLER CORP.
