Multifunction Switch Connector End View (C1)

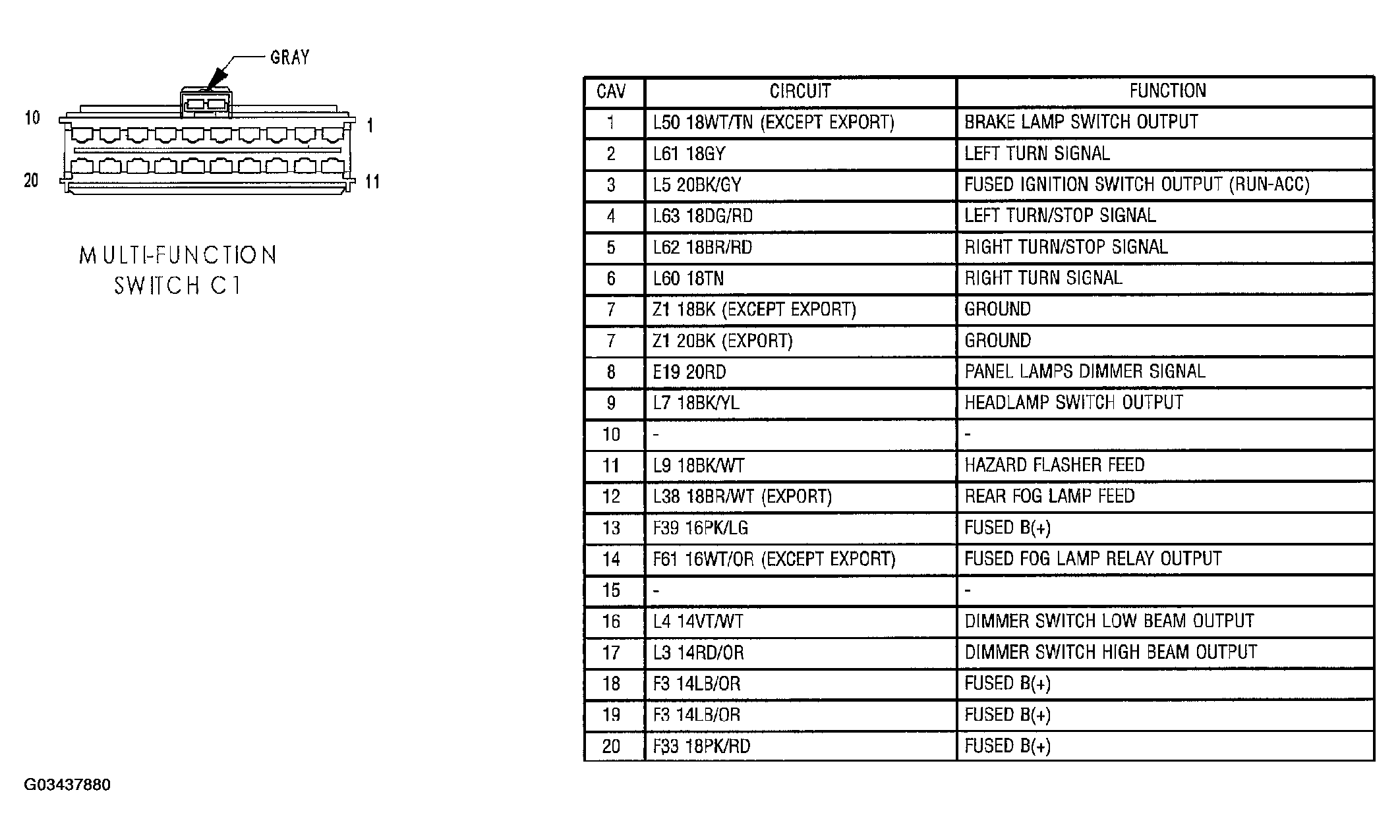

Fig 1: Multifunction Switch Connector End View (C1)

G03437880

Courtesy of DAIMLERCHRYSLER CORP.
