Trim Panel: Removal

  1. Lower the window.
  2. Remove the clip attaching the window glass regulator handle to the regulator. Remove the handle.
  3. Remove the screws attaching trim panel to door (Fig 1 ).

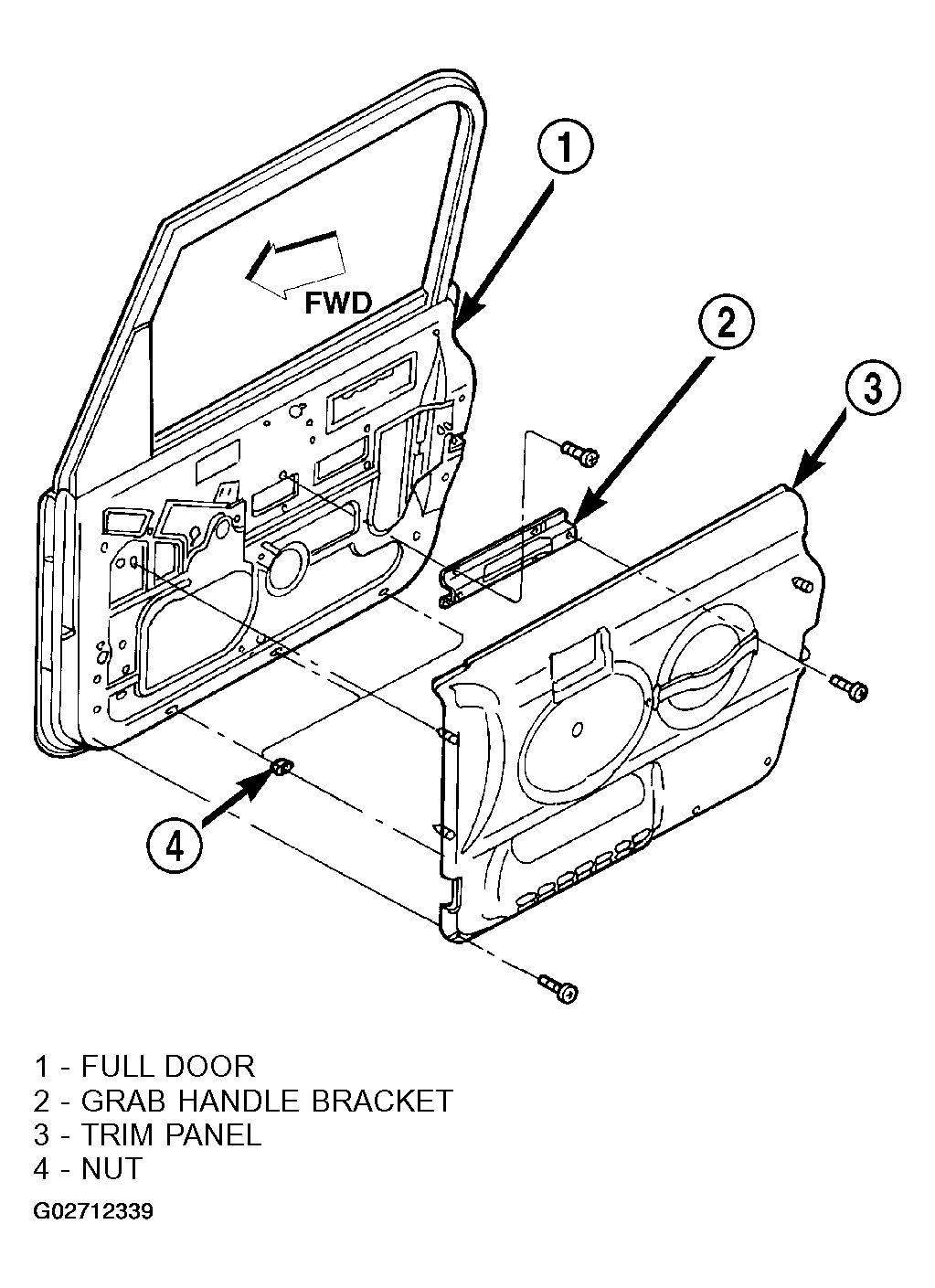

    Fig 1: Removing Trim Panel
    G02712339Courtesy of DAIMLERCHRYSLER CORP.
  4. Using a special tool C-4829 or equivalent, remove push-in fasteners attaching trim panel to door.
  5. Lift the trim panel upward and separate the trim panel from the door.
