Glass Run Channel: Removal

  1. Lower the window.
  2. Using a trim stick C-4755 or equivalent, carefully pry the glass run channel weatherstrip from the window opening frame.
  3. Remove the door glass. (Refer to DOOR GLASS - REMOVAL  ).
  4. Grasp the glass run channel weatherstrip in the door (Fig 1 ) and pull from the channel.

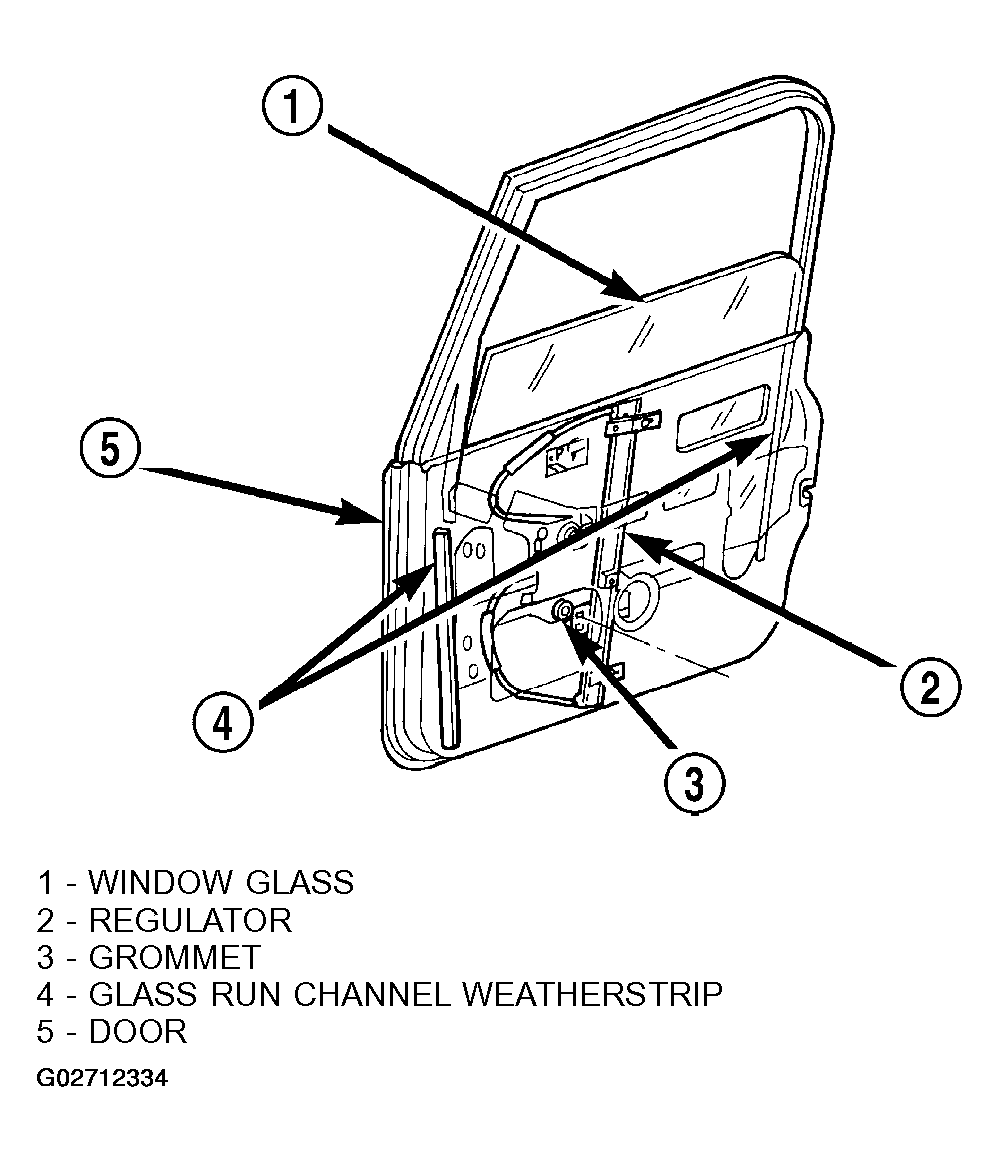

    Fig 1: Removing Full Door Glass Run Channel Weatherstrip
    G02712334Courtesy of DAIMLERCHRYSLER CORP.
