Home >> Jeep >> 2003 >> Wrangler X, Standard >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Body Diagnostic Procedures >> System Component Locations >> Airbag >> Driver Airbag Module & CLOCKSPRING

Driver Airbag Module & CLOCKSPRING

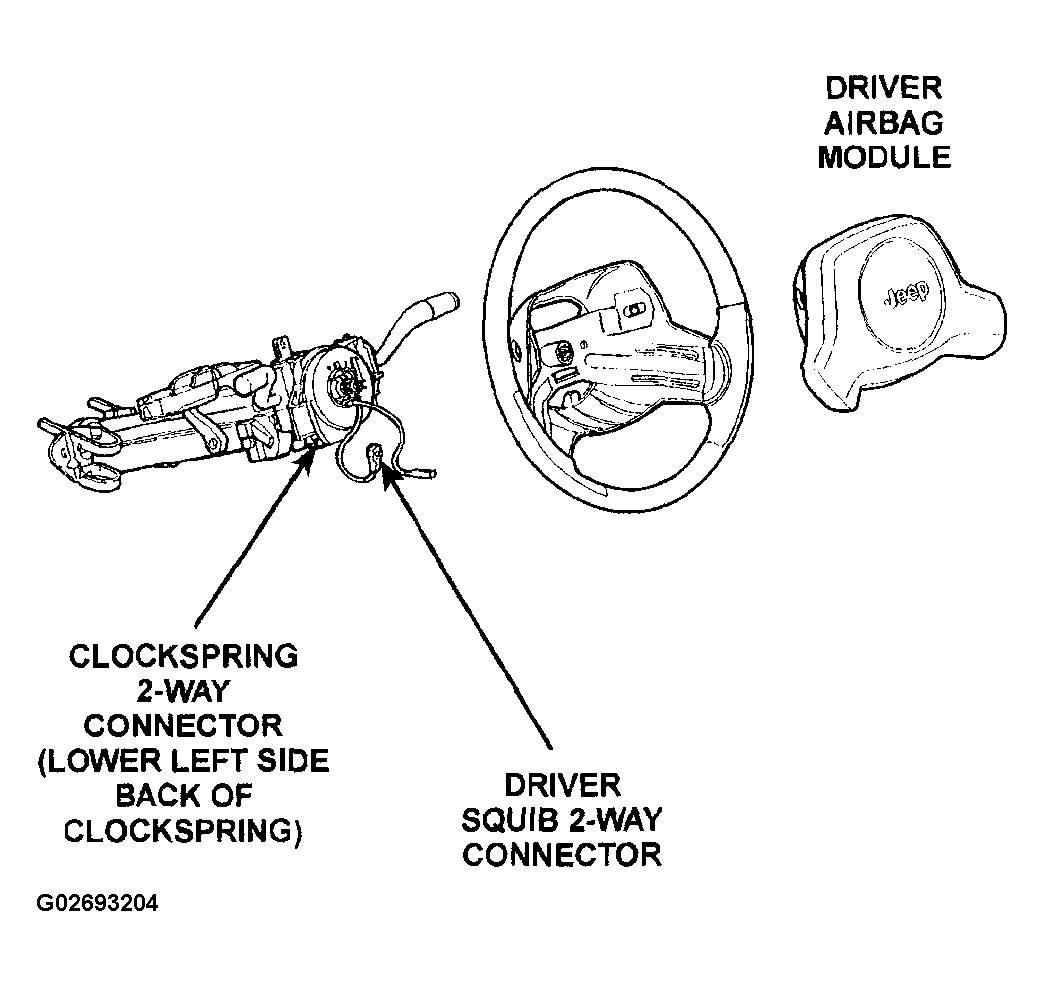

Fig 1: Identifying Driver Airbag Module And Clockspring
G02693204Courtesy of DAIMLERCHRYSLER CORP.
