Multifunction Switch Connector End View (C2)

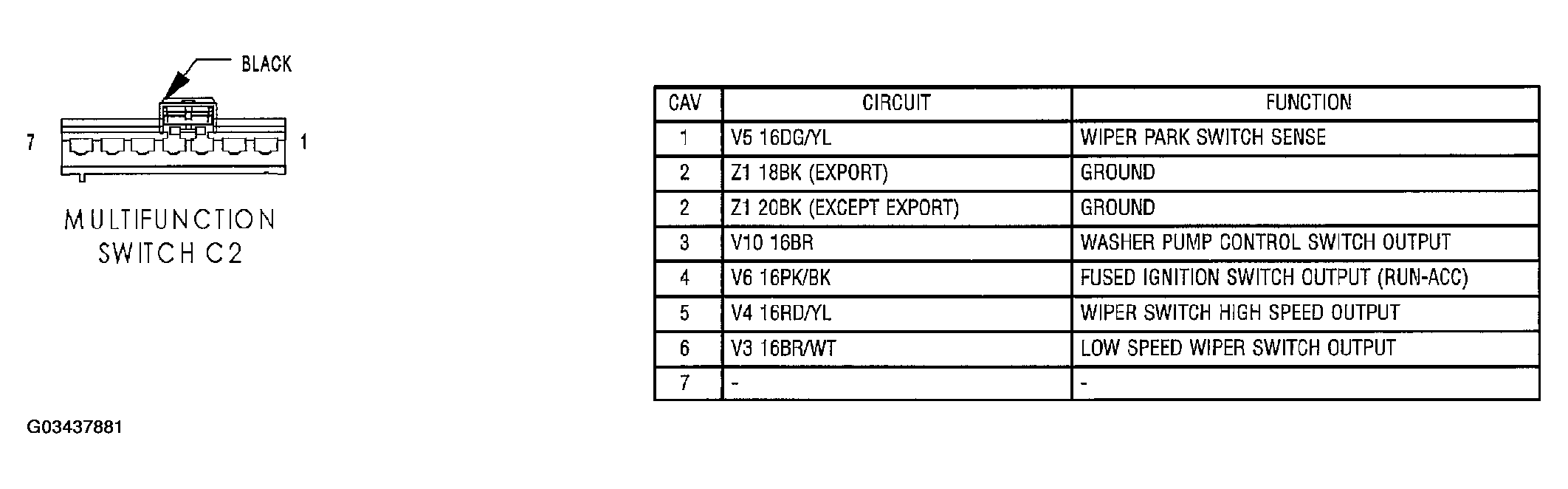

Fig 1: Multifunction Switch Connector End View (C2)

G03437881

Courtesy of DAIMLERCHRYSLER CORP.
