PDC Relay Wedge Removal

  1. Remove the PDC housing lower cover.
  2. Remove each of the relays from the PDC relay wedge to be removed.
  3. From the bottom of the PDC housing, use a small screwdriver or a terminal pick tool (Special Tool Kit 6680) to release the two latches (yellow) that secure the relay wedge to the PDC relay cassette.

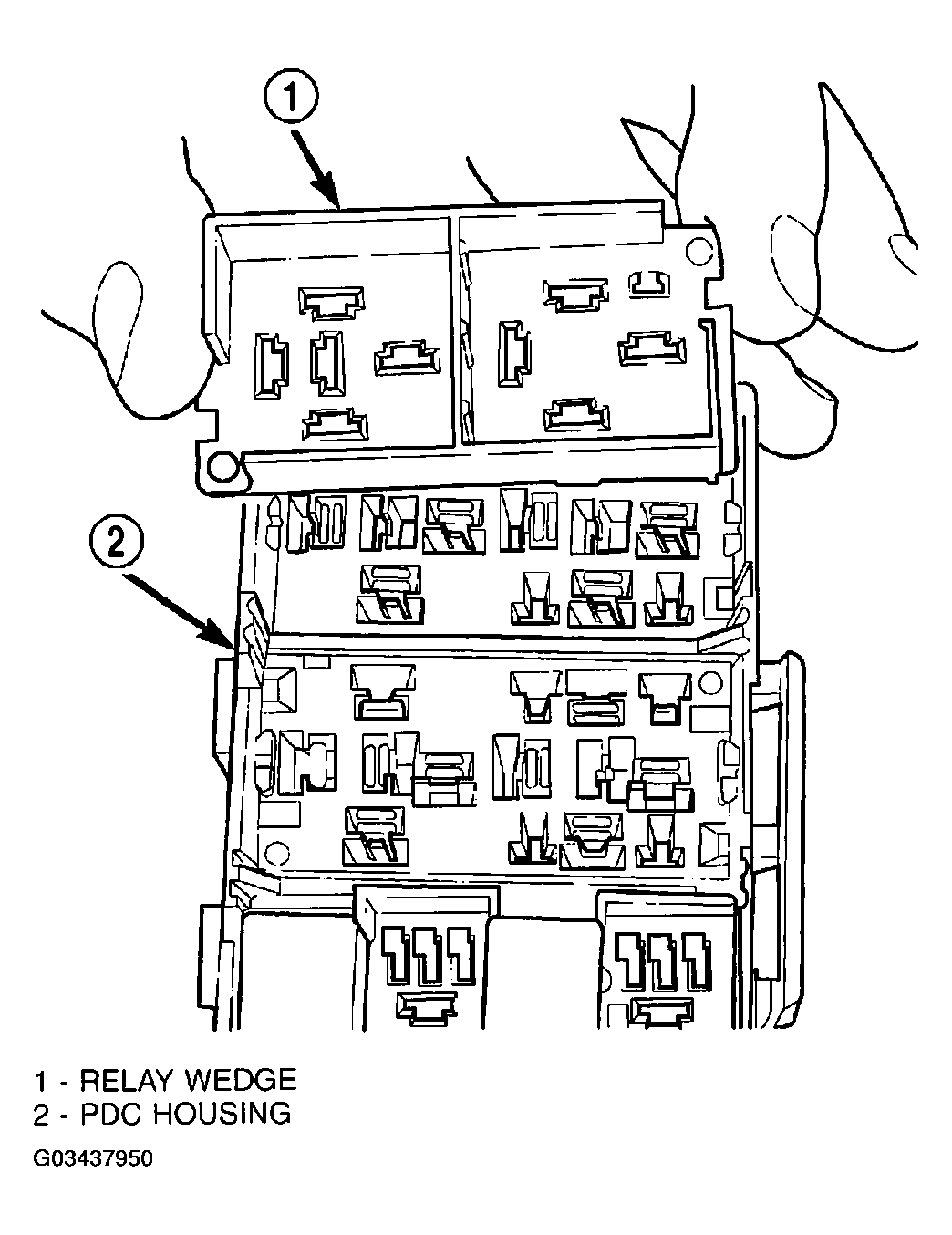

  4. From the top of the PDC housing, remove the relay wedge from the PDC relay cassette (Figure).
