Powertrain Control Module Connector End View (C3)

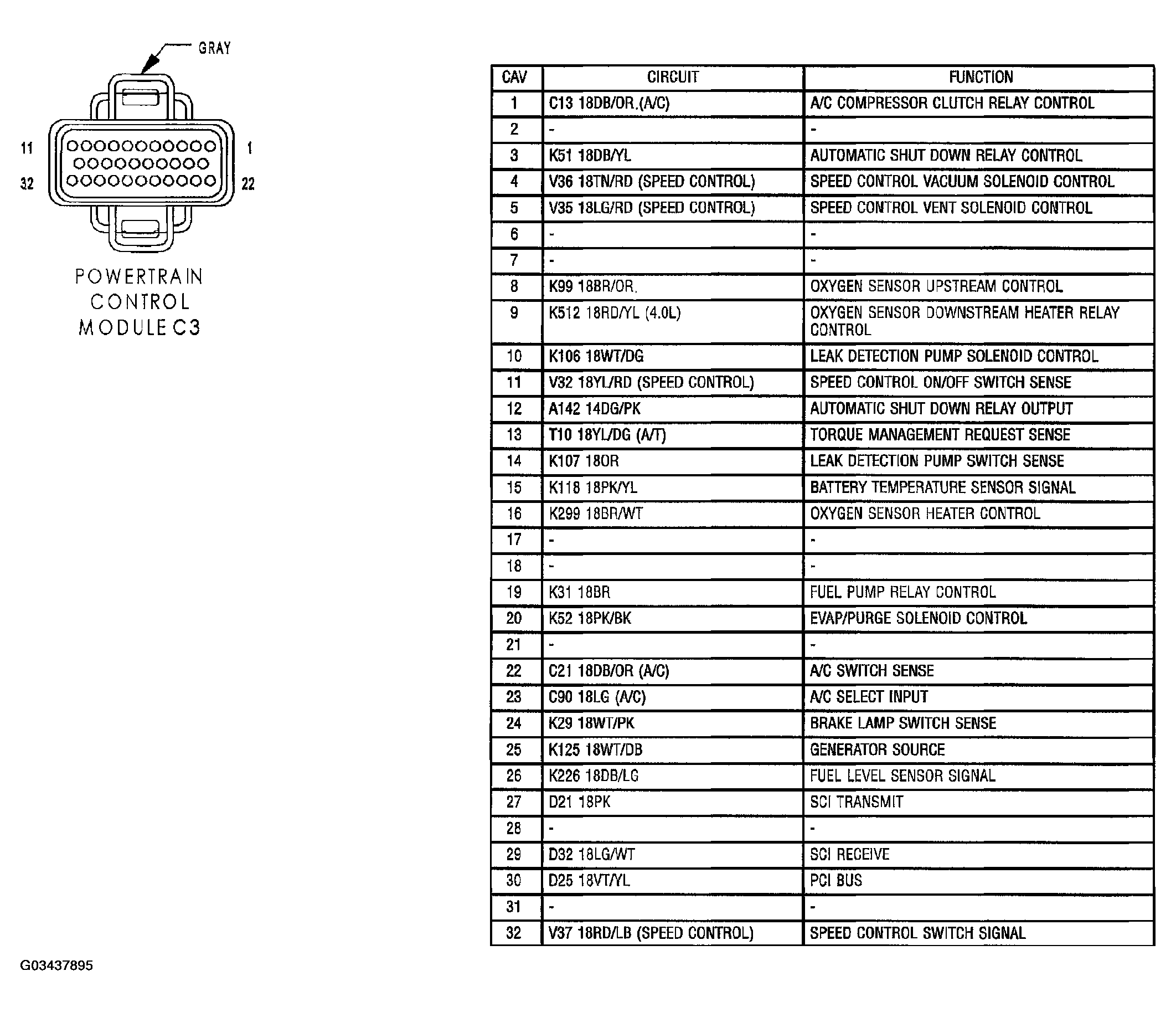

Fig 1: Powertrain Control Module Connector End View (C3)

G03437895

Courtesy of DAIMLERCHRYSLER CORP.
