Circuit Schematic

WARNING: This page is about a different variant/trim than selected.

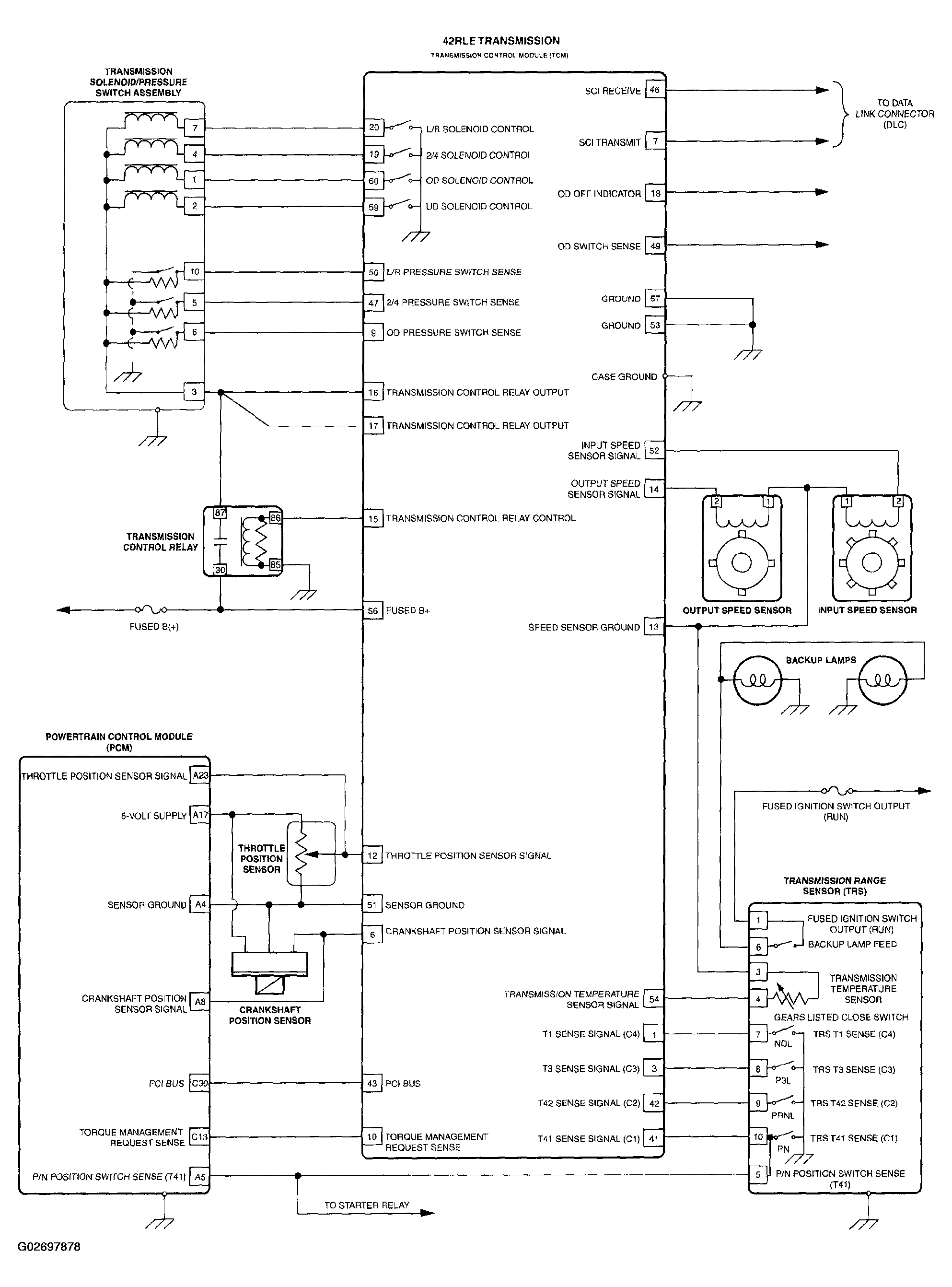

Fig 1: 42RLE Transmission Control Module Schematic Diagram
G02697878Courtesy of DAIMLERCHRYSLER CORP.
