Connector PINOUTS

WARNING: This page is about a different variant/trim than selected.

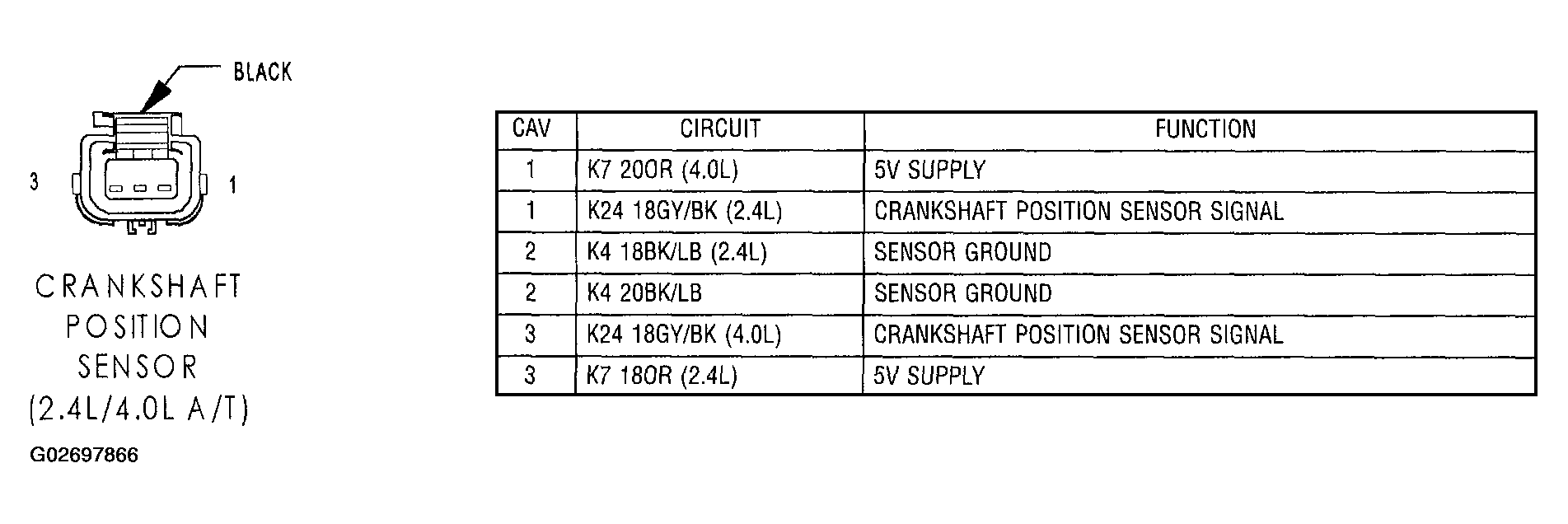

Fig 1: Identifying Connector Pinouts Of Crankshaft Position Sensor (2.4L/4.0L A/T)

Courtesy of DAIMLERCHRYSLER CORP.

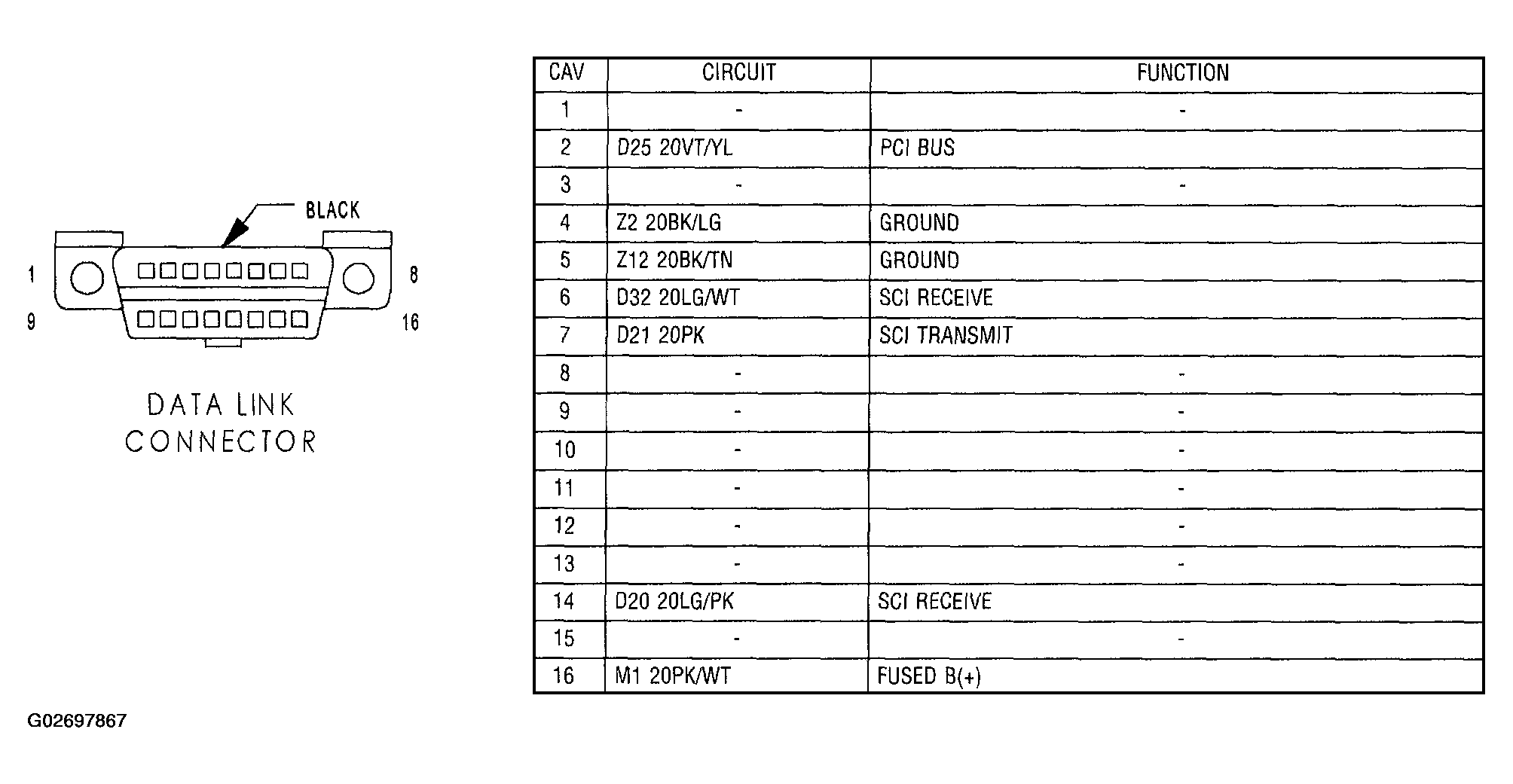

Fig 2: Identifying Connector Pinouts Of Data Link Connector

Courtesy of DAIMLERCHRYSLER CORP.

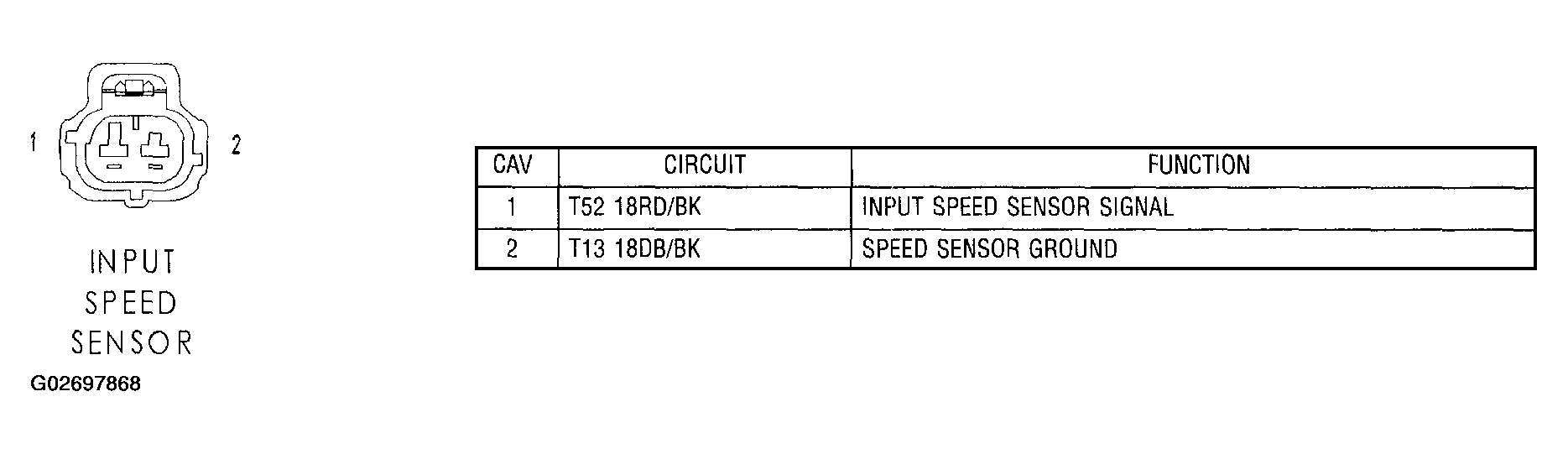

Fig 3: Identifying Connector Pinouts Of Input Speed Sensor

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Connector Pinouts Of Output Speed Sensor

Courtesy of DAIMLERCHRYSLER CORP.

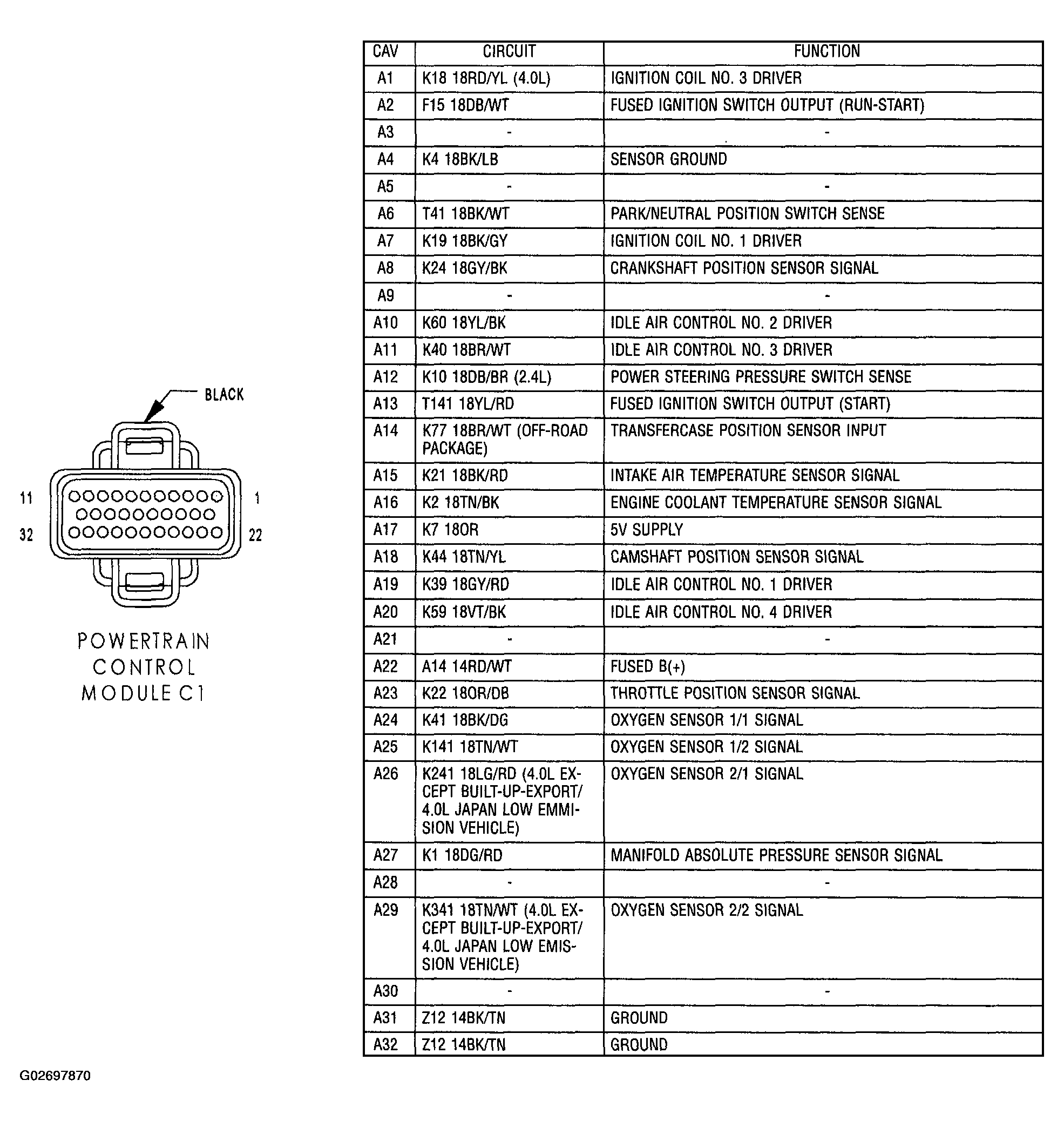

Fig 5: Identifying Connector Pinouts Of Powertrain Control Module C1

Courtesy of DAIMLERCHRYSLER CORP.

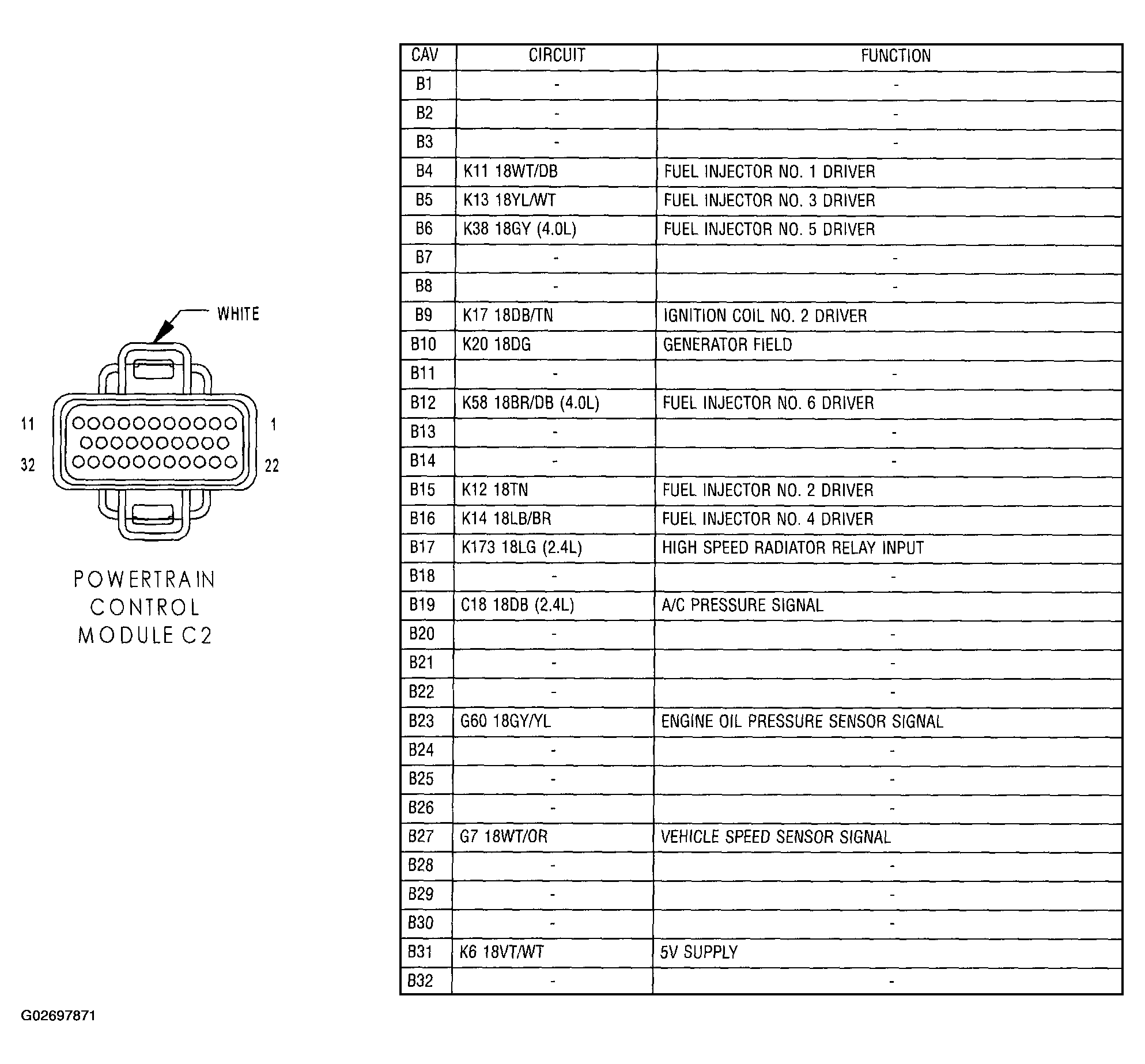

Fig 6: Identifying Connector Pinouts Of Powertrain Control Module C2

Courtesy of DAIMLERCHRYSLER CORP.

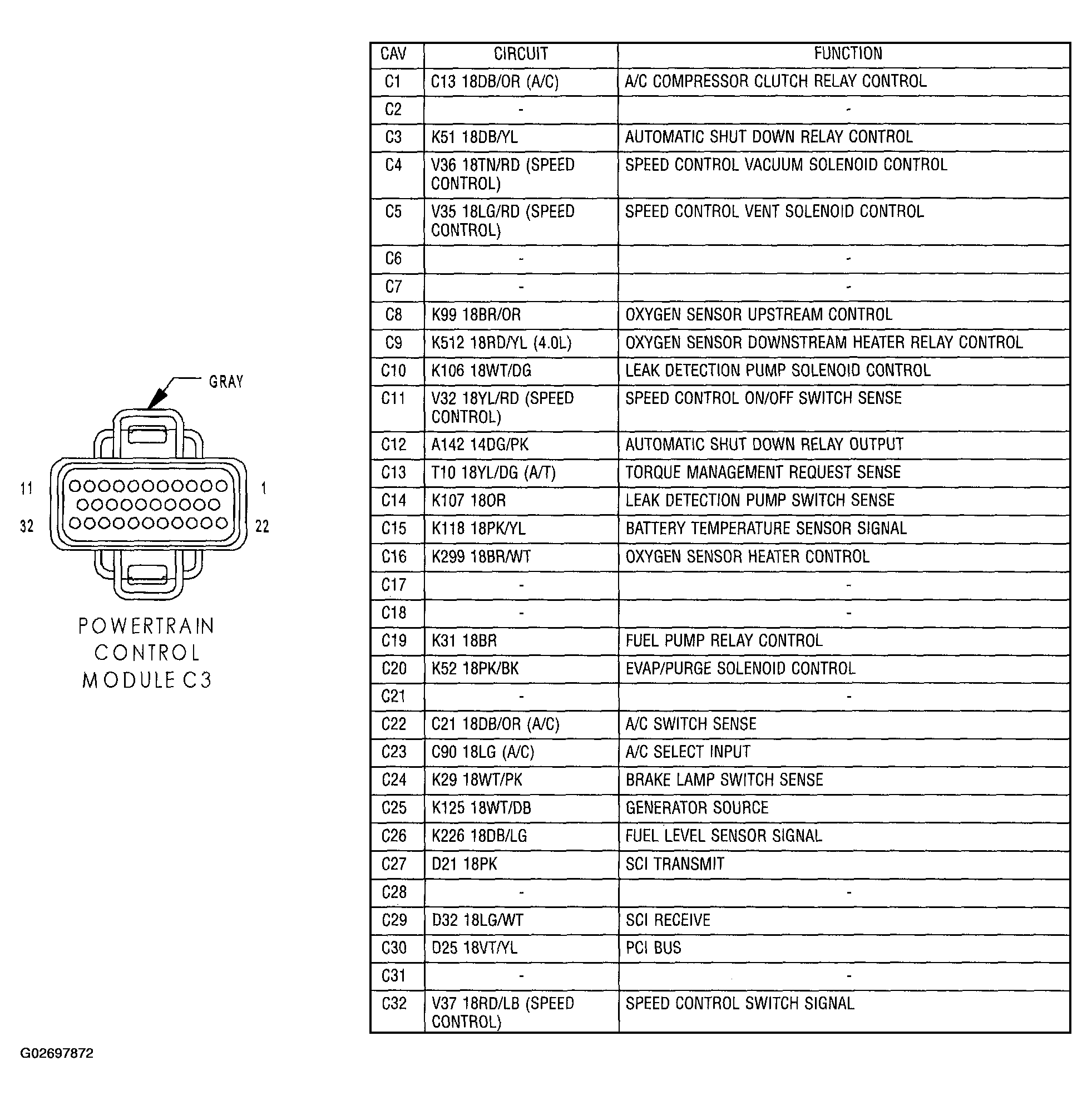

Fig 7: Identifying Connector Pinouts Of Powertrain Control Module C3

Courtesy of DAIMLERCHRYSLER CORP.

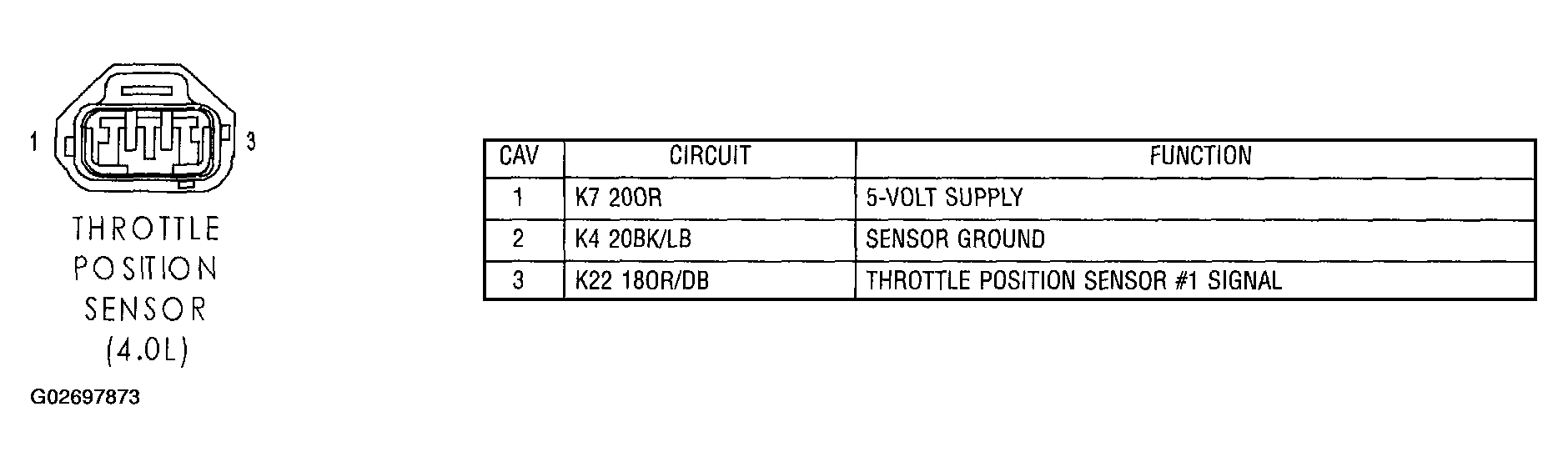

Fig 8: Identifying Connector Pinouts Of Throttle Position Sensor (4.0L)

Courtesy of DAIMLERCHRYSLER CORP.

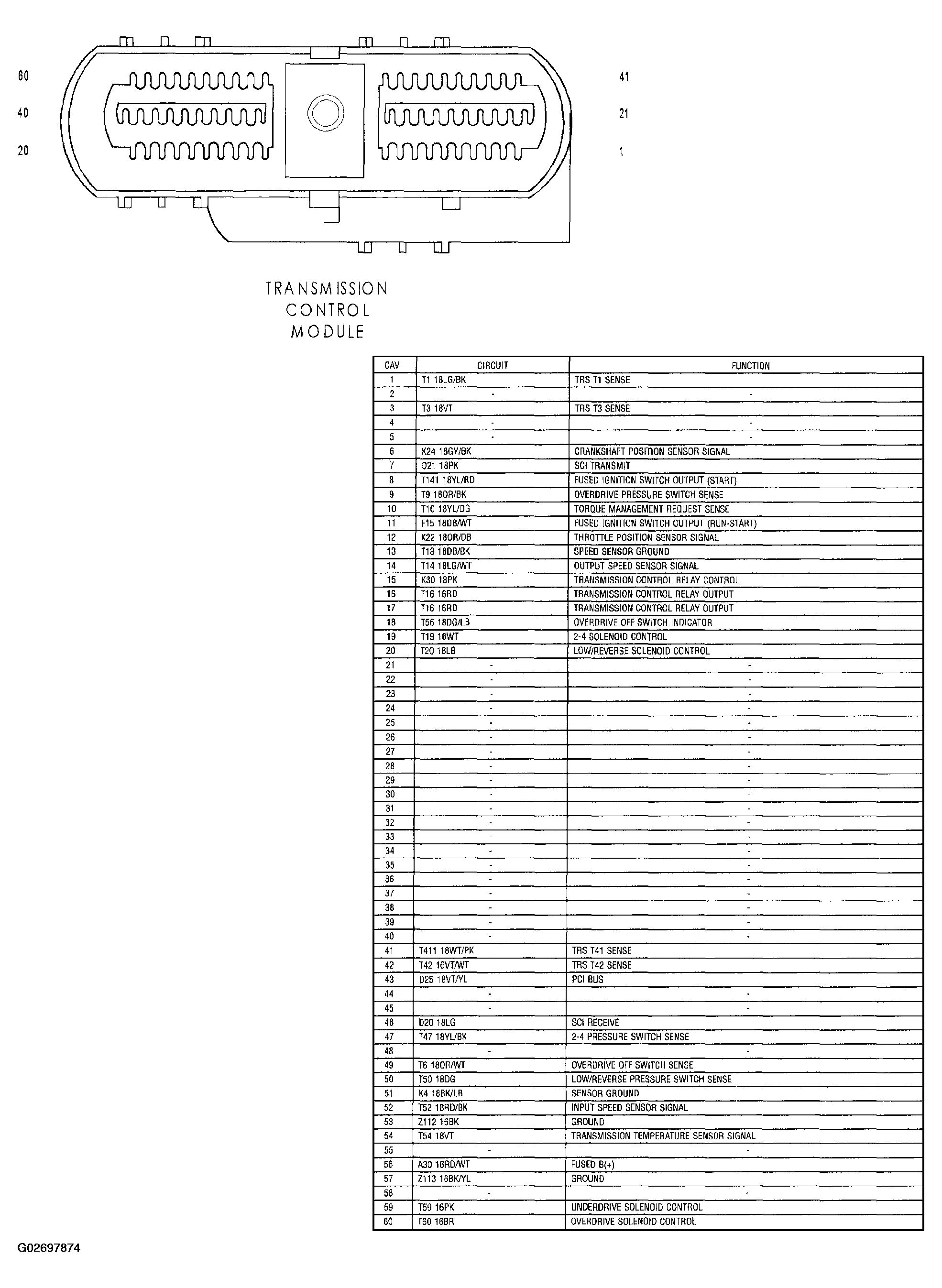

Fig 9: Identifying Connector Pinouts Of Transmission Control Module

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: Identifying Connector Pinouts Of Transmission Control Relay

Courtesy of DAIMLERCHRYSLER CORP.

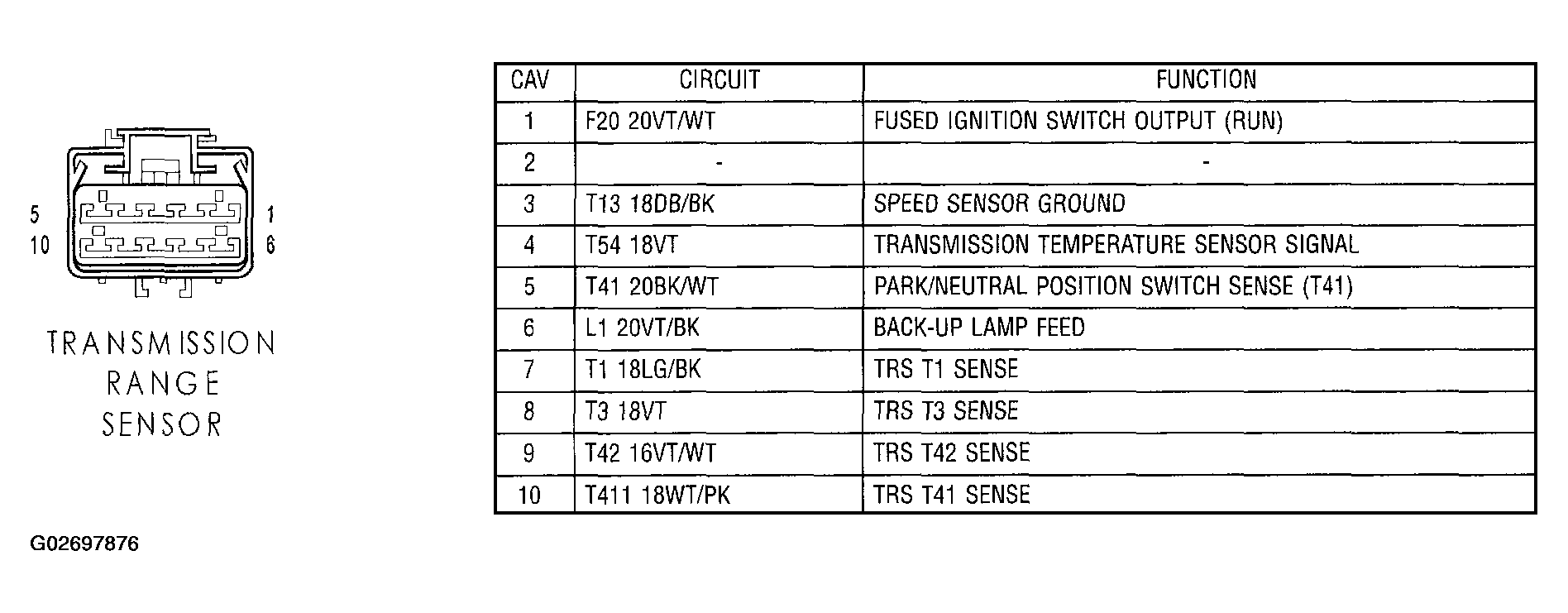

Fig 11: Identifying Connector Pinouts Of Transmission Range Sensor

Courtesy of DAIMLERCHRYSLER CORP.

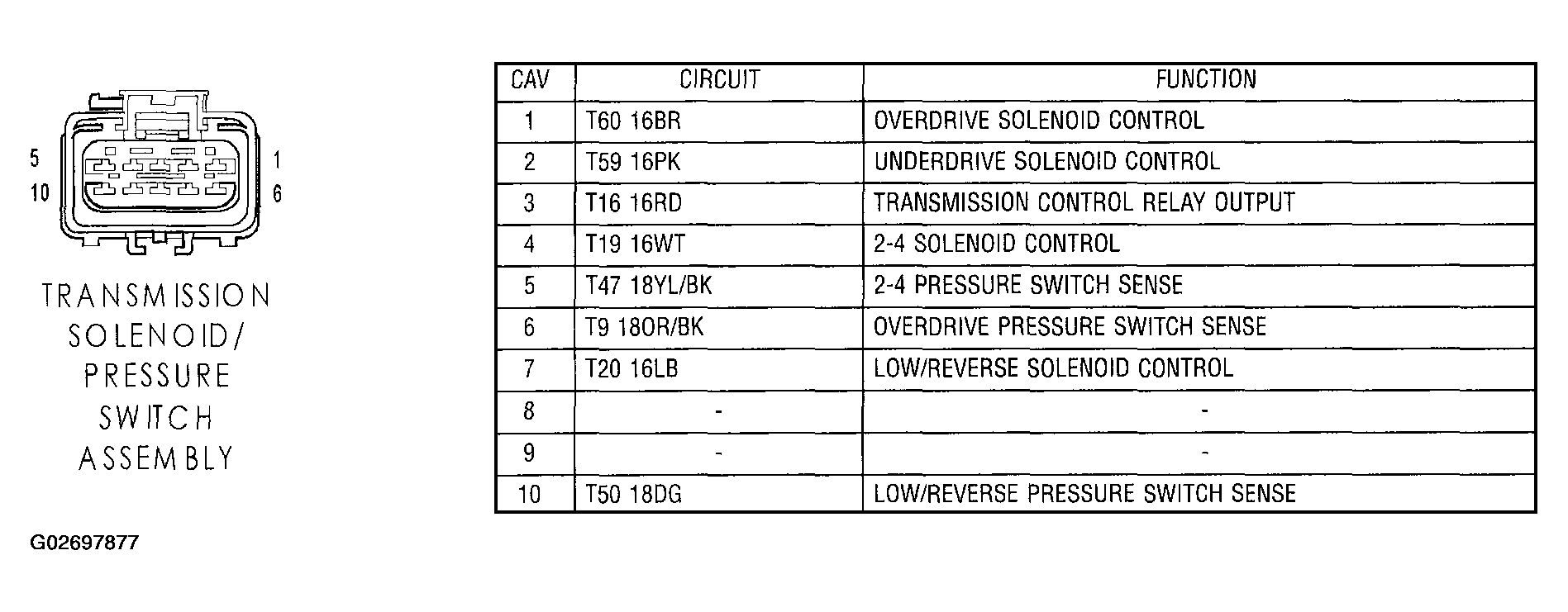

Fig 12: Identifying Connector Pinouts Of Transmission Solenoid/Pressure Switch Assembly

Courtesy of DAIMLERCHRYSLER CORP.
