Coolant Recovery Container: Description

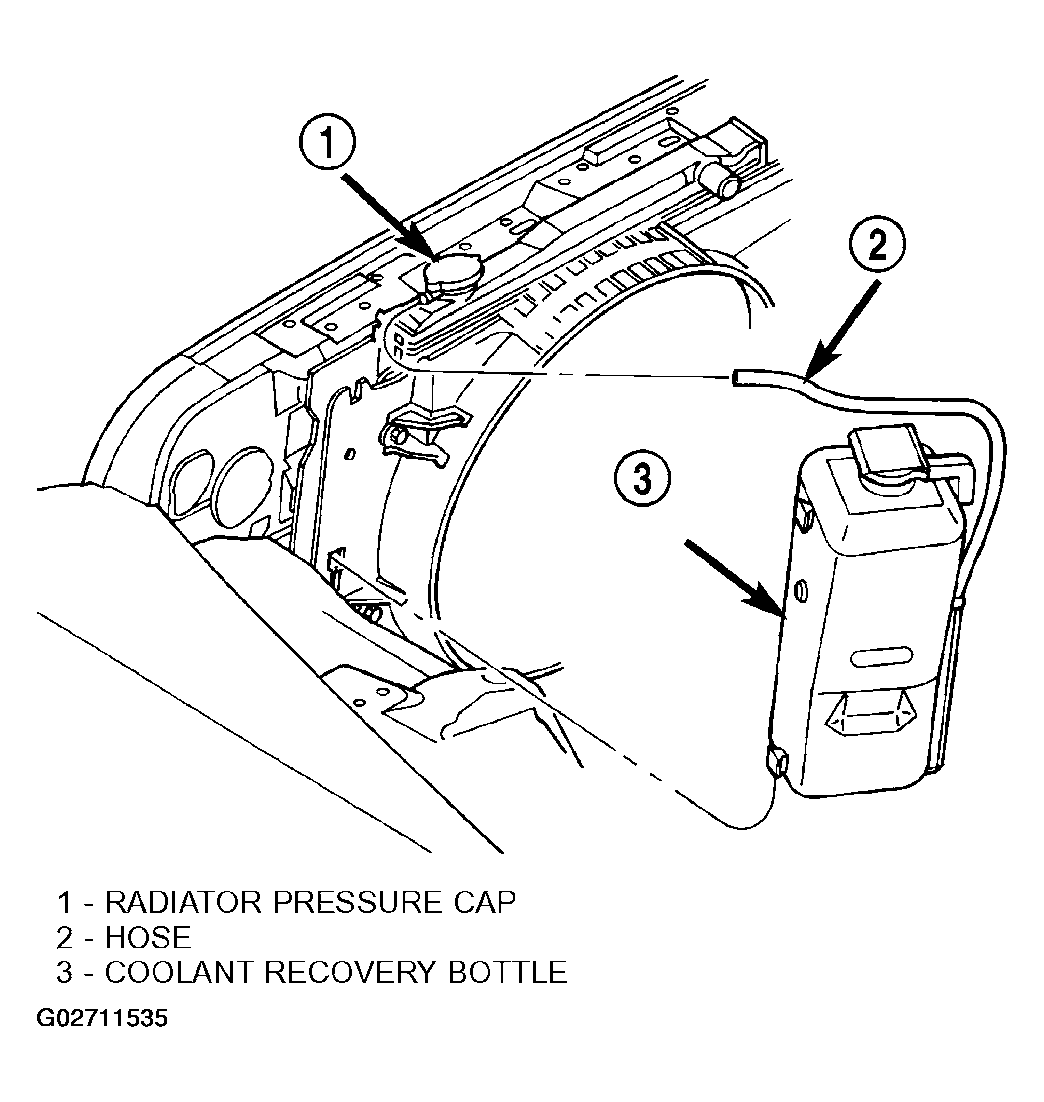

The coolant reserve/overflow system consists of a radiator mounted pressurized cap, a plastic coolant recovery bottle (Fig 1 ), a tube (hose) connecting the radiator and recovery bottle, and an overflow tube on the side of the bottle.
The reservoir bottle also has an anti-slosh insert located within the bottle, this insert will aid in reducing coolant loss from splash and spillage.
