Transmission Control Module Connector End View

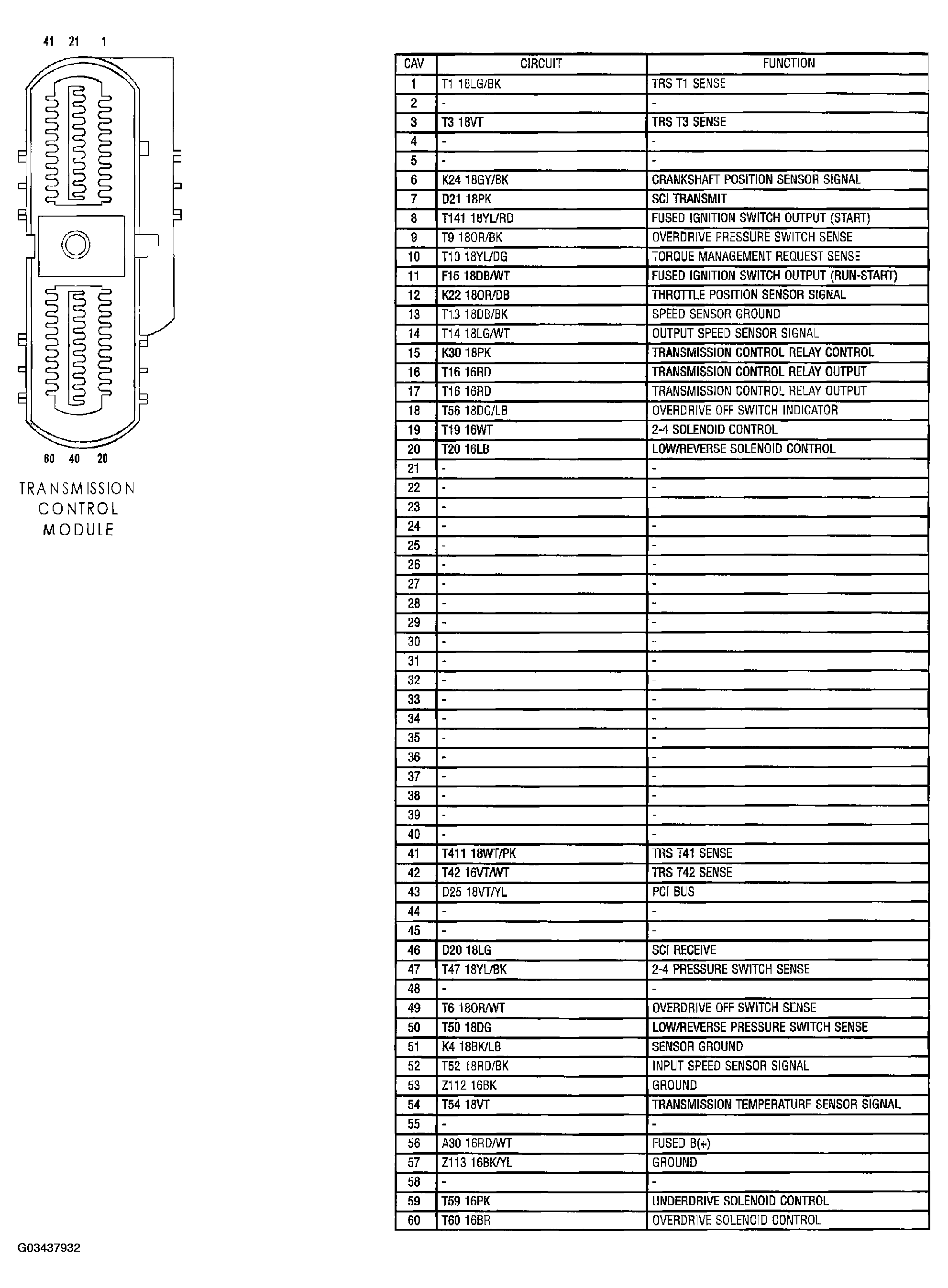

Fig 1: Transmission Control Module Connector End View

G03437932

Courtesy of DAIMLERCHRYSLER CORP.
