Pilot Bearing: Installation
- Lubricate new bearing with Mopar high temperature bearing grease or equivalent.

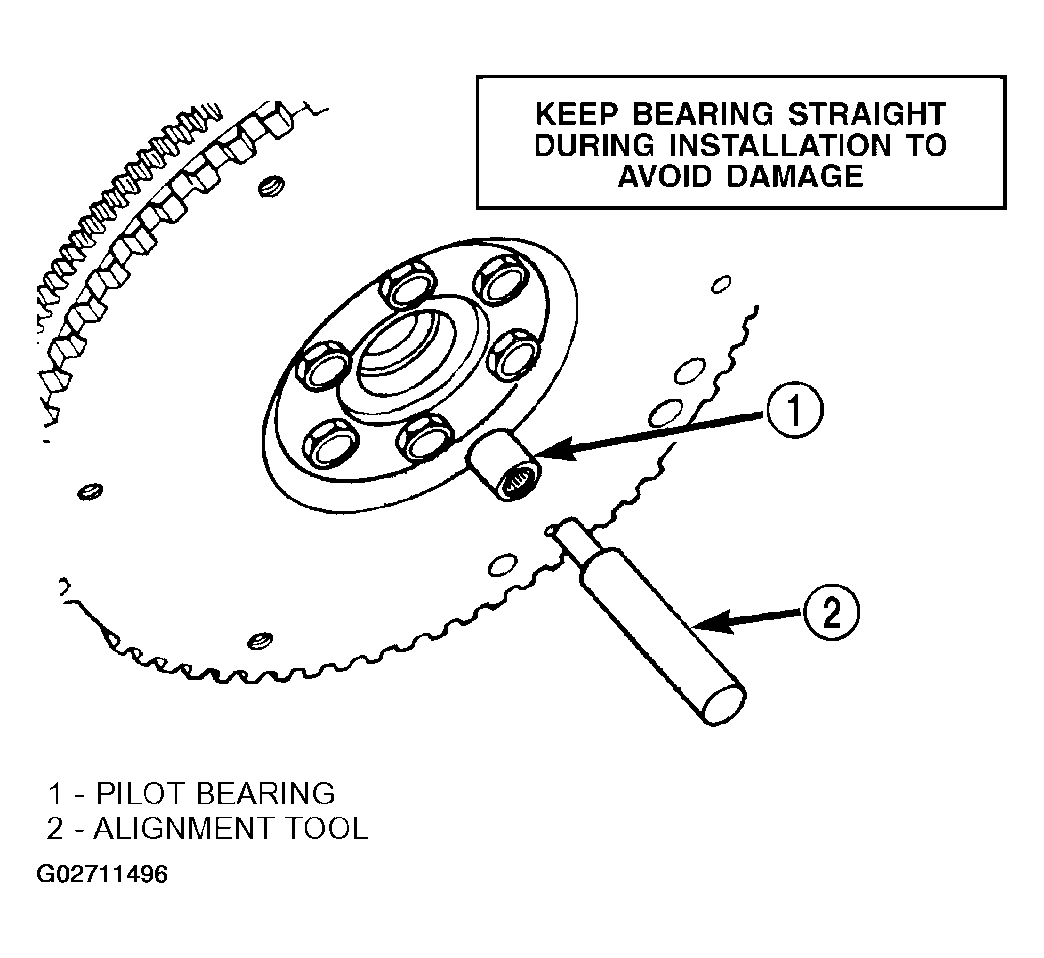

- Start new bearing into crankshaft by hand. Then seat bearing with clutch alignment tool (Fig 1 ).
- Lightly scuff sand flywheel surface with 180 grit emery cloth. Then clean surface with wax and grease remover.
- Install clutch disc and pressure plate.
- Install the transmission.
