Steering System Linkage: Linkage: Description

The steering linkage consists of a pitman arm, drag link, tie rod, and steering dampener (Fig 1 ). Adjustment sleeves are used on the tie rod and drag link for toe and steering wheel alignment.

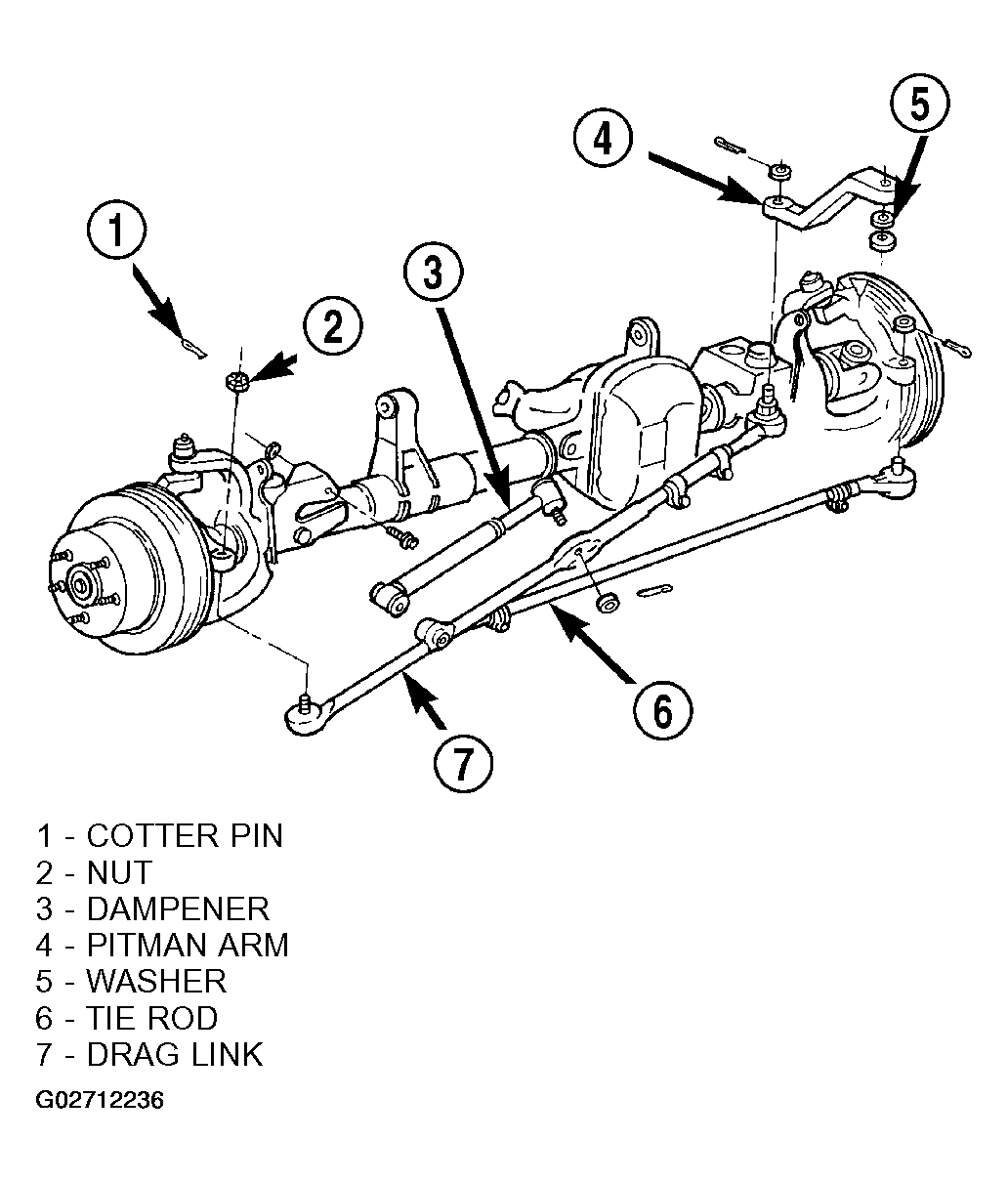

Fig 1: Identifying Steering Linkage Components

Courtesy of DAIMLERCHRYSLER CORP.

The service procedures and torque specifications are the same for LHD and RHD vehicles.
