Power Distribution Center Fuses & Fuse Circuit Identification

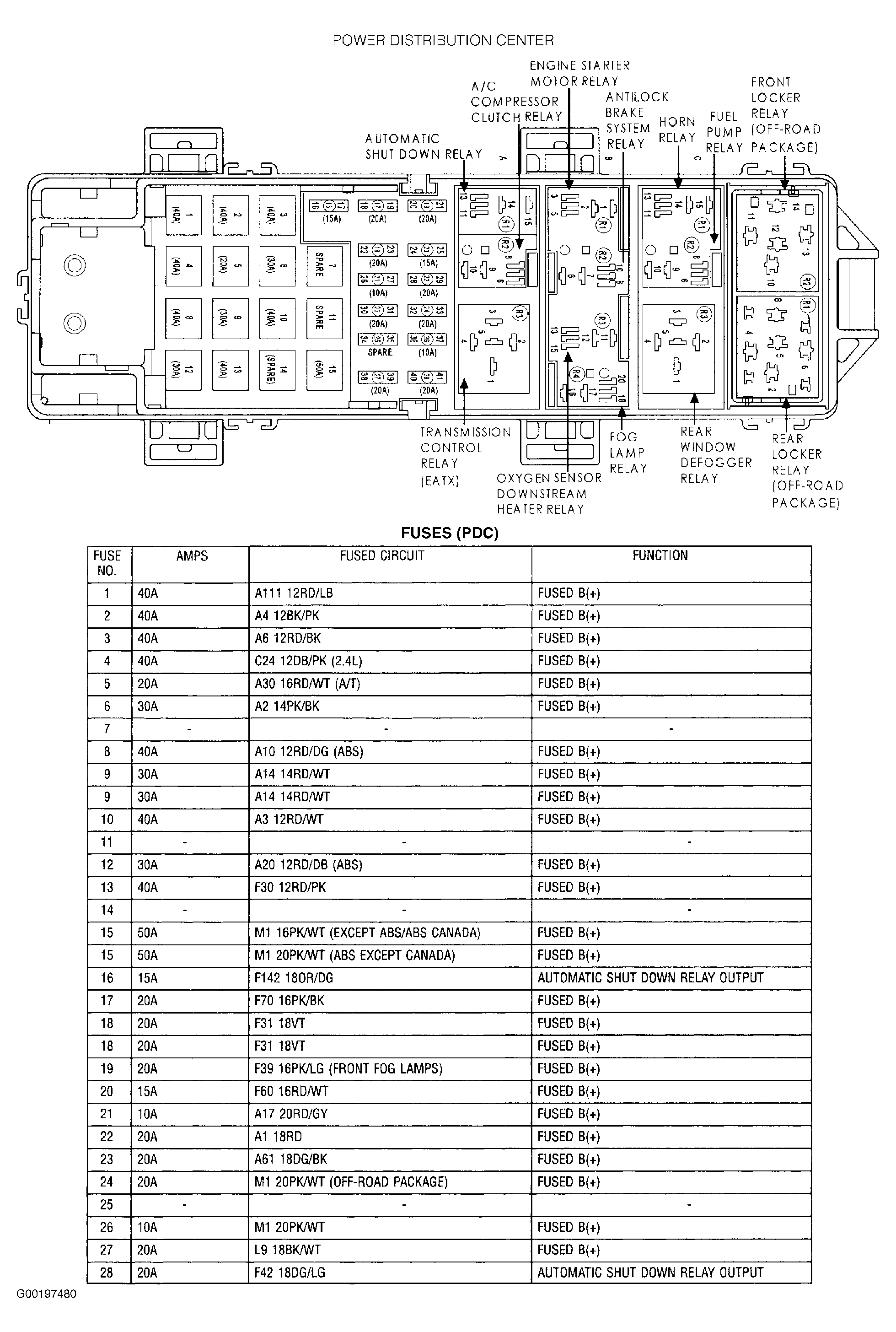

Fig 1: Identifying Power Distribution Center Fuses & Fuse Circuits

G00197480

Courtesy of CHRYSLER CORP.
