Home >> Jeep >> 2003 >> Wrangler SE, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Connector Identification >> Park/Neutral Position Switch Connector End View (A/T)

Park/Neutral Position Switch Connector End View (A/T)

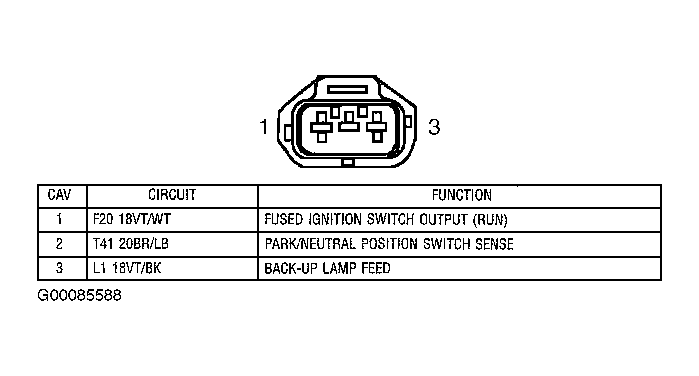

Fig 1: Identifying Park/Neutral Position Switch (A/T)

G00085588

Courtesy of DAIMLERCHRYSLER CORPORATION
