Leak Detection Pump Harness Connector End View

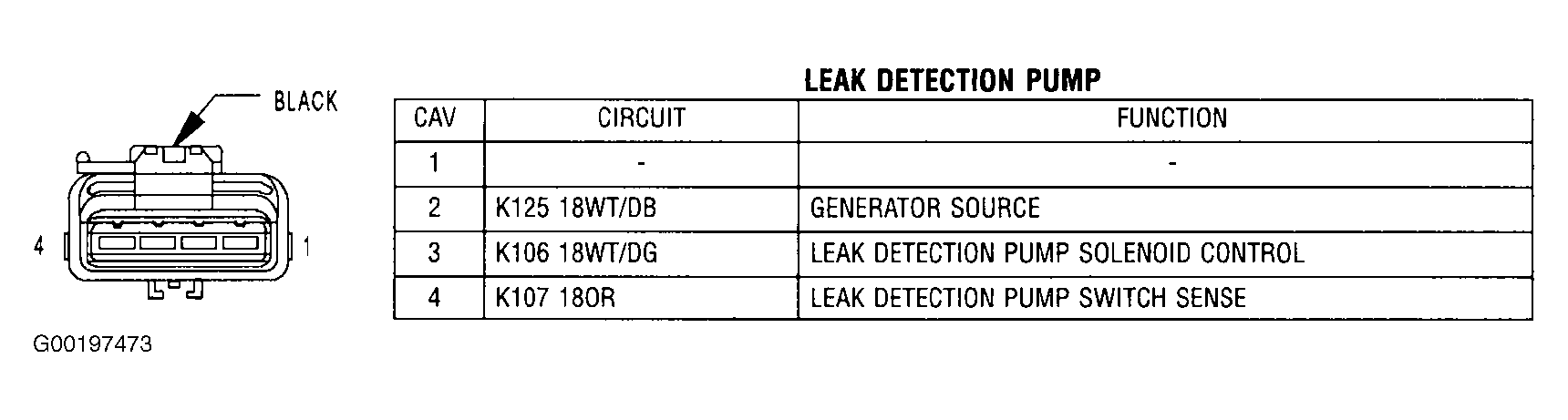

Fig 1: Identifying Leak Detection Pump Harness Connector

G00197473

Courtesy of CHRYSLER CORP.
