Back-Up Light Switch (M/T) Connector End View

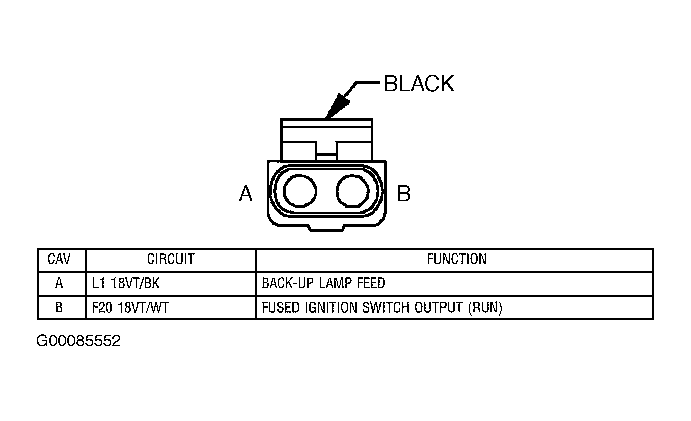

Fig 1: Identifying Back-Up Light Switch (M/T)

G00085552

Courtesy of DAIMLERCHRYSLER CORPORATION
