Fuse Block

NOTE: Fuse block is located behind the glove box. See Fig 1 .

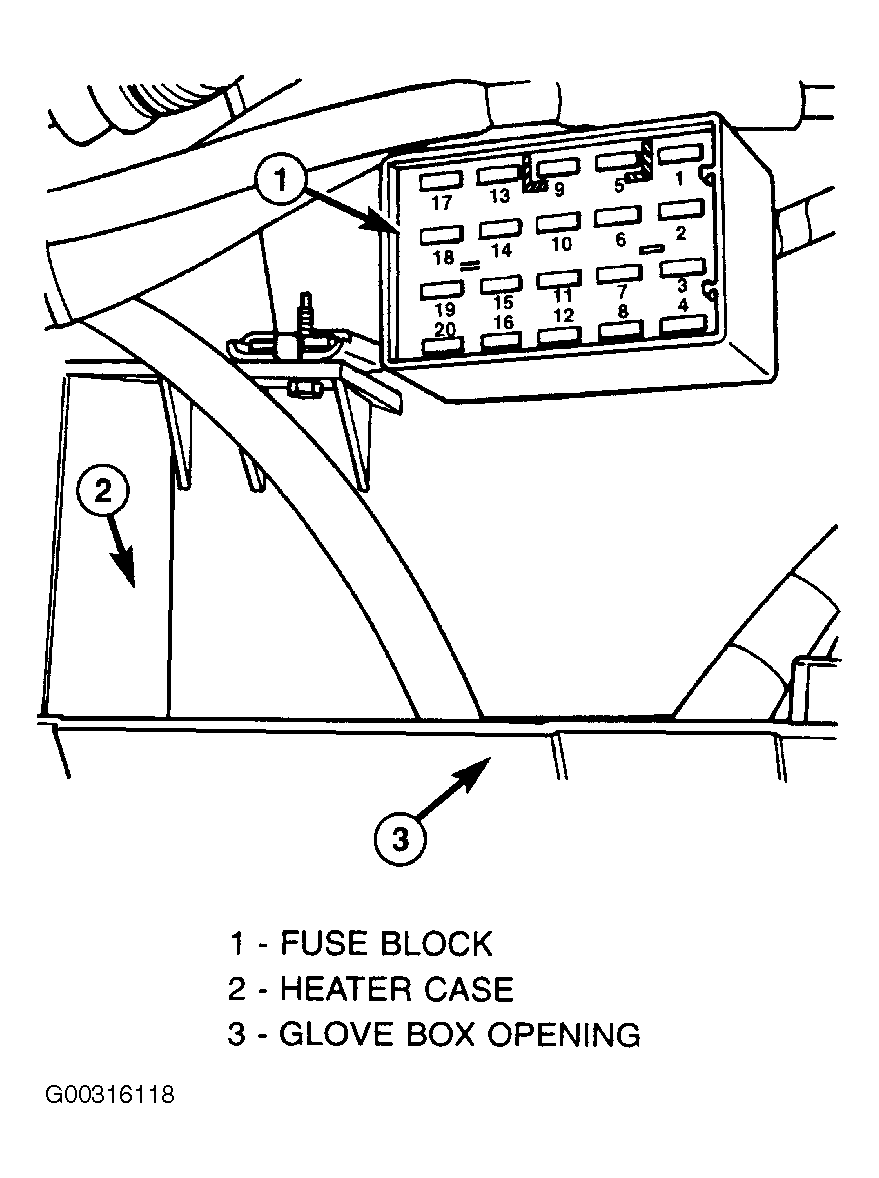

Fig 1: Locating Fuse Block

Courtesy of DAIMLERCHRYSLER CORPORATION

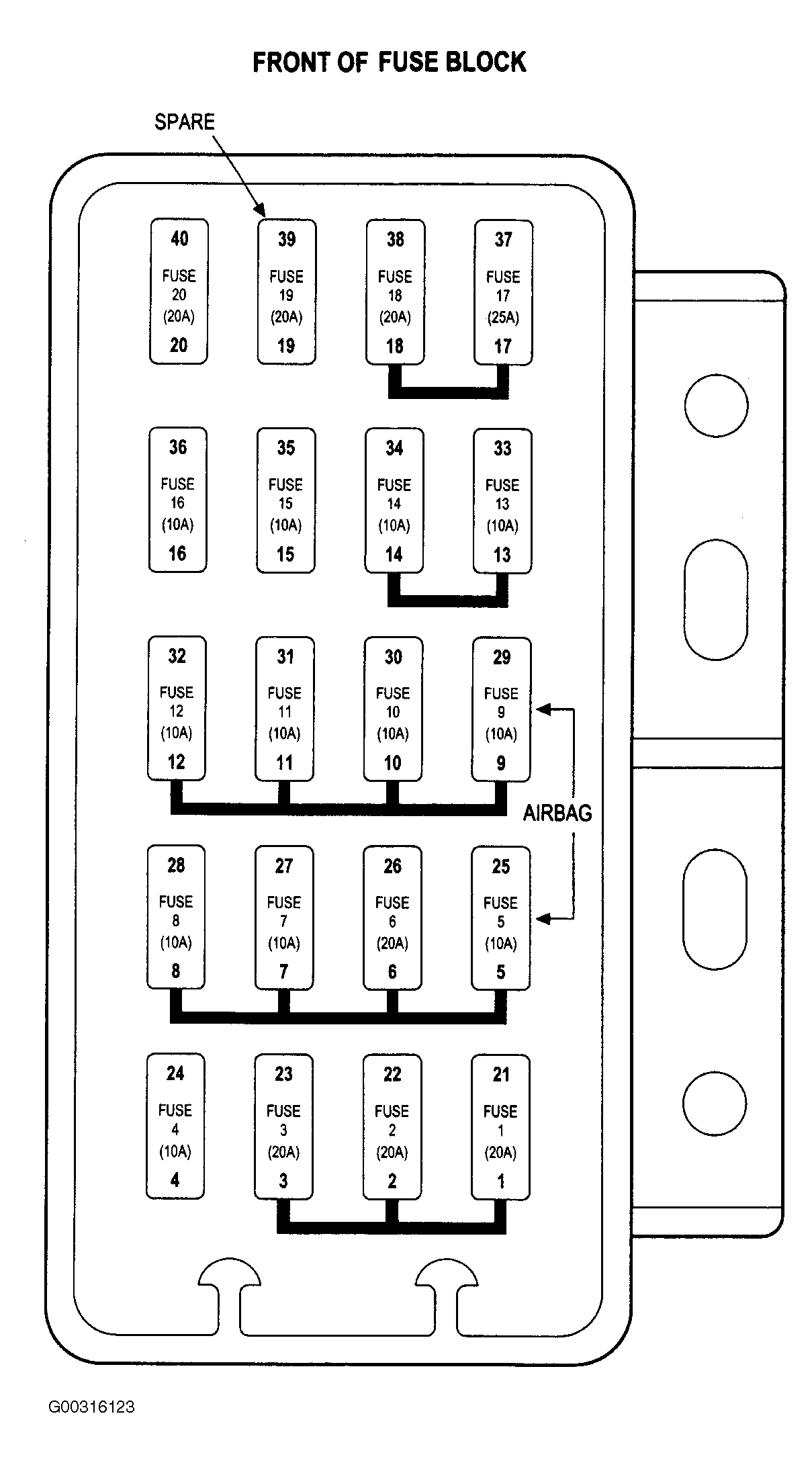

Fig 2: Identifying Fuse Block Components

Courtesy of DAIMLERCHRYSLER CORPORATION

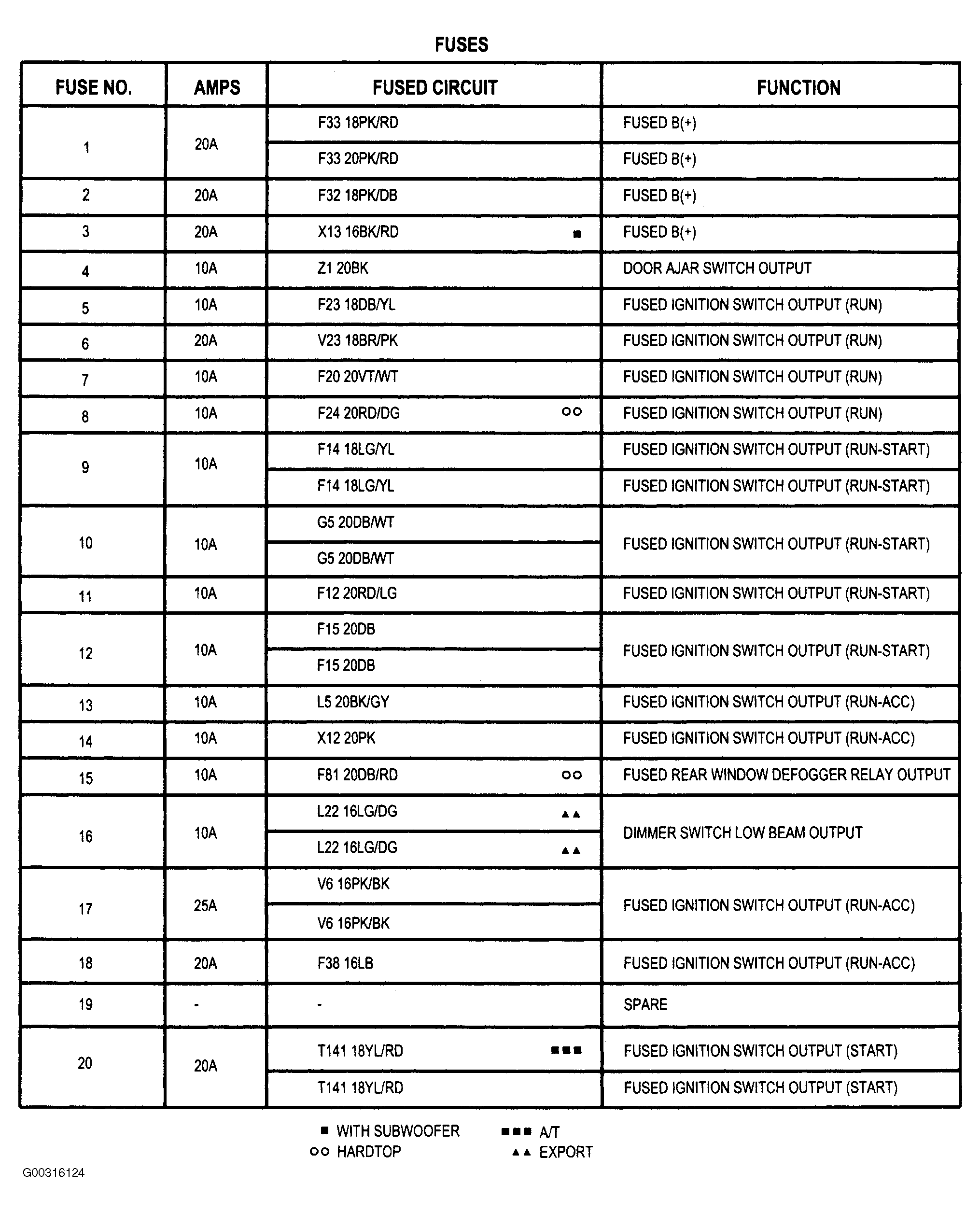

Fig 3: Fuse Block Legend

Courtesy of DAIMLERCHRYSLER CORPORATION
