Battery Tray: Removal
- Remove the battery from the battery tray (Refer to BATTERY - REMOVAL
).
- Remove the battery temperature sensor from the battery tray (Refer to
BATTERY TEMPERATURE SENSOR - REMOVAL
).

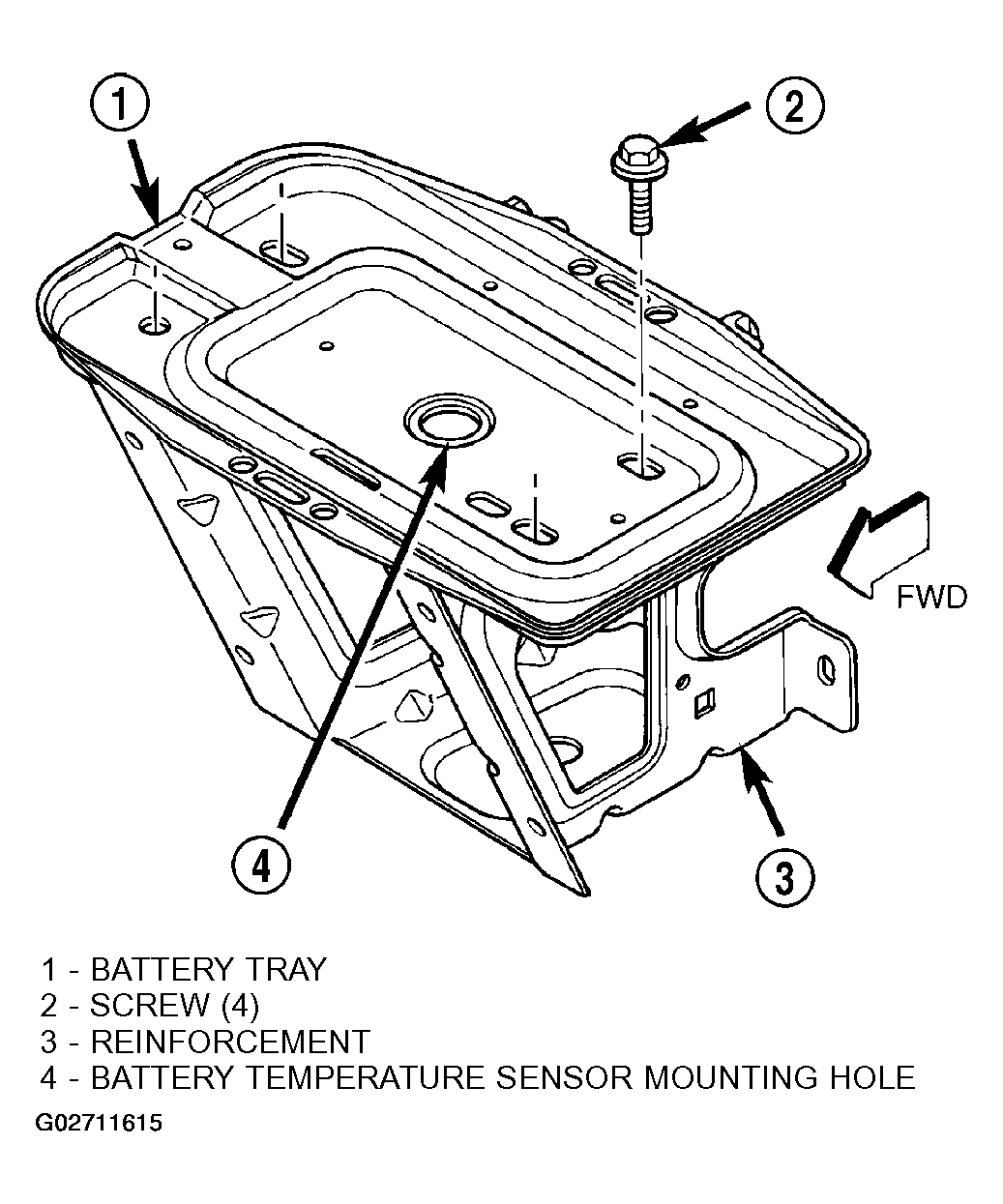

- Remove the four screws with washers that secure the battery tray to the reinforcement located between the dash panel and the rear of the front wheelhouse inner panel in the engine compartment (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the battery tray from the reinforcement in the engine compartment.
