Sentry Key Immobilizer Module: Description

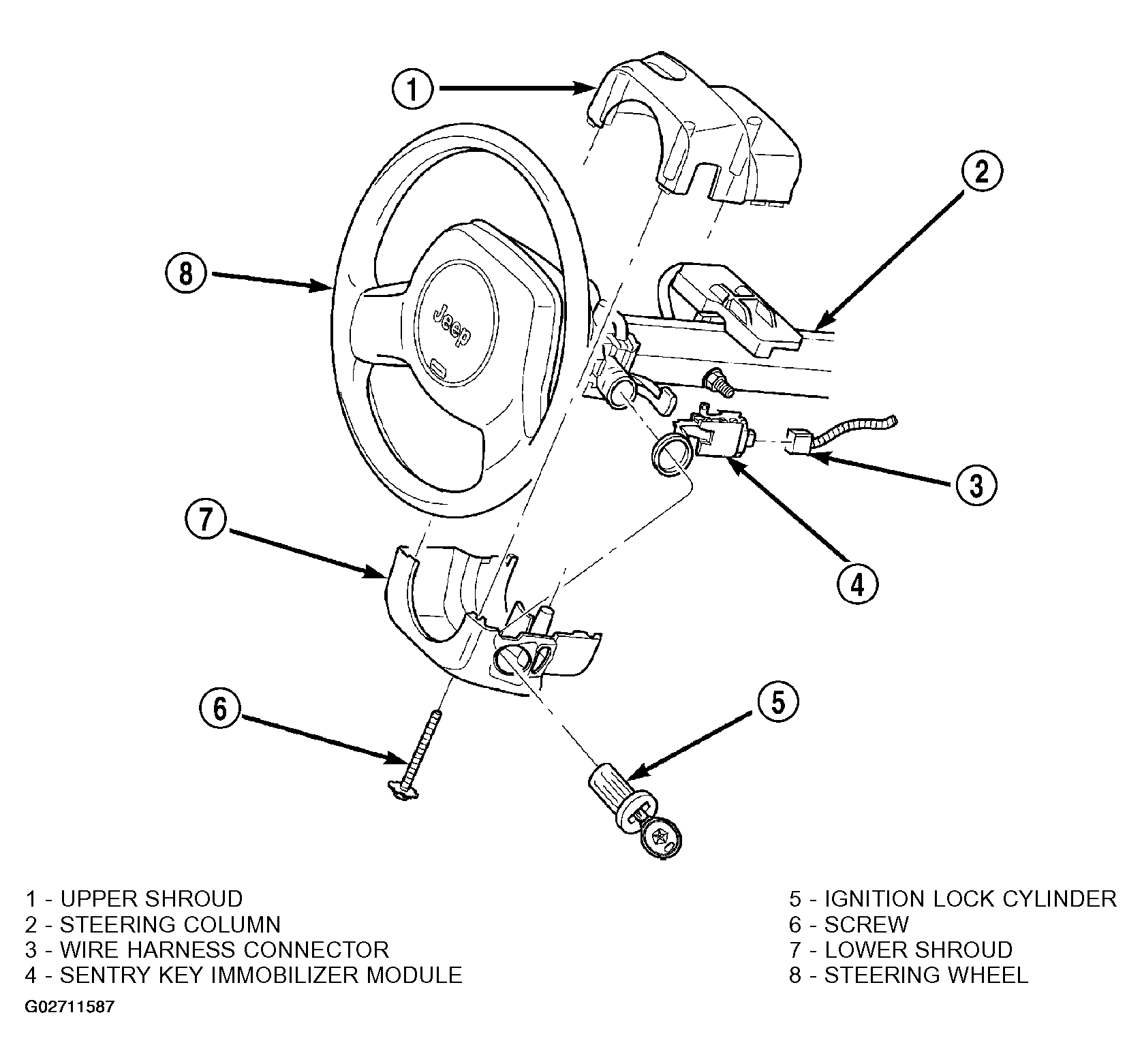

The Sentry Key Immobilizer Module (SKIM) is the primary component of the Sentry Key Immobilizer System (SKIS) (Fig 1). The SKIM is located in the steering column, below the ignition lock cylinder housing. The SKIM has an integral halo-like antenna ring that extends from one end. When the SKIM is properly installed on the steering column, the antenna ring is oriented around the circumference of the ignition lock cylinder housing.
The SKIM cannot be adjusted or repaired. If faulty or damaged, the entire SKIM unit must be replaced.
