Connector Identification
>>
Radiator Fan Motor Relay Harness Connector End View (2.4L)
Radiator Fan Motor Relay Harness Connector End View (2.4L)

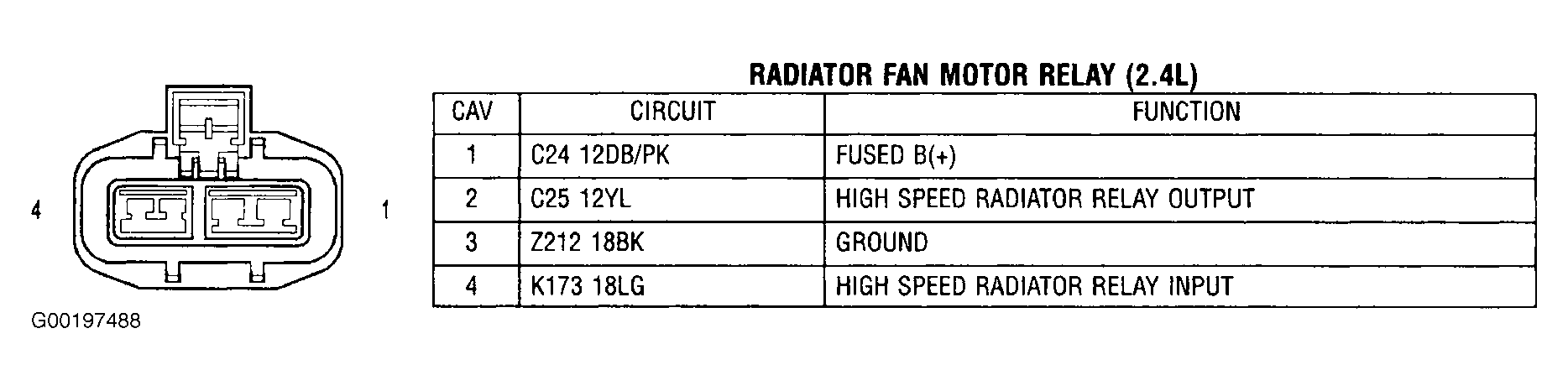

Fig 1: Identifying Radiator Fan Motor Relay Harness Connector (2.4L)
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
