Fuel Injectors: Removal

  1. Remove fuel rail. Refer to FUEL RAIL/FUEL DAMPER (2.4L)  or FUEL RAIL (4.0L)  .
  2. Disconnect clip(s) that retain fuel injectors to fuel rail. See Fig 1.

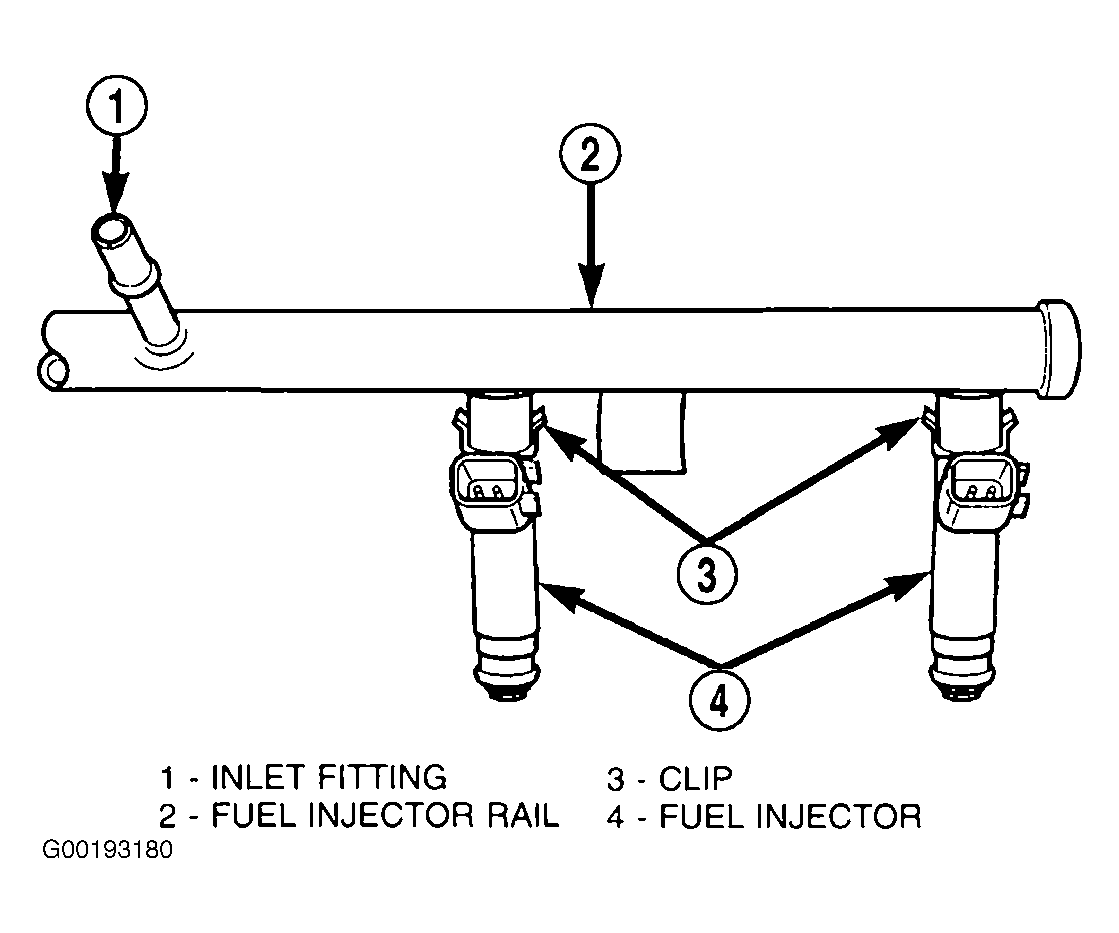

Fig 1: Fuel Injector Mounting
G00193180Courtesy of CHRYSLER CORP.
