Vibration Damper: Installation

  1. Install crankshaft vibration damper using M12 1.75 x 150 mm bolt, washer, thrust bearing and nut from Special Tool 6792 (Fig 1).

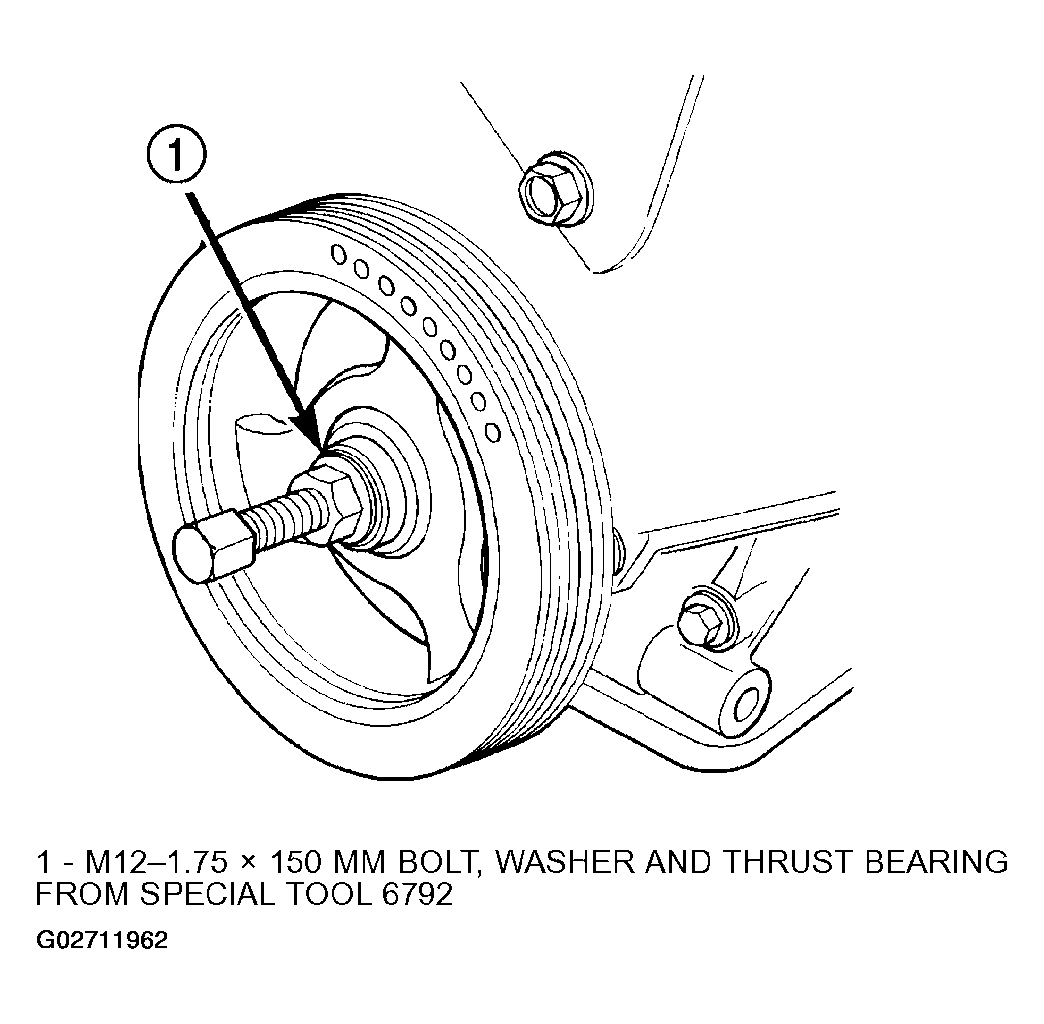

    Fig 1: Installing Crankshaft Vibration Damper - Typical
    G02711962Courtesy of DAIMLERCHRYSLER CORP.
  2. Install crankshaft vibration damper bolt and tighten to 142 N.m (105 ft. lbs.).
  3. Install accessory drive belts. (Refer to DRIVE BELTS - INSTALLATION ).
