Front Mount: Installation

  1. Install the insulator mount assembly (Fig 1) and (Fig 2).

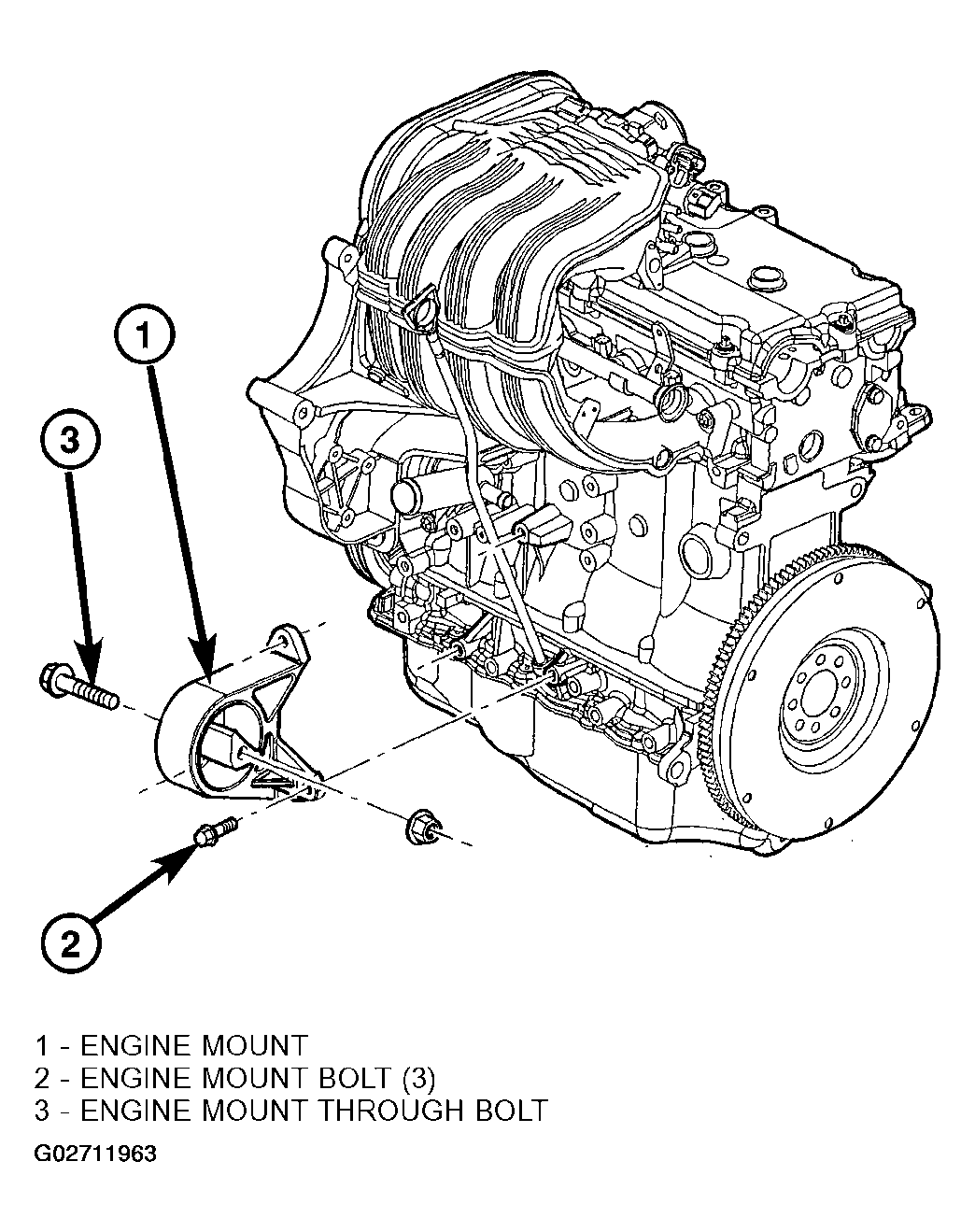

    Fig 1: Installing LH Engine Mount Assembly
    G02711963Courtesy of DAIMLERCHRYSLER CORP.

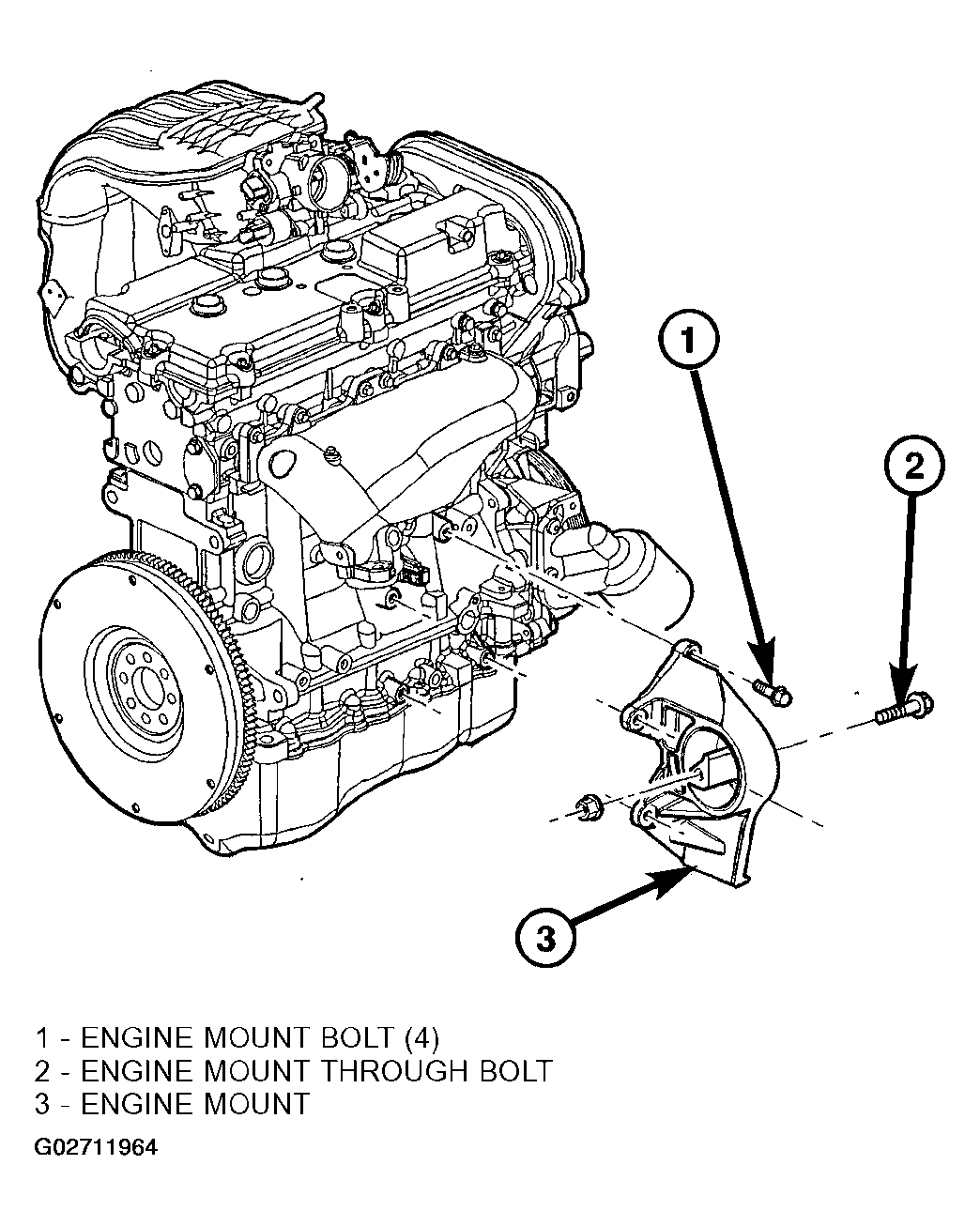

    Fig 2: Installing RH Engine Mount Assembly
    G02711964Courtesy of DAIMLERCHRYSLER CORP.
  2. Tighten the mount to engine bolts.
  3. Loosely install the front engine mount through bolt to the insulator.
  4. Lower the engine.
  5. Tighten the through bolt.
  6. Lower the vehicle.
