Coolant Recovery Container: Removal

  1. Disconnect the hose from radiator filler neck.
  2. Remove coolant recovery bottle (Fig 1 ).

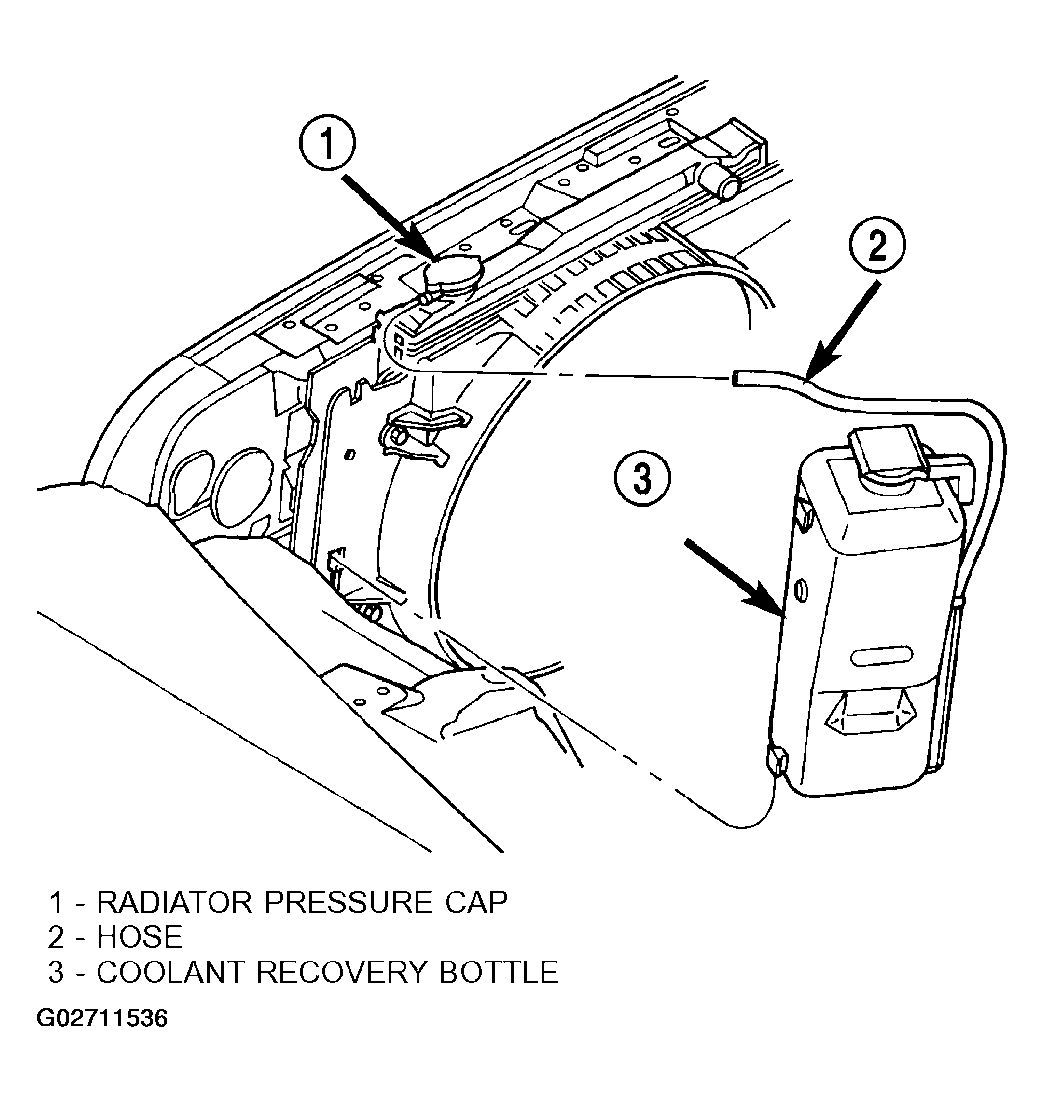

    Fig 1: Removing Coolant Reserve/Overflow Bottle
    G02711536Courtesy of DAIMLERCHRYSLER CORP.
