Vehicle Speed Sensor Connector End View

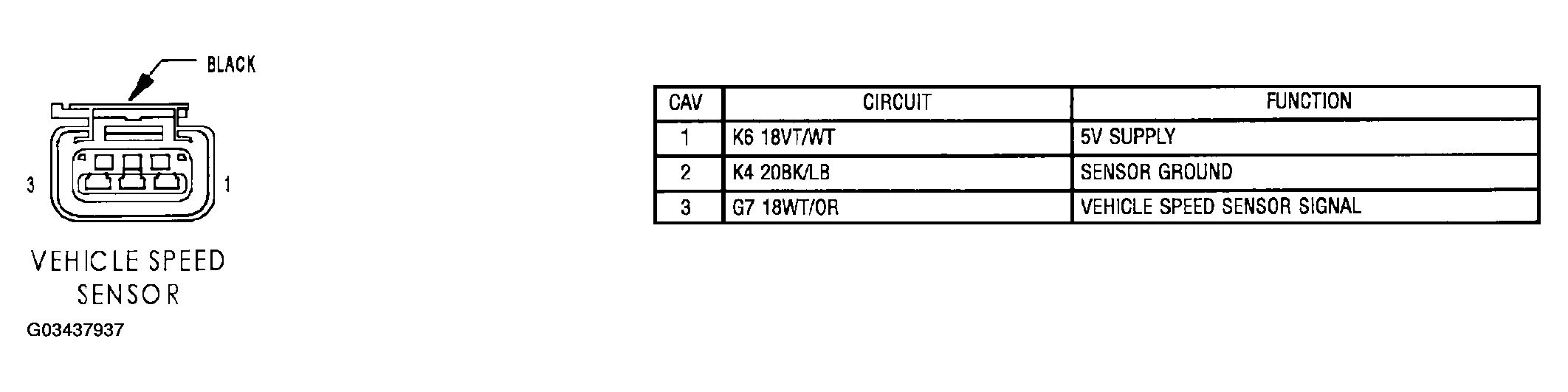

Fig 1: Vehicle Speed Sensor Connector End View

G03437937

Courtesy of DAIMLERCHRYSLER CORP.
