Antilock Brake Controller Connector End View

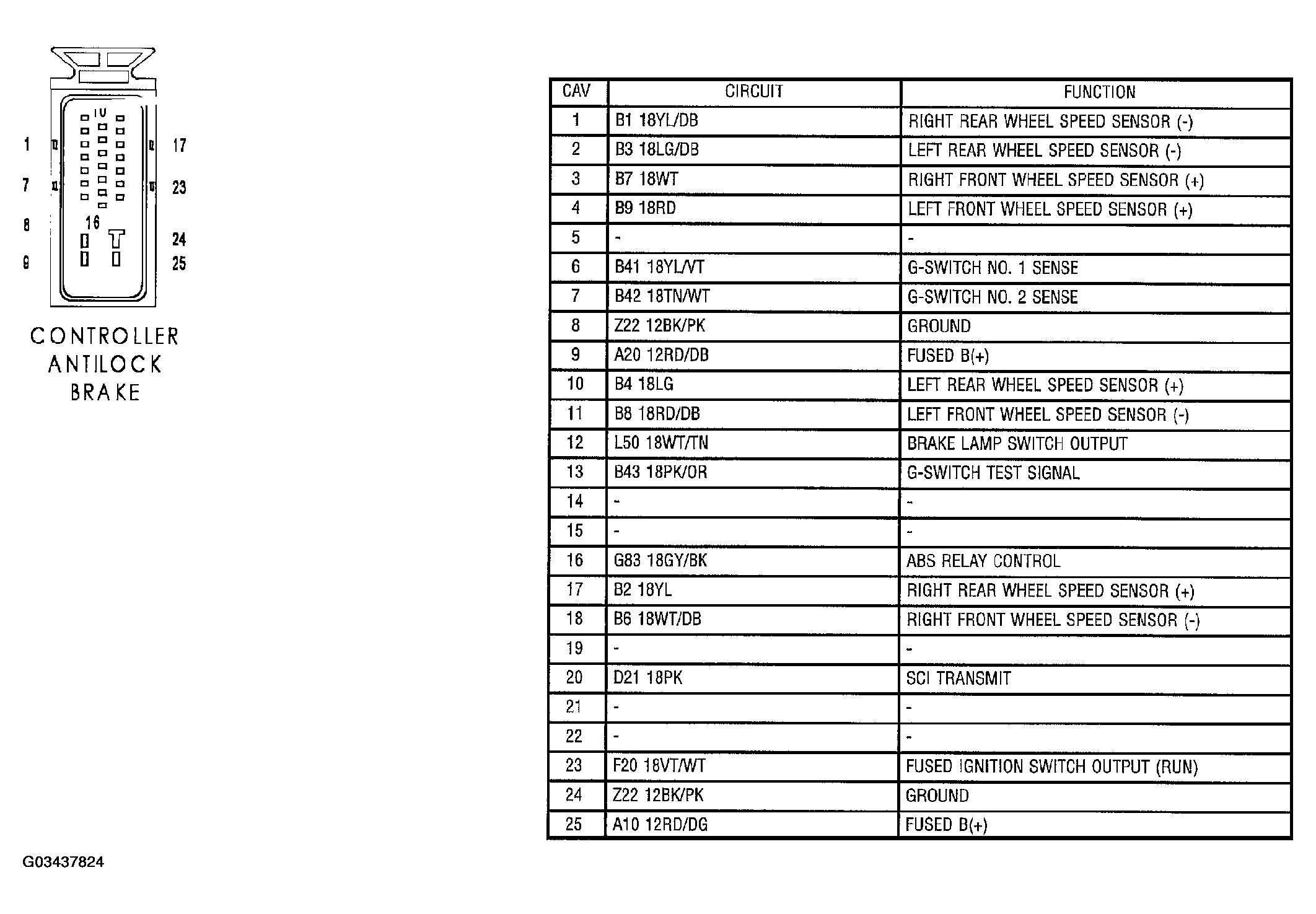

Fig 1: Antilock Brake Controller Connector End View

G03437824

Courtesy of DAIMLERCHRYSLER CORP.
