Window Regulator: Removal

  1. Remove door glass. (Refer to DOOR GLASS - REMOVAL  ).
  2. Loosen the bolts in the slotted holes (Fig 1 ).

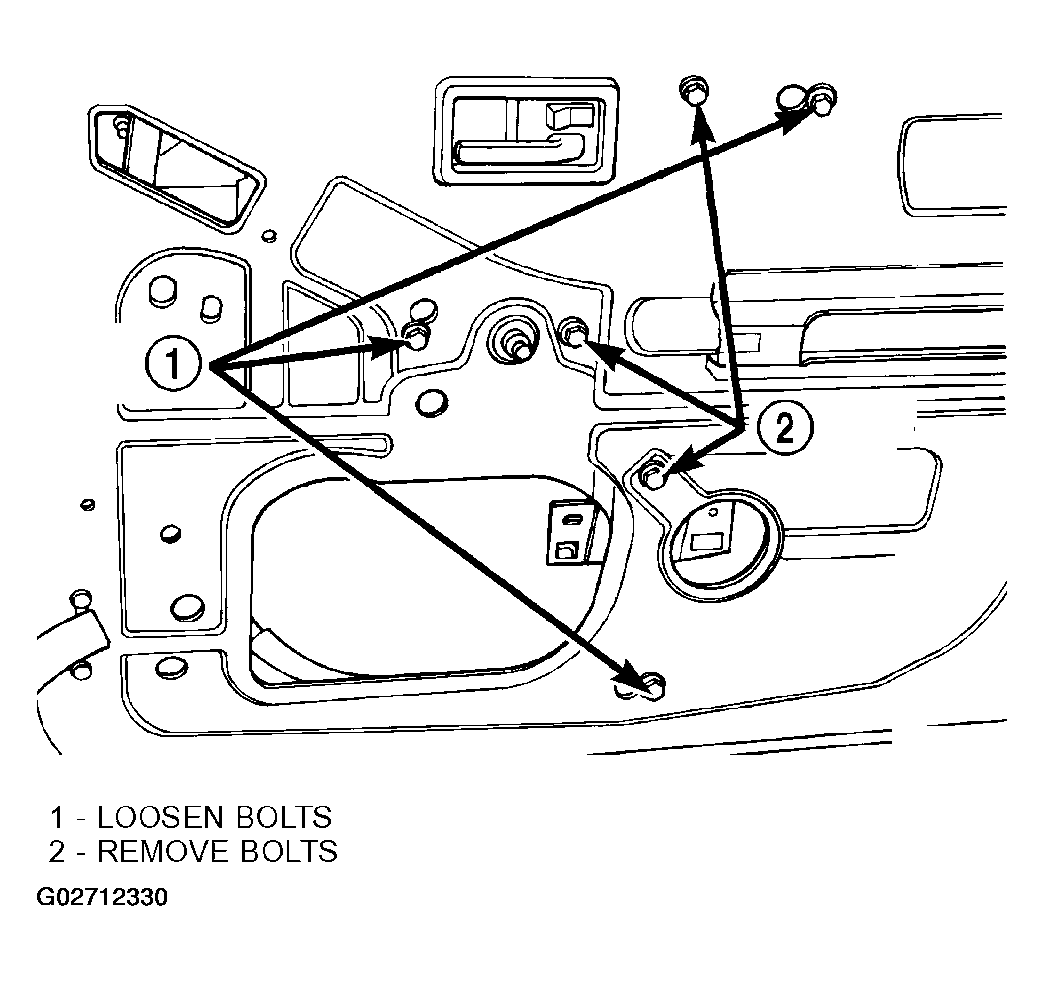

    Fig 1: Loosening Window Regulator Bolts
    G02712330Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the bolts attaching the regulator to the door inner panel.
  4. Lift the regulator upward to free it from the slotted holes in the door inner panel.
  5. Lower the regulator and remove it through the access hole in the door inner panel (Fig 2 ).

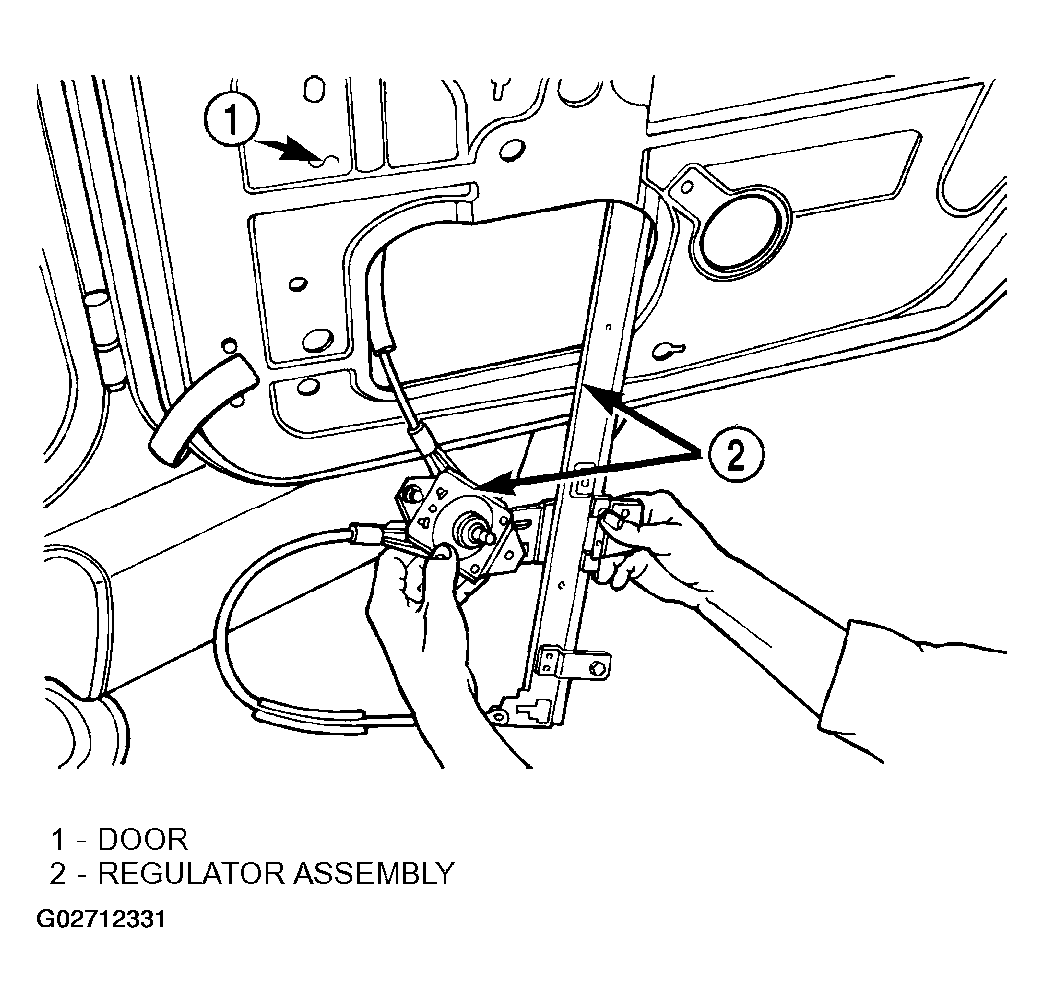

    Fig 2: Removing Regulator
    G02712331Courtesy of DAIMLERCHRYSLER CORP.
