Key Cylinder: Removal

The ignition key must be in the key cylinder for cylinder removal. The key cylinder must be removed first before removing ignition switch.

1. If equipped with an automatic transmission, place shifter in PARK position.
2. Rotate key to ON position.
3. A release tang is located on bottom of key cylinder (Fig 1 ).

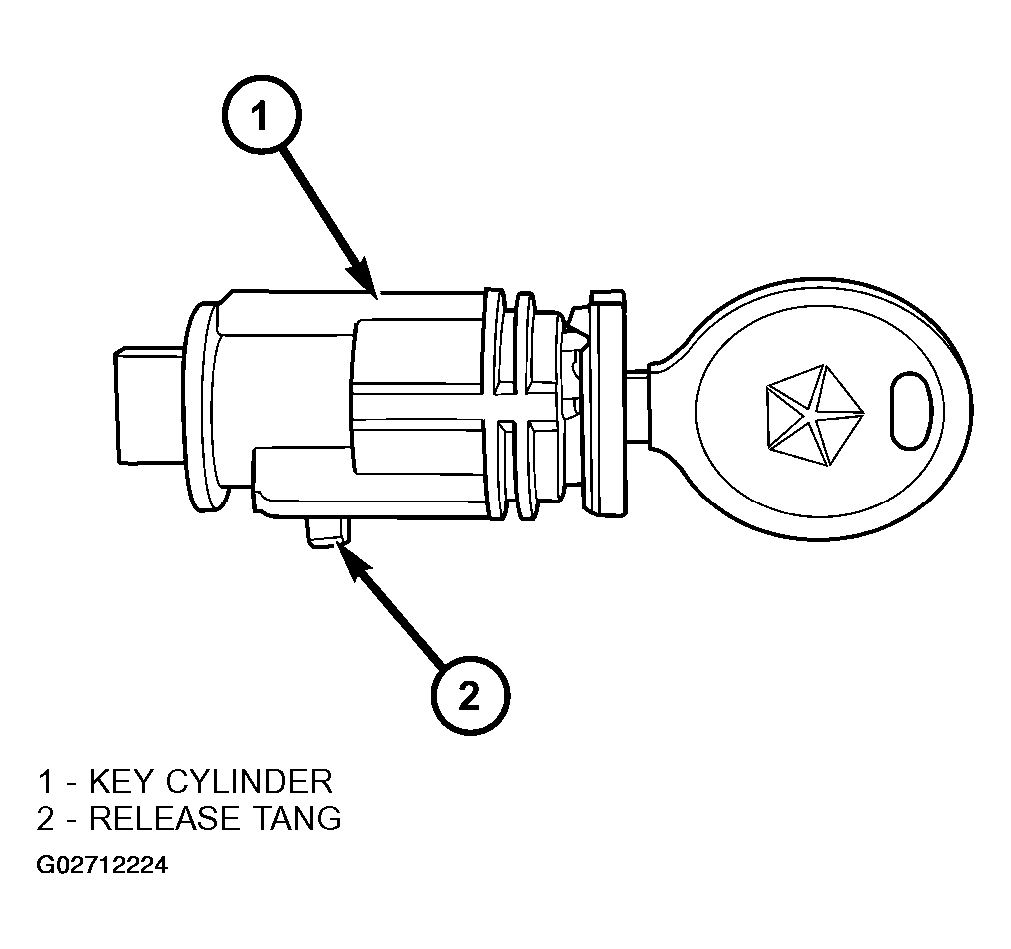

   Fig 1: Identifying Key Cylinder Release Tang

   Courtesy of DAIMLERCHRYSLER CORP.
4. Position a small screwdriver or pin punch into tang access hole on bottom of steering column lower cover (Fig 2 ).

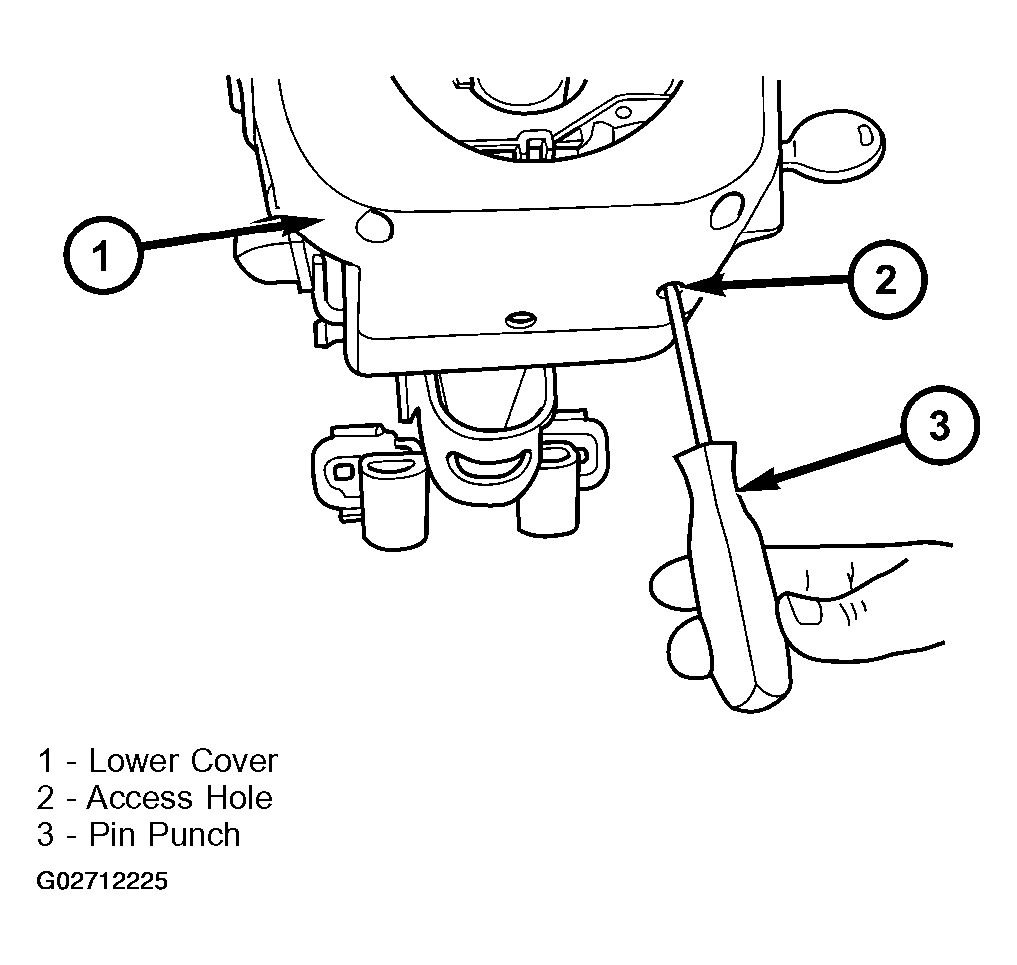

   Fig 2: Identifying Key Cylinder Release Hole

   Courtesy of DAIMLERCHRYSLER CORP.
5. Push the pin punch up while pulling key cylinder from steering column.
