A/C Compressor Clutch Harness Connector End View

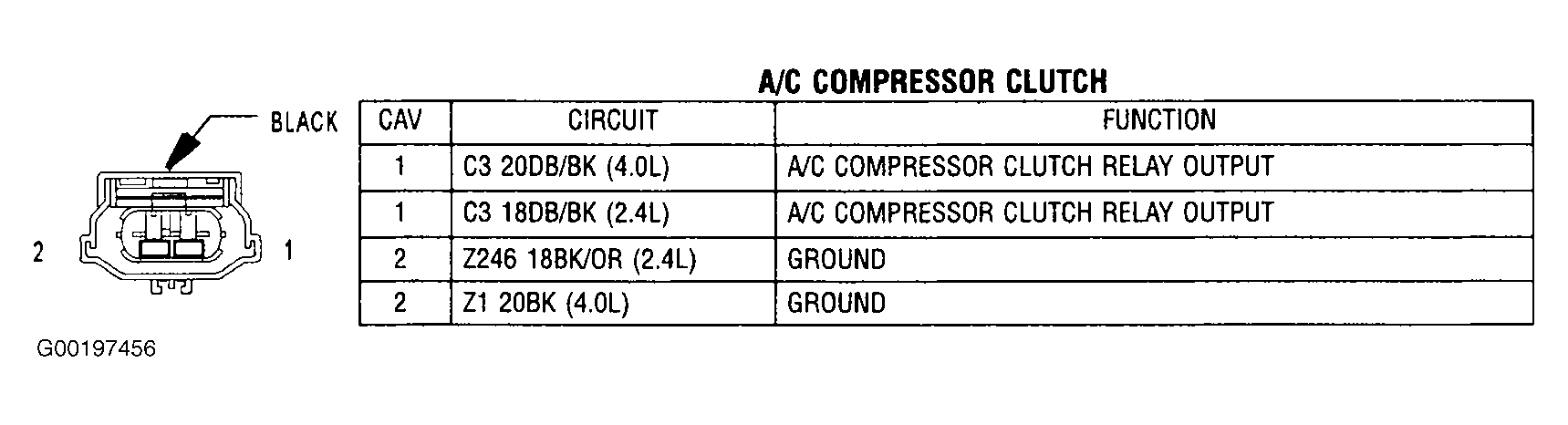

Fig 1: Identifying A/C Compressor Clutch Harness Connector

G00197456

Courtesy of CHRYSLER CORP.
