Ignition Coil Assembly Location (4.0L)

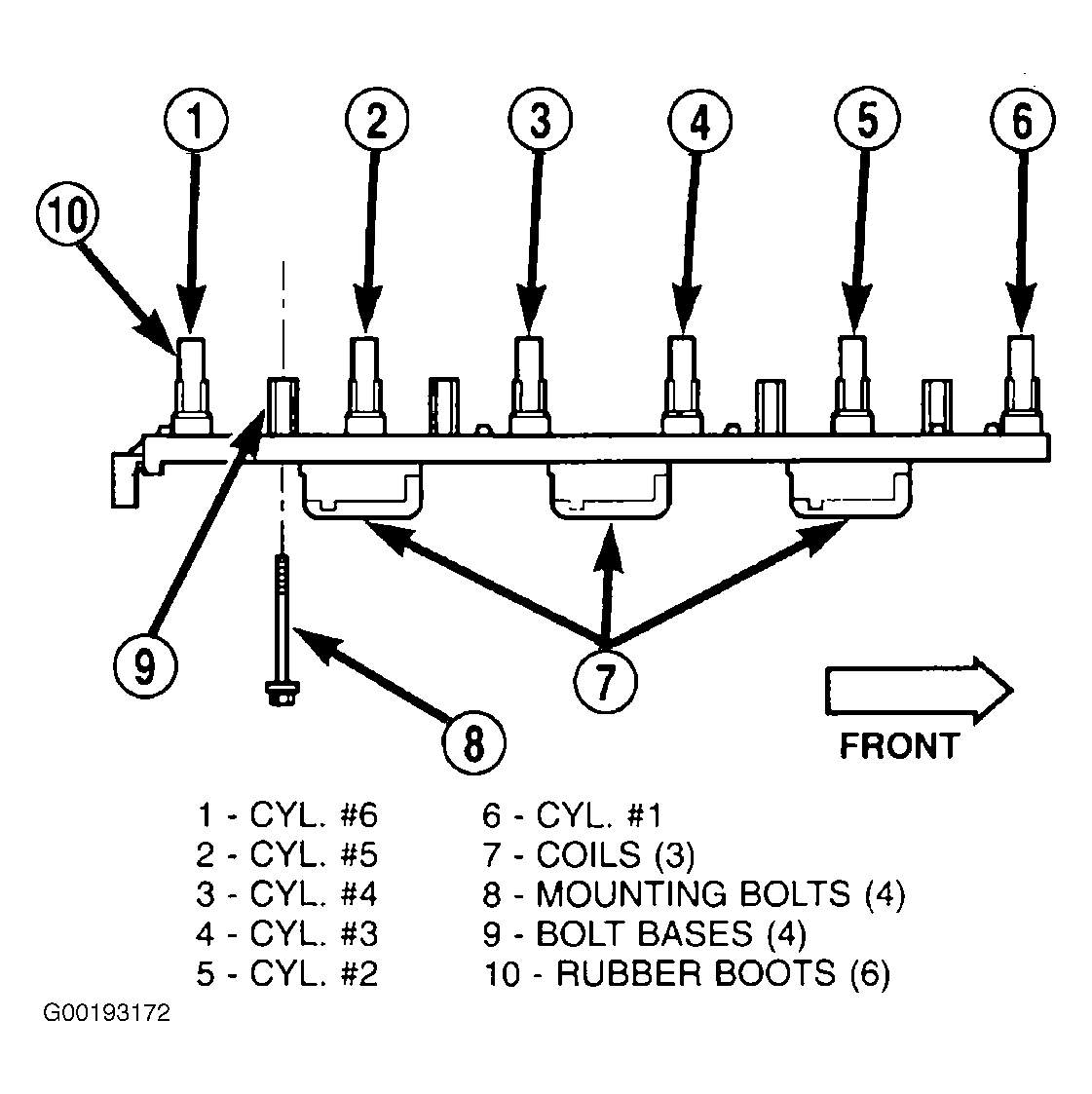

Fig 1: Identifying Ignition Coil Assembly (4.0L)

G00193172

Courtesy of DAIMLERCHRYSLER CORP.
